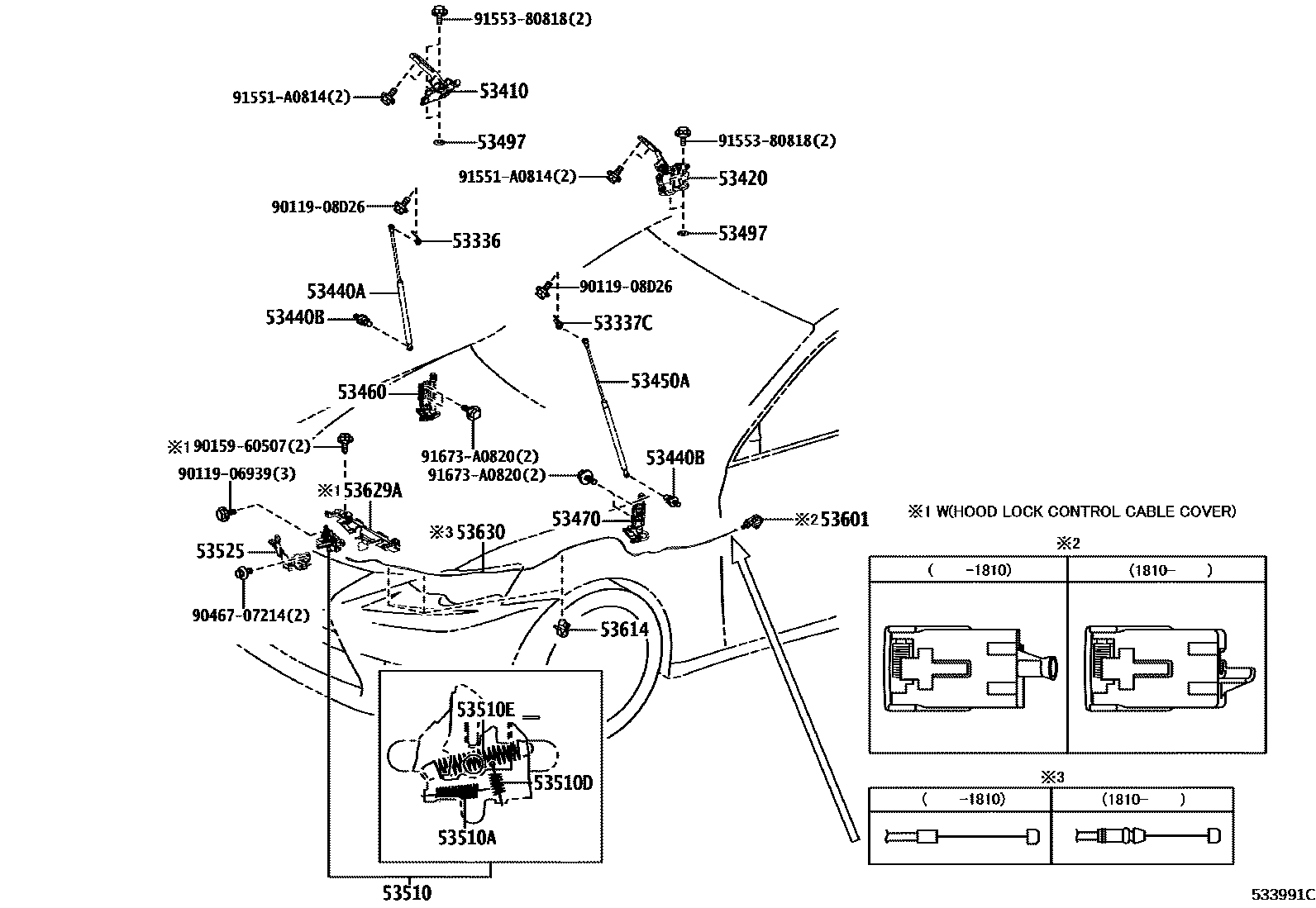

HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-53030iASE30,AVE30201304-201804

53337CBRACKET, HOOD STAY, LH

main53337-53020iAVE30,GSE30201304-201804

53410HINGE ASSY, HOOD, RH

main53410-53100iAVE30,GSE30201304-201804

53420HINGE ASSY, HOOD, LH

main53420-53100iAVE30,GSE30201304-201804

53440ASUPPORT ASSY, HOOD, RH

main53440-53020iAVE30,GSE30201304-201804

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051iAVE30;ASE30..LHD201304-201804

53450ASUPPORT ASSY, HOOD, LH

main53450-53010iASE30,AVE30201304-201804

53460LIFTER ASSY, POP UP HOOD, RH

main53460-53020iAVE30,GSE30201304-201603

sub53460-53021

main53460-53021iASE30..RHD201604-201804

sub53460-53022

53470LIFTER ASSY, POP UP HOOD, LH

main53470-53020iAVE30,GSE30201304-201603

sub53470-53021

main53470-53021iASE30,AVE30201604-201804

sub53470-53022

53497PAD, HOOD HINGE, NO.1

main53497-20070iAVE30,GSE30201304-201410

T=2.0

main53497-42010iAVE30,GSE30201304-201410

T=0.5

main53497-50020iASE30,AVE30201411-201804

T=1.0

53510LOCK ASSY, HOOD

main53510-53090iAVE30,GSE30..RHD201304-201508

main53510-53091iASE30,AVE30..RHD201508-201905

sub53510-53092

main53510-53092iAVE30..RHD201906

main53510-53100iAVE30,GSE30..LHD201304-201508

main53510-53110iASE30,AVE30..LHD201508-201906

sub53510-53111

main53510-53111iASE30,AVE30..LHD201907

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iASE30,AVE30201304-201610

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iASE30,AVE30201304-201610

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-14086iAVE30,GSE30201304-201610

WD=1.4,CW=15

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-53030iASE30,AVE30201304-201610

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30090-C0iAVE30..ECO201610-201701

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

sub53601-30090

main53601-30090-C0iAVE30,GSE30..LUX201304-201508

BLACK,TRIM0#,1#,2#

sub53601-30090

main53601-30090-C0iAVE30..ECO201508-201610

BLACK,TRIM0#,1#,2#,3#

sub53601-30090

main53601-30090-C1iAVE30..ECO201701-201810

BLACK,TRIM2#

sub53601-30090

main53601-30110-C0iASE30201810

BLACK,TRIM1#,2#,3#,4#

53614CLAMP, HOOD LOCK CONTROL CABLE

main90959-01369iASE30,AVE30201304-201610

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-53070iAVE30..LHD201610

FINLAND,NORWAY,SWEDEN SPEC

main53629-53070iASE30201805

main53629-53070iASE30..LHD201508-201610

ESTONIA OR LATVIA OR LITHUANIA SPEC

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-53060iAVE30,GSE30..RHD201304-201810

main53630-53061iAVE30..RHD201810

main53630-53070iASE30,AVE30..LHD201304-201810

main53630-53071iASE30,AVE30..LHD201810

9011906939

main90119-06939

9011908D26

main90119-08D26

9015960507

main90159-60507

9046707214

main90467-07214

91551A0814

main91551-A0814

9155380818

main91553-80818

91673A0820

main91673-A0820

26 parts on this diagram · 2 diagrams in section
