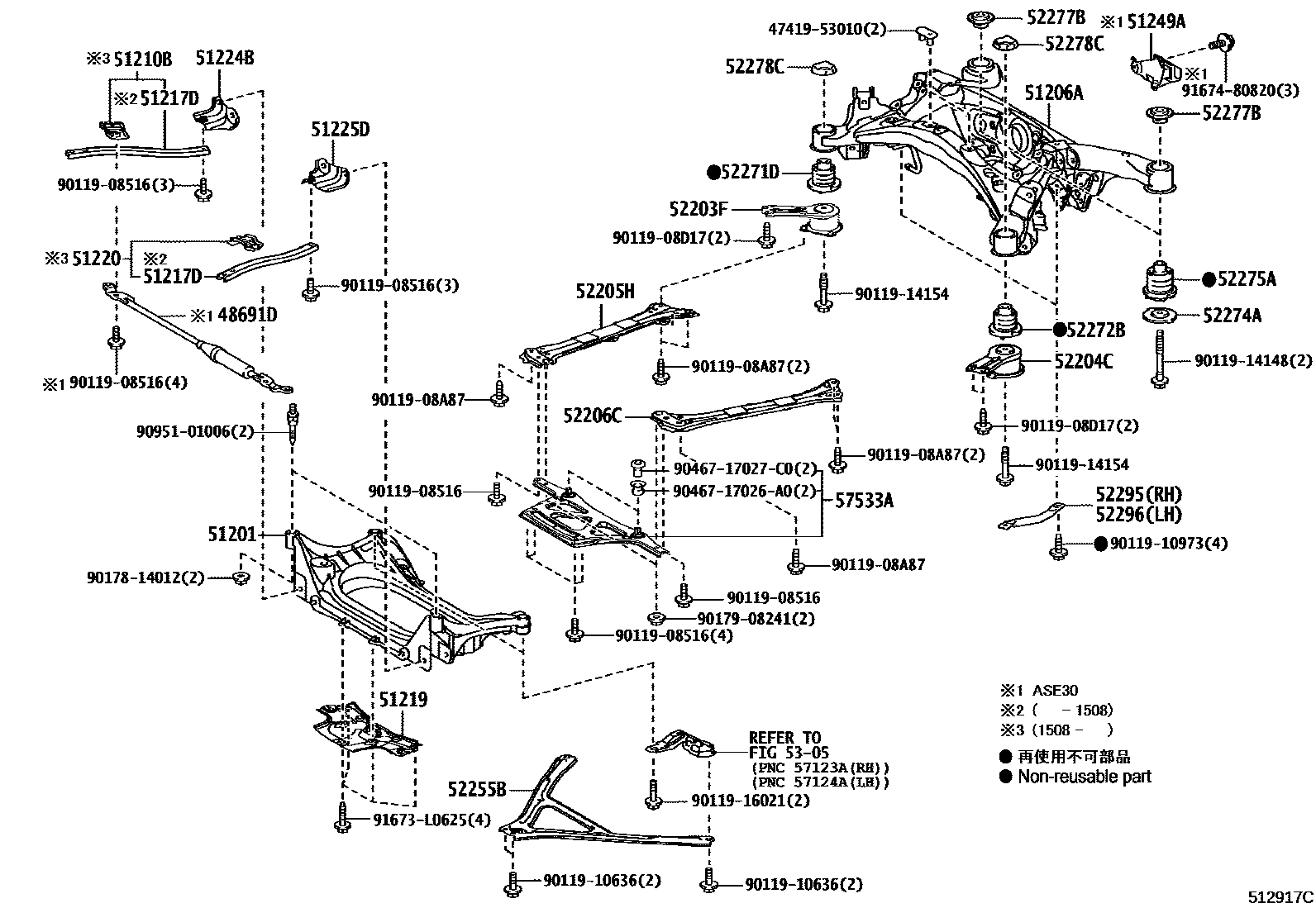

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER 0003 1UNDER COVER 0004 1UNDER COVER

48691DDAMPER, SUSPENSION TOWER

main48691-53010iASE30¥41,700201508-201512

sub48691-53011¥26,200

main48691-53011iASE30..RHD¥26,200201601-201804

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30140iAVE30;ASE30..LHD¥41,700201304-201804

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30130iGSE30¥112,000201304-201310

sub51206-30131¥111,000

main51206-30131iGSE30¥111,000201310-201508

main51206-30140iAVE30¥113,000201304-201310

sub51206-30141¥113,000

main51206-30141iAVE30¥113,000201310-201505

sub51206-30142¥56,600

main51206-30142iAVE30;ASE30..LHD¥56,600201506-201804

51210BCROSSMEMBER ASSY, FRAME, NO.1

main51210-53020iASE30..RHD¥1,850201508-201804

51217DMEMBER, FRONT SUSPENSION, NO.2 UPPER

main51217-53010iAVE30,GSE30¥3,880201304-201508

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30050iAVE30,GSE30¥4,520201304-201804

sub51219-30051¥4,110

51220CROSSMEMBER ASSY, FRAME, NO.2

main51210-53020iASE30,AVE30¥1,850201508-201804

51224BPLATE, FRONT SUSPENSION MENBER BRACE, RH

main51224-53020iAVE30,GSE30¥1,680201304-201804

51225DPLATE, FRONT SUSPENSION MENBER BRACE, LH

main51225-53020iAVE30,GSE30¥1,680201304-201804

51249ADAMPER, REAR SUSPENSION MEMBER

main51249-30040iASE30..RHD¥6,200201508-201804

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-30080iAVE30,GSE30¥3,380201304-201804

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52204-30060iAVE30,GSE30¥3,380201304-201804

52205HCUSHION SUB-ASSY, BODY MOUNTING, REAR RH

main52205-30250iAVE30,GSE30¥4,550201304-201804

52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH

main52206-30070iAVE30,GSE30¥4,550201304-201804

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-30050iAVE30,GSE30¥8,900201304-201804

sub52255-30051¥6,600

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30150iAVE30,GSE30¥4,640201304-201403

sub52271-30151¥2,920

main52271-30151iAVE30,GSE30¥2,920201403-201804

52272BCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LOWER

main52272-30010iAVE30,GSE30¥4,370201304-201403

sub52272-30011¥2,750

main52272-30011iAVE30,GSE30¥2,750201403-201804

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-30010iAVE30,GSE30¥1,290201304-201804

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30160iAVE30,GSE30¥5,400201304-201403

sub52275-30161¥3,380

main52275-30161iAVE30,GSE30¥3,380201403-201804

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30090iAVE30,GSE30¥1,170201304-201804

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30090iAVE30,GSE30¥1,010201304-201403

sub52278-30091¥630

main52278-30091iAVE30,GSE30¥630201403-201804

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30040iAVE30,GSE30¥1,800201304-201709

sub52295-30041¥1,350

main52295-30041iASE30..RHD¥1,350201710-201804

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30040iAVE30,GSE30¥1,800201304-201709

sub52295-30041¥1,350

main52295-30041iASE30..RHD¥1,350201710-201804

5305

57533ABRACE, FRONT FLOOR, CENTER

main57533-53020iAVE30,GSE30¥4,960201304-201804

4741953010PLUG, HOLE(FOR FRONT BRAKE)

main47419-53010¥70

9011908516

main90119-08516¥120

9011908A87

main90119-08A87¥100

9011908D17

main90119-08D17¥100

9011910636

main90119-10636¥130

9011910973

main90119-10973¥100

9011914148

main90119-14148¥490

9011914154

main90119-14154¥360

9011916021

main90119-16021¥540

9017814012

main90178-14012¥210

9017908241

main90179-08241¥80

9046717026A0

main90467-17026A0

9046717027C0

main90467-17027C0

9095101006

main90951-01006¥310

91673L0625

main91673-L0625¥80

9167480820

main91674-80820¥80

41 parts on this diagram · 4 diagrams in section
