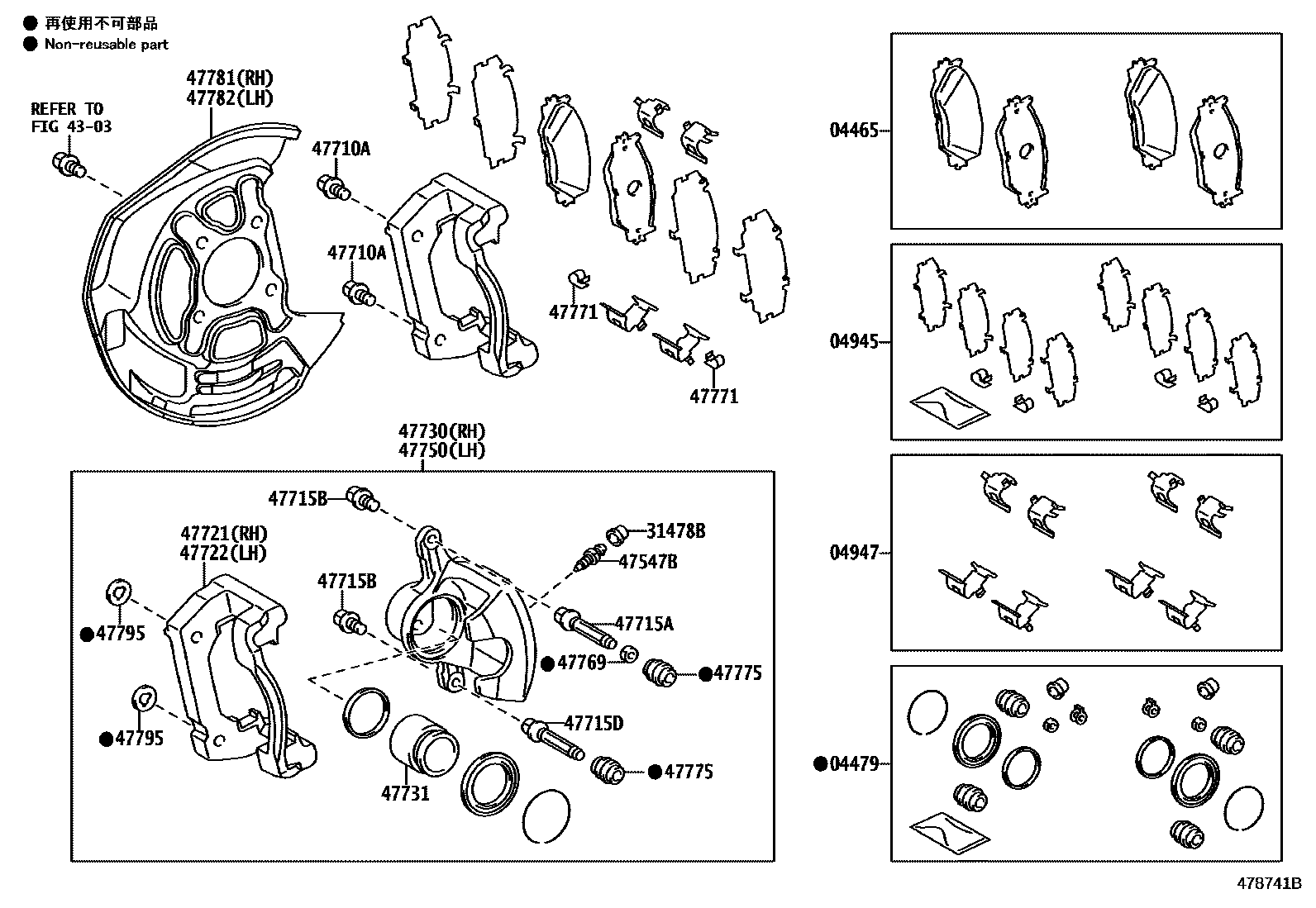

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-30500iASE30¥11,000201508-202009

MARK TEXTAR T4146

main04465-53040iAVE30,GSE30¥11,600201304-202009

MARK TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-22040iASE30¥1,800201508-201804

main04478-30250iAVE30¥3,420201304-201610

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30350iASE30¥1,310201508-201610

main04945-53050iAVE30,GSE30¥2,950201304-201610

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iASE30¥980201508-201804

main04947-53020iAVE30,GSE30¥2,760201304-201610

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iASE30..RHD¥190201508-201804

main31478-30010iAVE30,GSE30¥160201304-201610

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iAVE30,GSE30¥180201304-201610

main47547-50010iASE30..LHD¥190201508-201804

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iAVE30,GSE30¥190201304-201804

*12-1.25PX45-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iAVE30¥620201304-201905

main47715-50010iAVE30¥460201905

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iAVE30,GSE30¥90201304-201610

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iAVE30,GSE30¥360201304-201610

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-53060iAVE30,GSE30¥7,000201304-201610

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-53060iAVE30¥7,000201304-201610

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iASE30..RHD¥33,100201508-201804

main47730-53060iAVE30¥39,400201304-201610

47731PISTON, FRONT DISC BRAKE

main47731-12A10iAVE30¥1,250201905

main47731-50070iASE30¥850201508-201610

main47731-53060iAVE30¥2,370201304-201905

sub47731-12A10¥1,250

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iASE30..LHD¥33,100201508-201804

main47750-53060iAVE30¥39,400201304-201610

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iAVE30,GSE30¥50201304-201610

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33340iAVE30,GSE30¥120201304-201610

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010iAVE30,GSE30¥580201304-201610

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22200iASE30¥1,820201508-201804

main47781-30220iAVE30¥1,820201304-201610

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22200iASE30..RHD¥1,820201508-201804

main47782-30220iAVE30,GSE30¥1,820201304-201610

47795PLATE, FRONT DISC BRAKE CALIPER, NO.1

main47795-30520iAVE30¥240201304-201610

22 parts on this diagram · 2 diagrams in section
