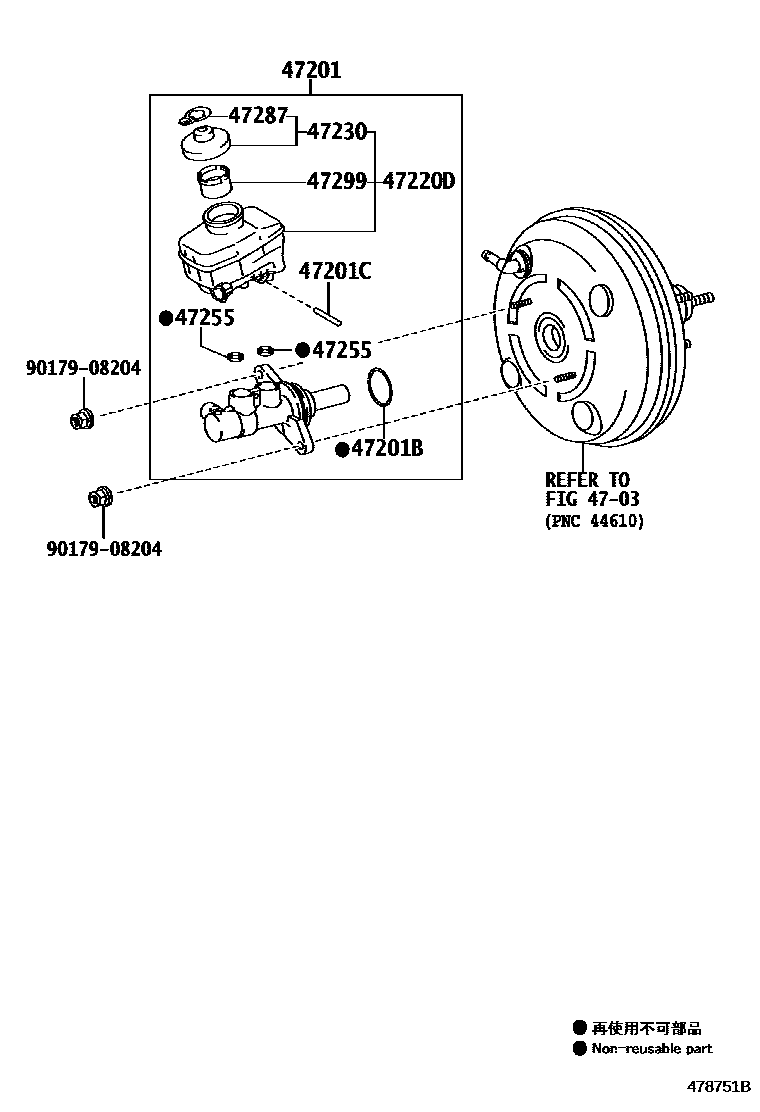

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30792iGSE30..RHD¥26,900201304-201508

main47201-30822iGSE30..LHD201304-201508

main47201-30830iAVE30..RHD¥20,300201304-201610

main47201-30840iAVE30..LHD201304-201610

main47201-30870iASE30..LHD201610

main47201-30880iASE30..RHD¥22,400201610-201804

main47201-53290iASE30..LHD201508-201610

main47201-53300iASE30..RHD¥26,900201508-201610

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASE30¥200201304-201804

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAVE30;ASE30..LHD¥130201304-201804

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-30210iASE30..RHD¥6,000201304-201804

main47220-30220iASE30..LHD201304-201610

main47220-30230iAVE30..RHD¥6,000201304-201610

main47220-30240iAVE30..LHD201304-201610

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iAVE30,GSE30¥530201304-201804

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iAVE30,GSE30¥360201304-201804

sub90016-AT001¥360

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iASE30..RHD¥480201610-201804

main47287-20010iASE30,AVE30¥130201304-201610

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iASE30..RHD¥140201304-201804

main47299-30190iAVE30¥470201304-201610

9017908204

main90179-08204¥140

10 parts on this diagram · 4 diagrams in section
