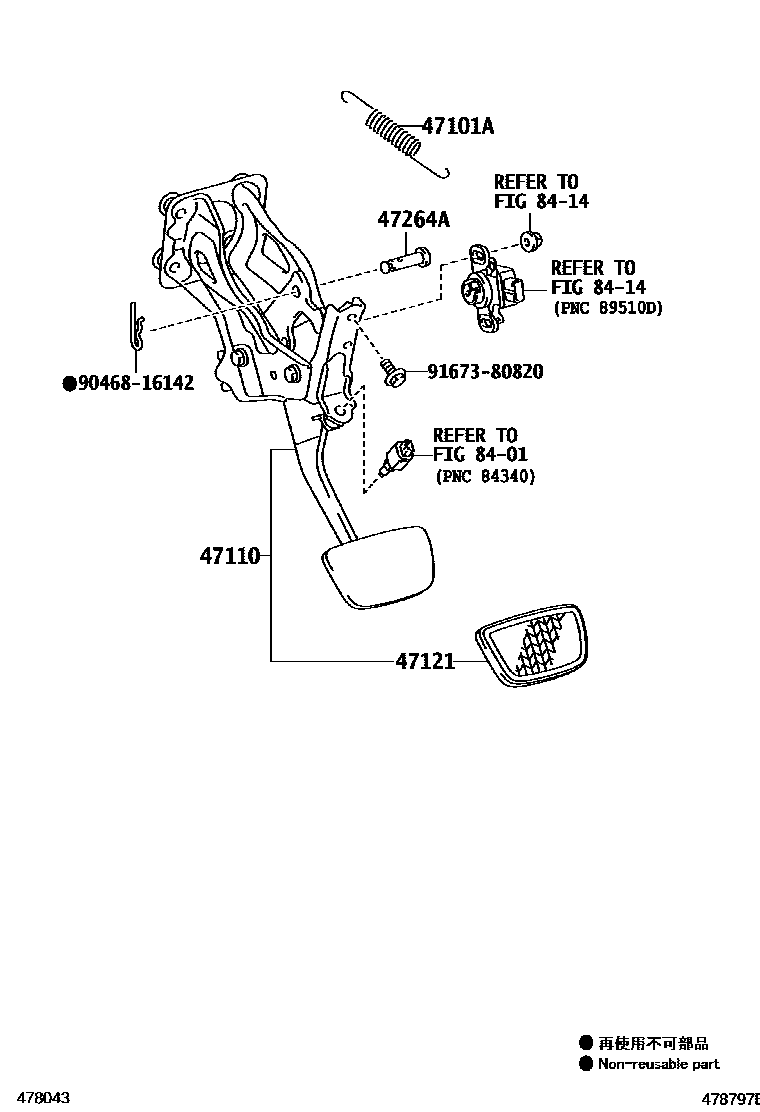

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12045iASE30,AVE30201304-201804

47110SUPPORT ASSY, BRAKE PEDAL

main47110-24100iASE30..RHD201508-201804

main47110-24120iAVE30..RHD201508-201610

sub47110-24330

main47110-24140iASE30..LHD201508-201610

sub47110-24250

main47110-30500iAVE30..LHD201508-201610

sub47110-24310

main47110-30520iGSE30..LHD201304-201508

sub47110-24140

main47110-30560iGSE30..RHD201304-201508

sub47110-24100

main47110-30580iAVE30..LHD201304-201508

sub47110-30500

main47110-30600iAVE30..RHD201304-201508

sub47110-24120

47121PAD, BRAKE PEDAL

main47121-30080iASE30,AVE30201304-201610

47264APIN(FOR PUSH ROD)

main90249-06180iASE30201304-201804

main90249-10199iAVE30201304-201610

8401

8414

9046816142

main90468-16142

9167380820

main91673-80820

8 parts on this diagram · 4 diagrams in section
