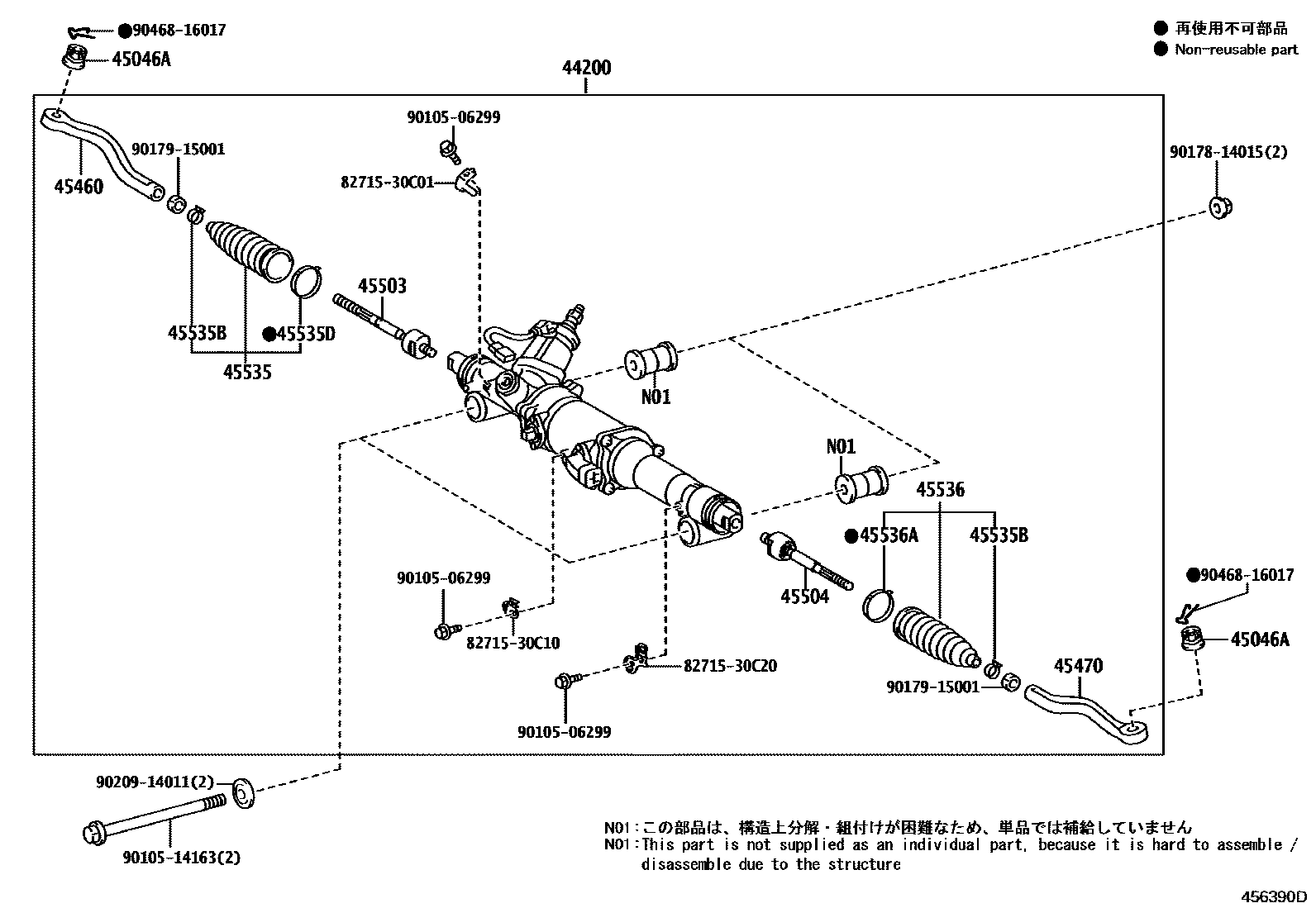

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-53230iASE30..RHD201304-201804

main44200-53240iAVE30,GSE30..LHD201304-201610

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iAVE30,GSE30201304-201804

45460ROD ASSY, TIE, RH

main45463-30130iAVE30,GSE30201304-201804

45470ROD ASSY, TIE, LH

main45464-30060iAVE30,GSE30201304-201804

45503END SUB-ASSY, STEERING RACK

main45503-53010iAVE30,GSE30201304-201804

45504END SUB-ASSY, STEERING RACK, NO.2

main45503-53010iASE30,AVE30201304-201804

45535BOOT, STEERING RACK, NO.1

main45535-59045iAVE30,GSE30201304-201312

sub45535-59065

main45535-59065iAVE30,GSE30201401-201804

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iAVE30,GSE30201304-201804

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-50010iAVE30,GSE30201304-201804

45536BOOT, STEERING RACK, NO.2

main45535-59045iAVE30,GSE30201304-201312

sub45535-59065

main45535-59065iAVE30,GSE30201401-201804

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-50010iAVE30,GSE30201304-201804

8271530C01BRACKET,WIRING HARNESS CLAMP

main82715-30C01

8271530C10BRACKET,WIRING HARNESS CLAMP

main82715-30C10

8271530C20BRACKET,WIRING HARNESS CLAMP

main82715-30C20

9010506299

main90105-06299

9010514163

main90105-14163

9017814015

main90178-14015

9017915001

main90179-15001

9020914011

main90209-14011

9046816017

main90468-16017

20 parts on this diagram · 2 diagrams in section
