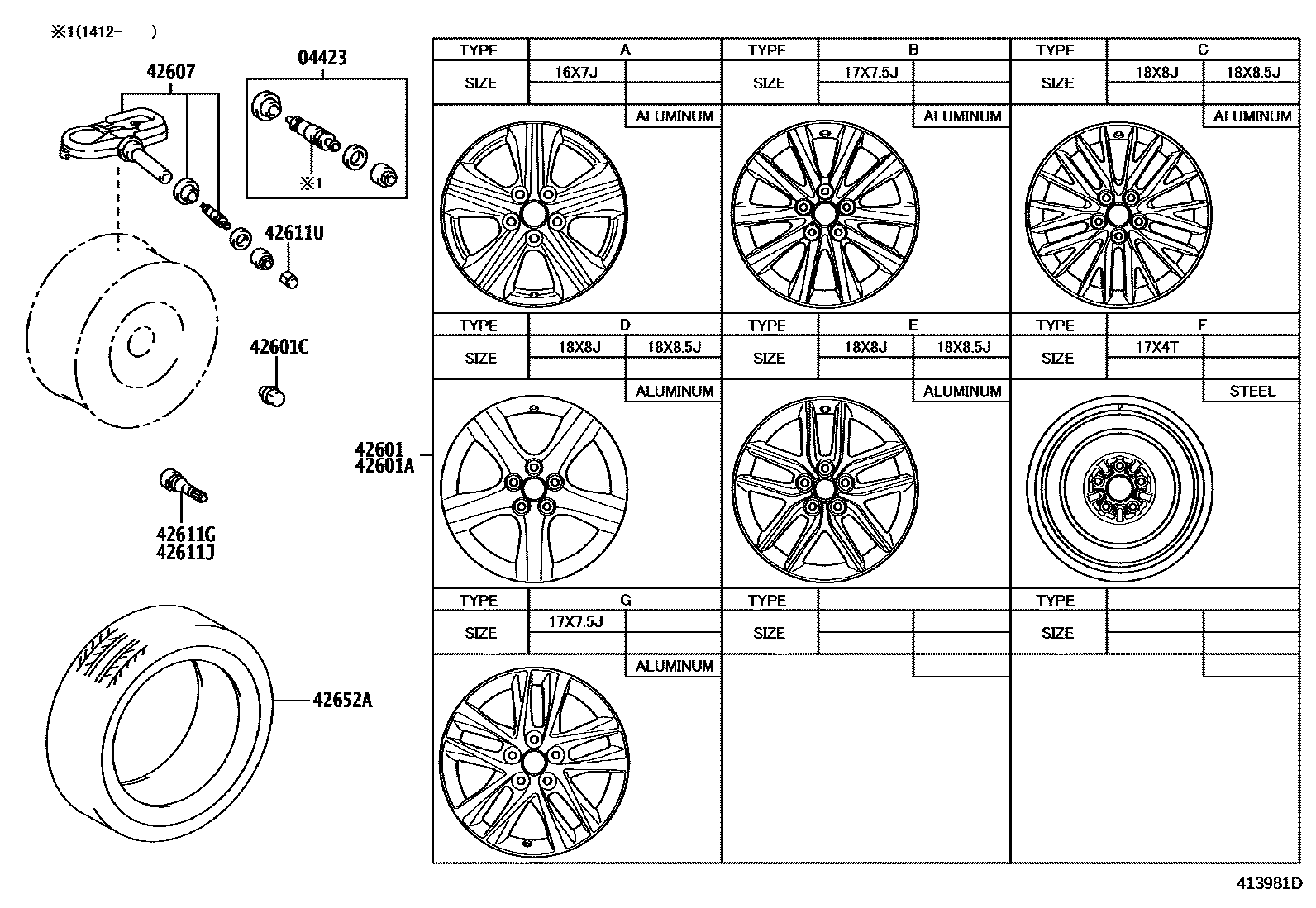

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
16X7J, #,TYPE A:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-225/45R17 SUMMER TIRE 7.5J,TYPE B:REFER ILLUST.
sub42611-53432
17X7.5J, #,TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J,TYPE B:REFER ILLUST.
sub42611-53432
17X7.5J, #,TYPE G:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-225/45R17, SUMMER TIRE, 7.5J,TYPE G:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J,TYPE G:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE F:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42652ATIRE (FOR SPARE)
9 parts on this diagram · 2 diagrams in section
