EXTENSION HOUSING (ATM)

35015LBEARING, RADIAL BALL(FOR TRANSMISSION CASE ADAPTER)

main90363-34006iGSE30201304

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-30260iGSE30201304

35108ERING, HOLE SNAP (FOR ATM EXTENSION HOUSING)

main90521-66006iGSE30201304

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40034iGSE30201304

sub90311-40045

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30020iGSE30201304

35188BRETAINER, EXTENSION HOUSING BUSH

main35188-35020iGSE30201304

9011910232

main90119-10232

9011910233

main90119-10233

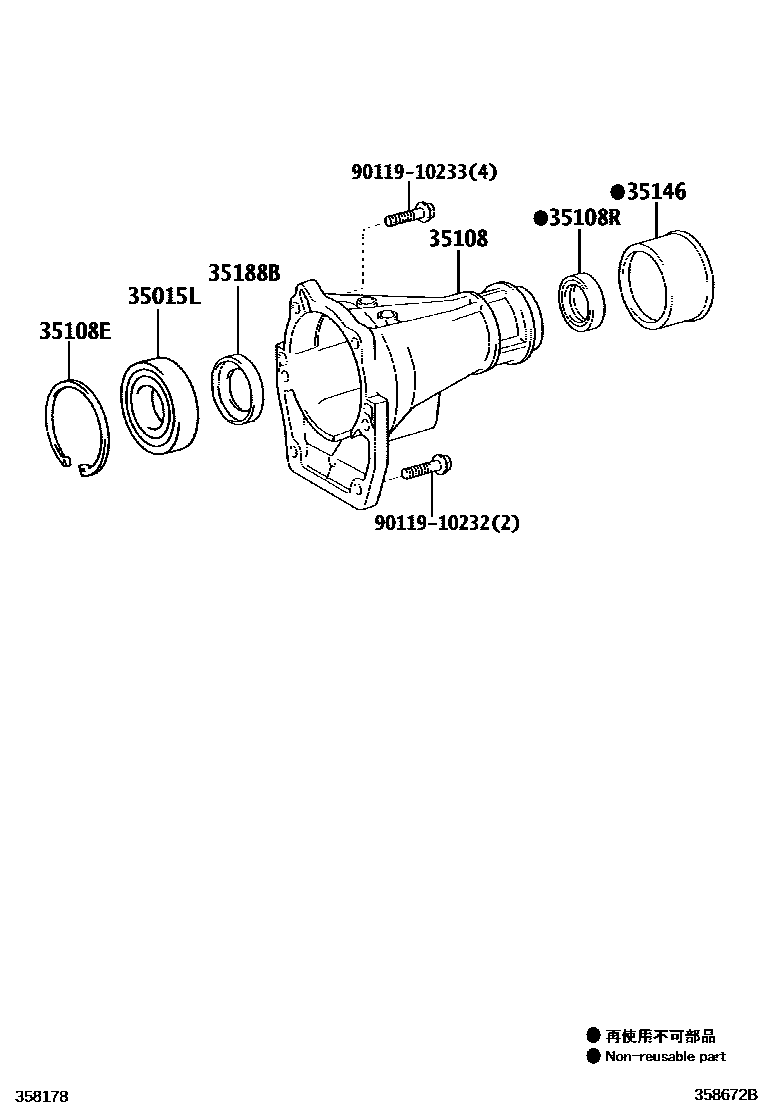

8 parts on this diagram · 1 diagram in section
