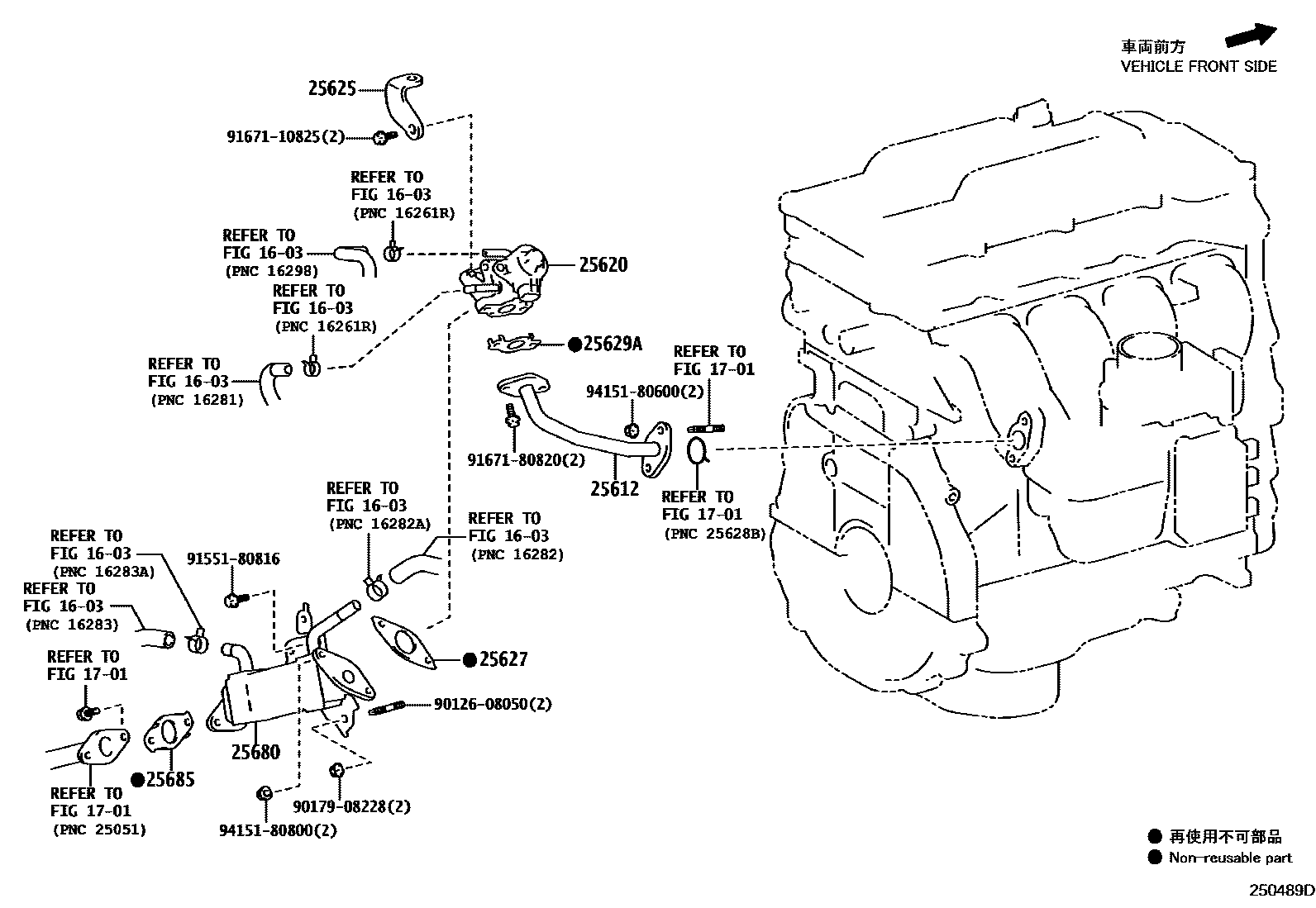

EXHAUST GAS RECIRCULATION SYSTEM
1603
1701
25612PIPE, EGR, NO.2
25620VALVE ASSY, EGR
EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO5+,WITH(ON BOARD DIAGNOSIS)
BOSNIA HERCEGOVINA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO5+,WITH(ON BOARD DIAGNOSIS)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
25625BRACKET, EGR VALVE
EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO5+,WITH(ON BOARD DIAGNOSIS)
BOSNIA HERCEGOVINA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO5+,WITH(ON BOARD DIAGNOSIS)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
25627GASKET, EGR VALVE
EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO5+,WITH(ON BOARD DIAGNOSIS)
BOSNIA HERCEGOVINA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO5+,WITH(ON BOARD DIAGNOSIS)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
25629AGASKET, EGR PIPE, NO.2
25680COOLER ASSY, EGR
EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO5+,WITH(ON BOARD DIAGNOSIS)
BOSNIA HERCEGOVINA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO5+,WITH(ON BOARD DIAGNOSIS)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
25685GASKET, EGR COOLER, NO.1
9012608050
main90126-08050
9017908228
main90179-08228
9155180816
main91551-80816
9167110825
main91671-10825
9167180820
main91671-80820
9415180600
main94151-80600
9415180800
main94151-80800
16 parts on this diagram · 1 diagram in section
