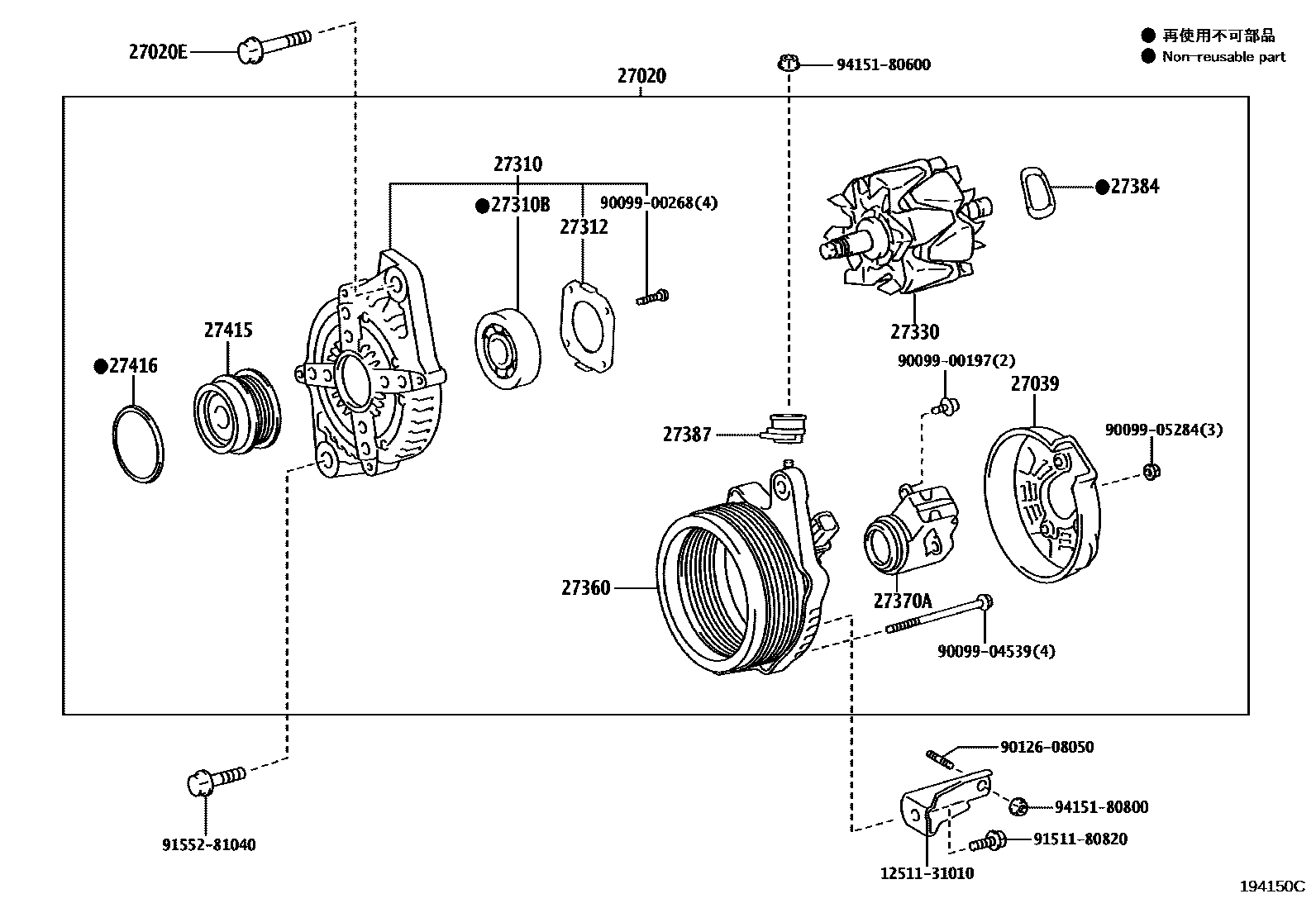

ALTERNATOR

0001 112V 150A 0002 112V 180A

27020ALTERNATOR ASSY

main27060-31212i4GRFSE..GSE30201304-201508

12V 150A

main27060-36130i8ARFTS..ASE30201508-201804

12V 180A

27020EBOLT(FOR ALTERNATOR)

main91552-81070i4GRFSE..GSE30201304-201508

27039COVER, ALTERNATOR REAR END

main27039-31390i4GRFSE..GSE30201304-201508

main27039-38150i8ARFTS..ASE30201508-201804

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31220i4GRFSE..GSE30201304-201508

main27310-36210i8ARFTS..ASE30..LHD201508-201804

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i4GRFSE..GSE30201304-201508

main90099-10226i8ARFTS..ASE30201508-201804

27312PLATE, RETAINER

main27312-42010i8ARFTS..ASE30..RHD201508-201804

main27312-72100i4GRFSE..GSE30201304-201508

27330ROTOR ASSY, ALTERNATOR

main27330-38140i8ARFTS..ASE30..LHD201508-201804

main27330-58460i4GRFSE..GSE30201304-201508

27360COIL ASSY, ALTERNATOR

main27360-31420i4GRFSE..GSE30201304-201508

main27360-36210i8ARFTS..ASE30201508-201804

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-27060i8ARFTS..ASE30..LHD201508-201804

main27370-31220i4GRFSE..GSE30201304-201508

27384WASHER

main27384-38130i8ARFTS..ASE30201508-201804

main27384-50030i4GRFSE..GSE30201304-201508

27387INSULATOR, TERMINAL

main27387-20130i4GRFSE..GSE30201304-201508

main27387-38130i8ARFTS..ASE30201508-201804

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W130i4GRFSE..GSE30201304-201306

sub27415-0W131

main27415-0W131i4GRFSE..GSE30201307-201508

main27415-0W230i8ARFTS..ASE30201508-201804

27416CAP, ALTERNATOR PULLEY

main27416-0W050i4GRFSE..GSE30201304-201804

1251131010BRACKET, ALTERNATOR, NO.1

main12511-31010

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9012608050

main90126-08050

9151180820

main91511-80820

9155281040

main91552-81040

9415180600

main94151-80600

9415180800

main94151-80800

23 parts on this diagram · 2 diagrams in section
