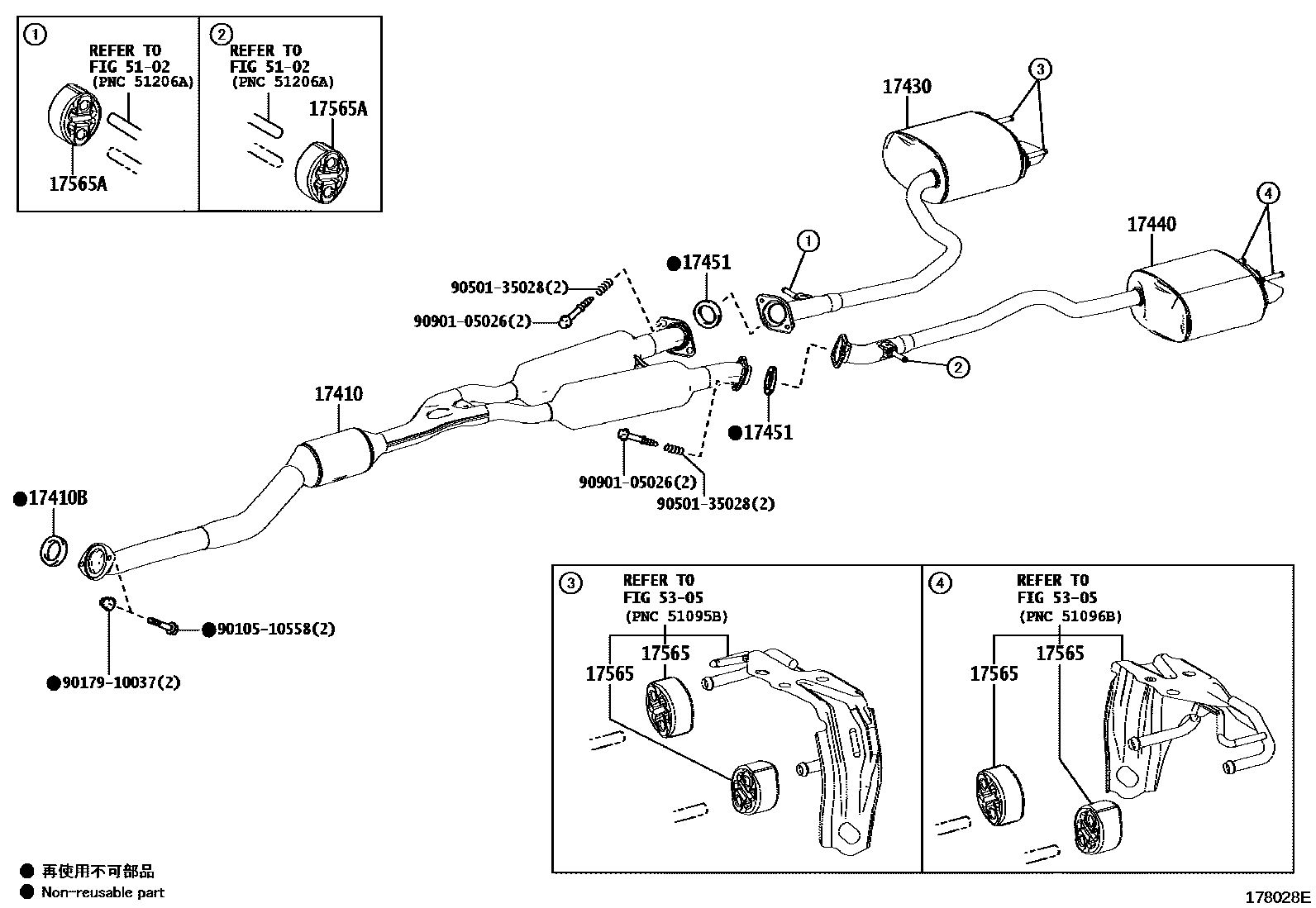

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-31G20i4GRFSE..GSE30¥182,000201304-201508

*114=TOYOTA/RA4/Y

main17410-36370i2ARFSE..AVE30¥86,400201304-201610

*114=TOYOTA/UE6/Y

main17410-36500i8ARFTS..ASE30..LHD¥86,400201508-201804

17410BGASKET, EXHAUST PIPE

main90917-06078i2ARFSE..AVE30¥340201304-201610

main90917-06090i8ARFTS..ASE30..RHD¥590201508-201804

17430PIPE ASSY, EXHAUST, TAIL

main17430-31D00i4GRFSE..GSE30¥37,800201304-201508

main17430-36230i8ARFTS..ASE30..LHD¥23,800201610-201804

main17430-36250i2ARFSE..AVE30¥31,500201304-201610

main17430-36450i8ARFTS..ASE30¥23,800201508-201610

17440PIPE, EXHAUST TAIL, LH

main17440-31180i4GRFSE..GSE30¥46,400201304-201508

main17440-36020i2ARFSE..AVE30¥38,600201304-201610

main17440-36090i8ARFTS..ASE30¥29,200201508-201610

main17440-36110i8ARFTS..ASE30..RHD¥29,200201610-201804

17451GASKET, EXHAUST PIPE

main17451-28032i8ARFTS..ASE30..RHD¥1,360201304-201804

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040i2ARFSE,4GRFSE..AVE30,GSE30¥670201304-201804

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i2ARFSE,4GRFSE..AVE30,GSE30¥670201304-201804

5102

5305

9010510558

main90105-10558¥140

9017910037

main90179-10037¥360

9050135028

main90501-35028¥550

9090105026

main90901-05026¥310

13 parts on this diagram · 4 diagrams in section
