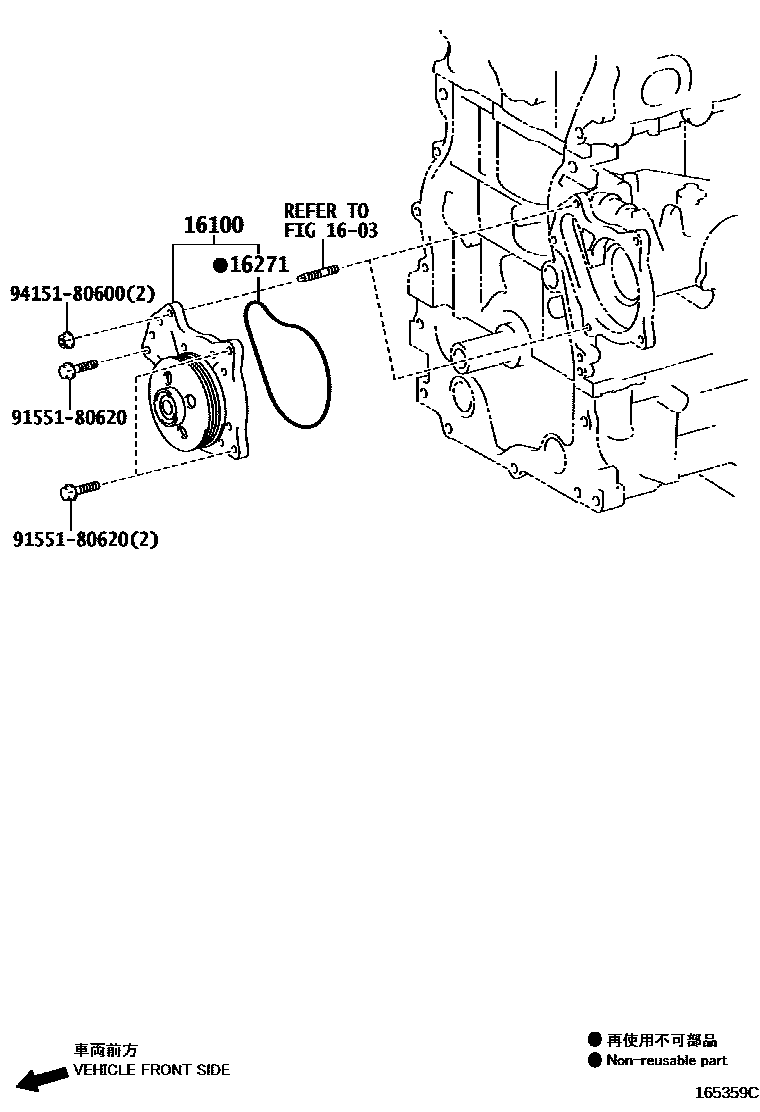

WATER PUMP

0001 1 0002 1 0003 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39436i4GRFSE..GSE30¥13,400201304-201508

main16100-39575i2ARFSE..AVE30¥9,000201304-201610

main16100-39595i8ARFTS..ASE30..RHD¥9,500201508-201804

16271GASKET, WATER PUMP

main16271-31020i4GRFSE..GSE30¥2,320201304-201508

main16271-36030i2ARFSE..AVE30¥200201304-201610

main16271-36040i8ARFTS..ASE30..RHD¥340201508-201804

9155180620

main91551-80620¥60

9415180600

main94151-80600¥60

5 parts on this diagram · 3 diagrams in section
