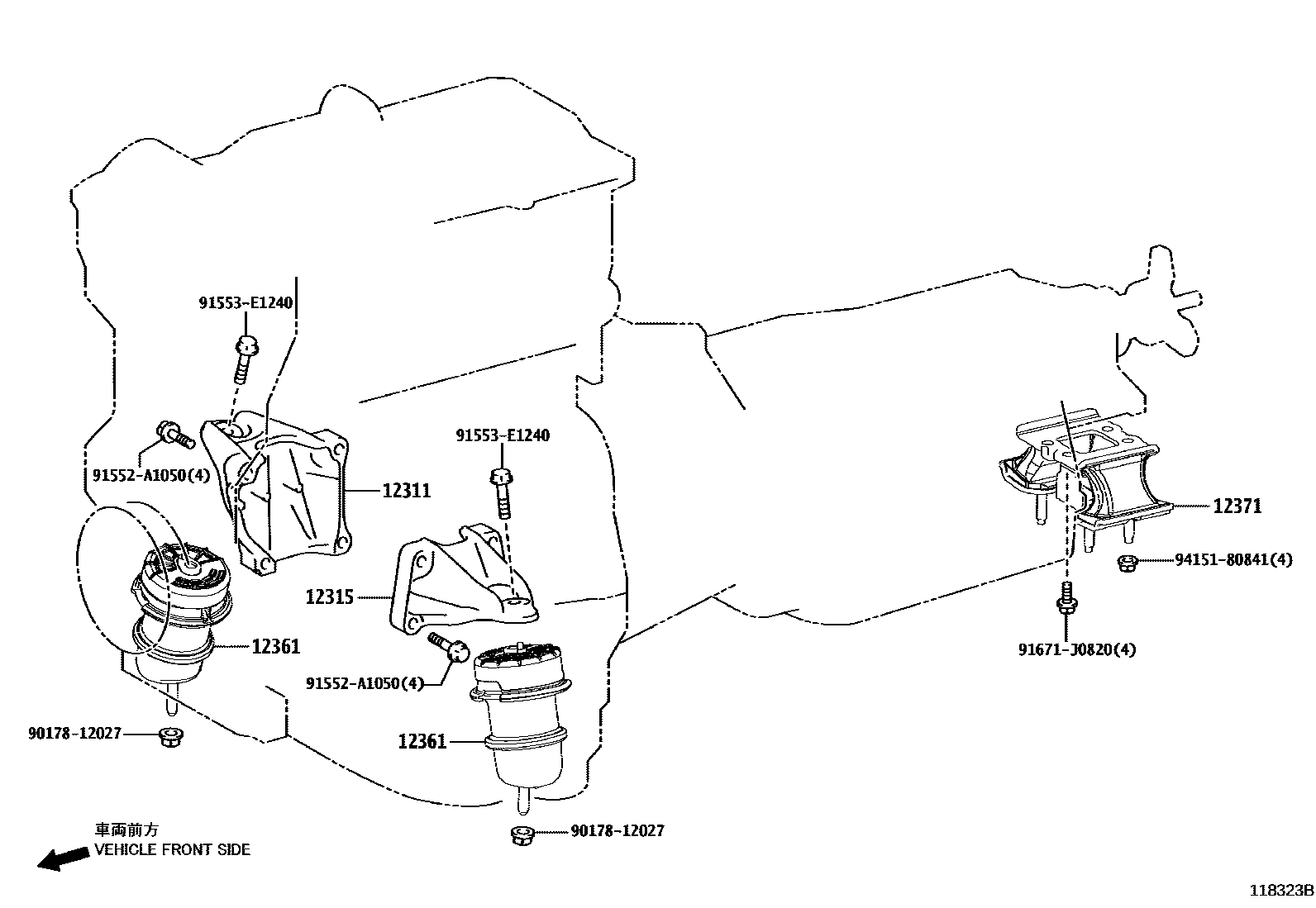

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31040i4GRFSE..GSE30201304-201508

main12311-36100i2ARFSE..AVE30201304-201610

main12311-36130i8ARFTS..ASE30..RHD201508-201804

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-31010i4GRFSE..GSE30201304-201508

main12315-36020i2ARFSE..AVE30201304-201610

main12315-36040i8ARFTS..ASE30..RHD201508-201804

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31360i4GRFSE..GSE30201304-201508

main12361-36140i2ARFSE..AVE30201304-201705

sub12361-36141

main12361-36141i2ARFSE..AVE30201706

main12361-36220i8ARFTS..ASE30..RHD201508-201804

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31270i2ARFSE..AVE30201304-202004

sub12371-36280

main12371-36210i8ARFTS..ASE30201508-202004

sub12371-36270

main12371-36270i8ARFTS..ASE30202005

main12371-36280i2ARFSE..AVE30202005

9017812027

main90178-12027

91552A1050

main91552-A1050

91553E1240

main91553-E1240

91671J0820

main91671-J0820

9415180841

main94151-80841

9 parts on this diagram · 3 diagrams in section
