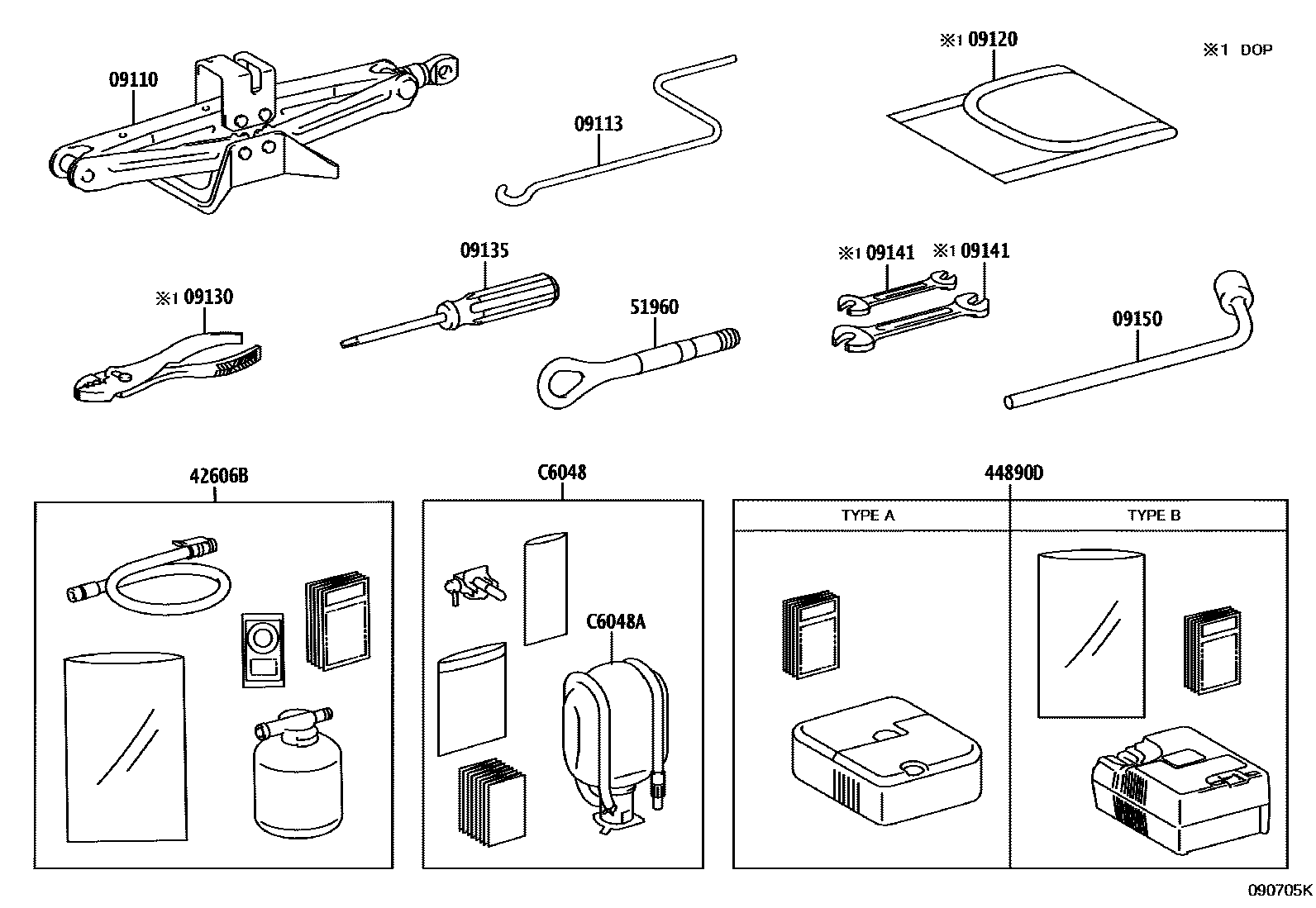

STANDARD TOOL

09110JACK ASSY

main09111-30160i¥5,900201304-201512

JACK-WITHOUT

sub09111-30181¥5,900

main09111-30180i¥5,900201601-202009

JACK-WITHOUT

sub09111-30181¥5,900

09113HANDLE, JACK

main09113-13040i¥540201304-201804

09120BAG, TOOL

main09120-24020¥390

09130PLIERS

main09130-50040¥590

09135DRIVER, SCREW

main99915-10700i¥460201304-201804

09141SPANNER

main09141-60010¥350

main09141-60020¥580

09150WRENCH, HUB NUT BOX

main09150-26010i¥920201304-201804

42606BREPAIR KIT, TUBELESS TIRE

main42606-30011i¥3,600201909-202009

BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J

sub42606-42080¥3,600

main42606-30011i¥3,600201909-202009

TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J

sub42606-42080¥3,600

44890DCOMPRESSOR ASSY, AIR

main44890-52021i¥7,500201304-201909

TYPE A:REFER ILLUST.

sub44890-52022¥7,500

main44890-52021i¥7,500201304-201610

TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J,TYPE A:REFER ILLUST.

sub44890-52022¥7,500

main44890-52021i¥7,500201304-201610

SPARE TIRE-WITHOUT(REPAIR KIT ONLY),TYPE A:REFER ILLUST.

sub44890-52022¥7,500

main44890-52021i¥7,500201304-201610

ICELAND SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J,TYPE A:REFER ILLUST.

sub44890-52022¥7,500

main44890-52021i¥7,500201304-201610

CANARY ISLANDS SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J,TYPE A:REFER ILLUST.

sub44890-52022¥7,500

main44890-52021i¥7,500201304-201610

BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J,TYPE A:REFERILLUST.

sub44890-52022¥7,500

main44890-52021i¥7,500201508-201610

ICELAND SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),TYPE A:REFER ILLUST.

sub44890-52022¥7,500

main44890-52021i¥7,500201610-201909

BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J,TYPE A:REFER ILLUST.

sub44890-52022¥7,500

main44890-52021i¥7,500201610-201909

TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J,TYPE A:REFER ILLUST.

sub44890-52022¥7,500

main44890-53010i¥7,500201909-202009

TYPE B:REFER ILLUST.

sub44890-30030¥7,500

main44890-53010i¥7,500201909-202009

BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J,TYPE B:REFER ILLUST.

sub44890-30030¥7,500

main44890-53010i¥7,500201909-202009

TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J,TYPE B:REFER ILLUST.

sub44890-30030¥7,500

51960HOOK ASSY, FRONT

main51961-30020i¥1,370201304-201804

C6048REPAIR SET, TIRE

main42683-47021i¥3,600201304-201501

TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

main42683-47021i¥3,600201304-201501

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

main42683-53010i201501-201610

TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

main42683-53010i201501-201610

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

main42683-53010i201508-201610

ICELAND SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

main42683-53010i201508-201610

CANARY ISLANDS SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

main42683-53010i201508-201610

BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

main42683-53010i201610-201909

BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J

main42683-53010i201610-201909

TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J

C6048ASEALANT, REPAIR TIRE

mainC604847051i201304-201501

TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

mainC604847051i201304-201501

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

mainC604847051i201304-201501

ICELAND SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

mainC604847051i201304-201501

CANARY ISLANDS SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

mainC604847051i201304-201501

BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

mainC604853010i201501-201610

TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

mainC604853010i201501-201610

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

mainC604853010i201501-201508

CYPRUS SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

mainC604853010i201501-201508

ESTONIA OR LATVIA OR LITHUANIA SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

mainC604853010i201501-201610

ICELAND SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

mainC604853010i201501-201610

CANARY ISLANDS SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

mainC604853010i201501-201610

BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-225/45R17 RUNFLAT TIRE 7.5J

mainC604853010i201610-201909

BOSNIA HERCEGOVINA SPEC&TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J

mainC604853010i201610-201909

TIRE & DISC WHEEL-225/45R17, RUNFLAT TIRE, 7.5J

12 parts on this diagram · 2 diagrams in section
