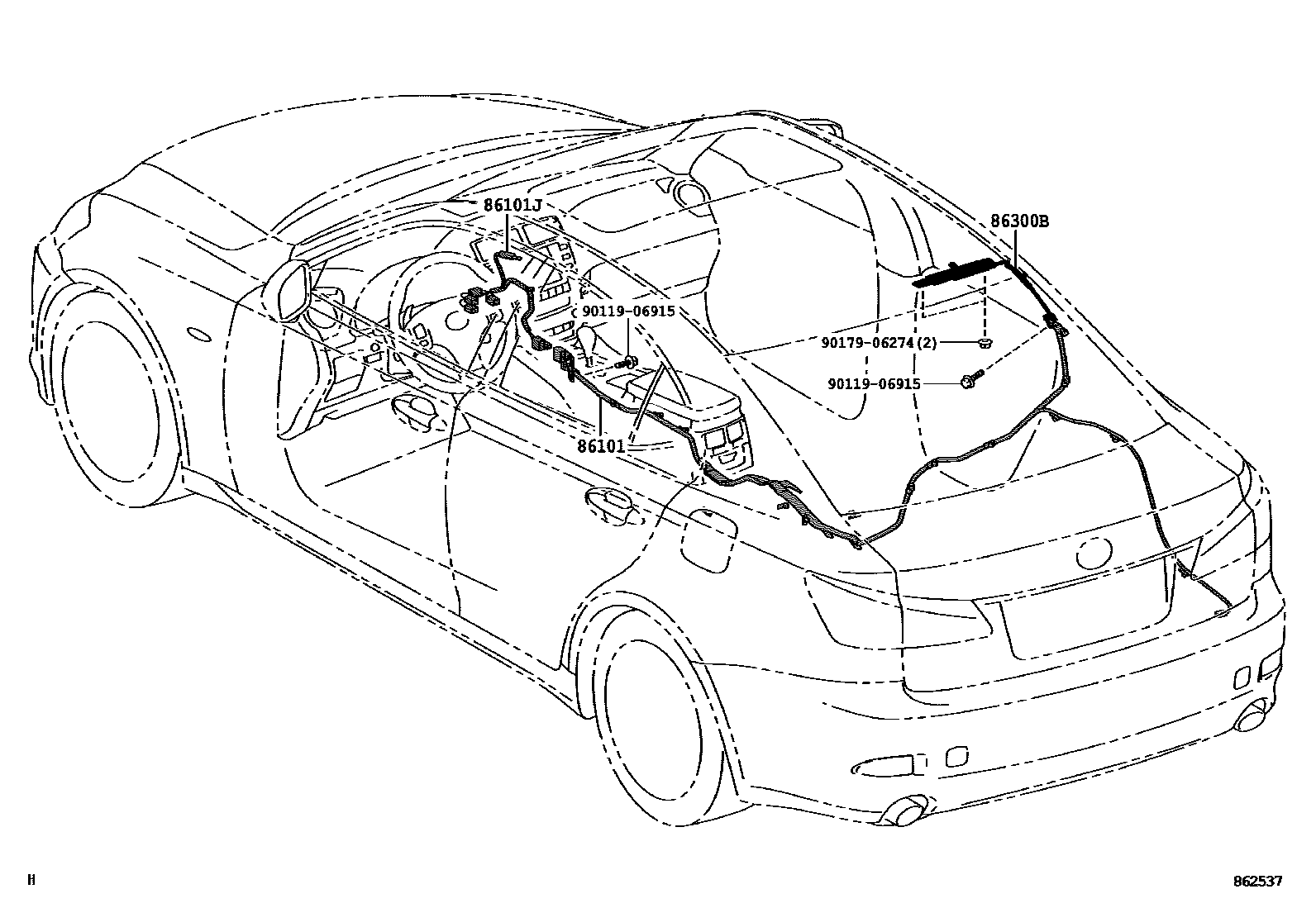

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-53470iALE20..LHD..SPO;ALE20,GSE20..MTM..LUX200509-201208

main86101-53480iGSE20..ATM¥10,800200508-201008

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-53530iALE20,GSE20¥4,240200508-200908

main86101-53A10iALE20,GSE20200908-201304

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-53160iALE20,GSE20200508-201008

9011906915

main90119-06915¥60

9017906274

main90179-06274¥70

5 parts on this diagram · 1 diagram in section
