HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271HOSE, HEADLAMP CLEANER, NO.1
L=90
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271AHOSE, HEADLAMP CLEANER, NO.2
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271BHOSE, HEADLAMP CLEANER, NO.3
L=120
L=360,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
L=360
85271CHOSE, HEADLAMP CLEANER, NO.4
L=200
L=200,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271DHOSE, HEADLAMP CLEANER, NO.5
L=120
L=1200,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
L=1200
85271EHOSE, HEADLAMP CLEANER, NO.6
L=50
L=50,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
L=160
85271GHOSE, HEAD LAMP
85279AJOINT, HEADLAMP CLEANER HOSE
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85341NOZZLE, HEADLAMP CLEANER WASHER
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUISH PEARL CS.,074,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),WHITE PEARL CS.,077,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVER M.M.,1G1,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),MERCURY GRAY MC.,1H9,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),DK.GRAY MC.,1G0,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLACK,212,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),STARLIGHT BLACK GF.,217,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),RED MC.CS.,3R1,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),FIRE AGATE M.M.,4V3,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUE ME.,8U1,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVERY BLUE ME.,8U9,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),LAPIS LAZULI MC.,8V3,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),CATTLEYA M.M.,9AL,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUISH PEARL CS.,074,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),WHITE PEARL CS.,077,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVER M.M.,1G1,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),MERCURY GRAY MC.,1H9,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),DK.GRAY MC.,1G0,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLACK,212,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),STARLIGHT BLACK GF.,217,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),RED MC.CS.,3R1,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),FIRE AGATE M.M.,4V3,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUE ME.,8U1,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVERY BLUE ME.,8U9,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),LAPIS LAZULI MC.,8V3,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),CATTLEYA M.M.,9AL,LH
sub85045-53040
WHITE PEARL CS.,062,RH
BLUISH PEARL CS.,074,RH
WHITE PEARL CS.,077,RH
DK.GRAY MC.,1G0,RH
SILVER M.M.,1G1,RH
BLACK,202,RH
BLACK,212,RH
RED MC.CS.,3R1,RH
BEIGE ME.,4P7,RH
BEIGE ME.,4T1,RH
MD.GREEN M.M.,6U3,RH
DARK BLUE MC.,8P8,RH
LT.BLUE ME.,8R6,RH
DK.BLUE MC. CC.,8U0,RH
WHITE PEARL CS.,062,LH
BLUISH PEARL CS.,074,LH
WHITE PEARL CS.,077,LH
DK.GRAY MC.,1G0,LH
SILVER M.M.,1G1,LH
BLACK,202,LH
BLACK,212,LH
RED MC.CS.,3R1,LH
BEIGE ME.,4P7,LH
BEIGE ME.,4T1,LH
MD.GREEN M.M.,6U3,LH
DARK BLUE MC.,8P8,LH
LT.BLUE ME.,8R6,LH
DK.BLUE MC. CC.,8U0,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
85372AHOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)
L=1060
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8527712080HOSE, HEADLAMP CLEANER, C
main85277-12080
9007590508
main90075-90508
91641C0614
main91641-C0614

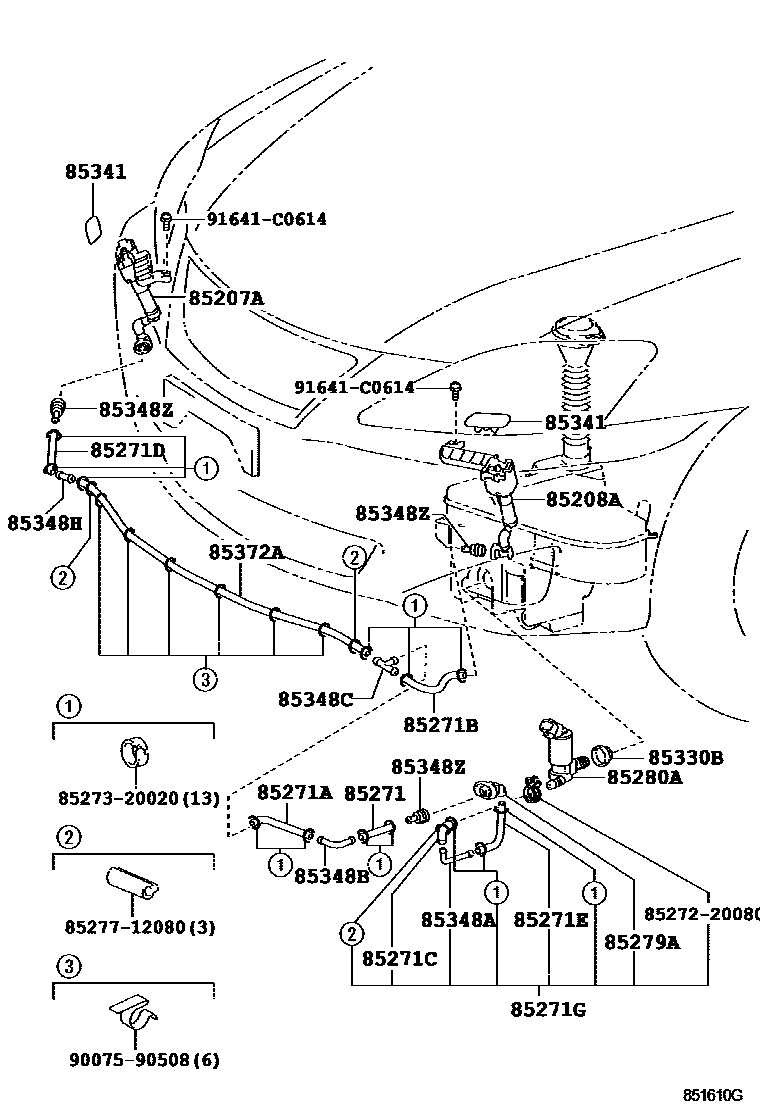

24 parts on this diagram · 3 diagrams in section
