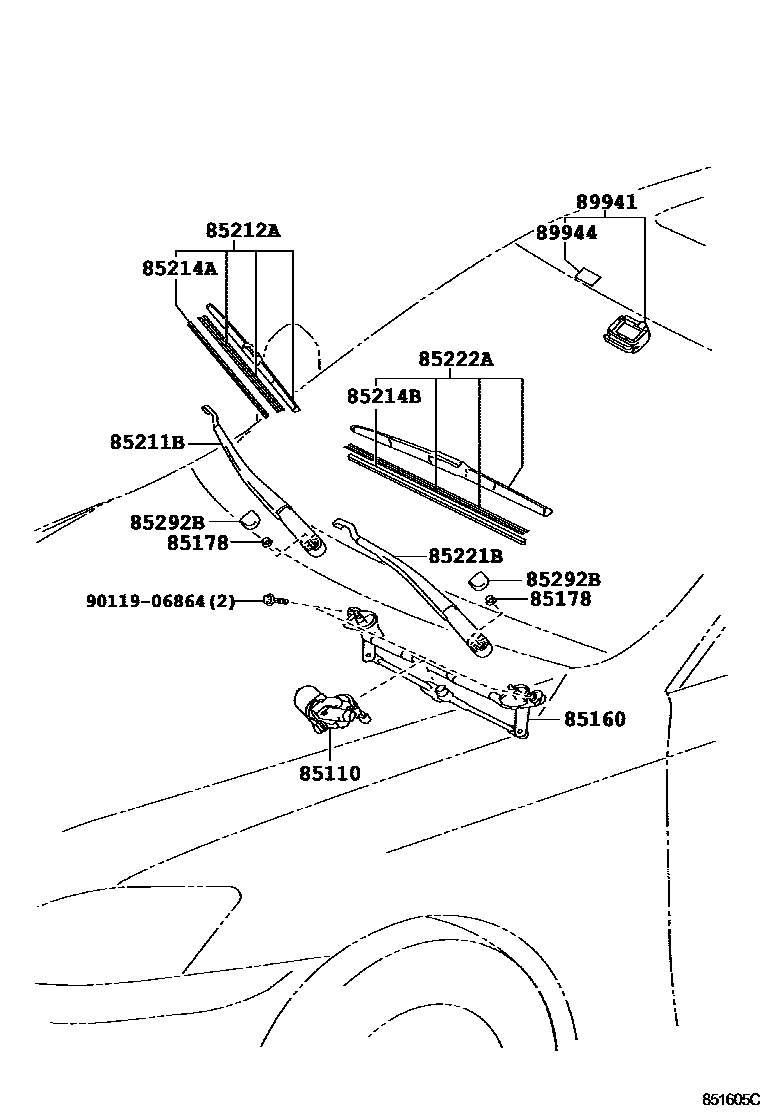

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-26220iALE20,GSE20..RHD200508-200804

sub85110-60380

main85110-53040iALE20,GSE20..LHD200508-200804

sub85110-60400

main85110-60380iALE20,GSE20..RHD200805-201008

main85110-60400iALE20,GSE20..LHD200805-201008

main85110-60390iGSE20..LHD..ATM201007-201008

CHILE SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-53060iALE20,GSE20..LHD200508-201008

sub85150-53061

main85150-53070iALE20,GSE2#..RHD200508-201008

sub85150-53071

main85150-53050iGSE20..LHD..ATM200808-201008

CHILE SPEC

sub85150-53051

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223iALE20,GSE20200508-201106

main90182-10006iALE20,GSE2#201107

85211BARM, FRONT WIPER, RH

main85211-53050iGSE20..RHD201008

NEW ZEALAND SPEC

main85211-53060iALE20,GSE20..RHD..LUX200508-201008

main85211-53070iALE20,GSE20..LHD200508-201008

main85211-53080iGSE20..LHD..ATM200808-201008

CHILE SPEC

85212ABLADE, FR WIPER, RH

main85212-53070iALE20,GSE2#..RHD200508-201304

main85212-53080iALE20,GSE20..LHD200508-200612

sub85212-53081

main85212-53081iALE20,GSE20..LHD200701-201304

85214ARUBBER, WIPER, RH

main85214-53080iALE20,GSE2#..RHD200508-201008

main85214-53090iALE20,GSE20..LHD200508-201008

85214BRUBBER, WIPER, LH

main85214-53080iALE20,GSE20..LHD200508-201008

main85214-53090iALE20,GSE20..RHD200508-201008

85221BARM, FRONT WIPER, LH

main85221-53060iALE20..RHD..SPO200508-201008

main85221-53070iALE20,GSE20..LHD200508-201008

main85221-53080iGSE20..LHD..ATM200808-201008

CHILE SPEC

85222ABLADE, FR WIPER, LH

main85222-53060iALE20,GSE20..RHD200508-201304

main85222-53070iALE20,GSE20..LHD200508-200612

sub85222-53071

main85222-53071iALE20,GSE20..LHD200701-201304

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iALE20..RHD..SPO200508-201008

89941SENSOR, RAIN

main89941-53010iALE20..SPO200602-200704

sub89941-53020

main89941-53011iALE20,GSE20200708-200808

SPORT PACKAGE

sub89941-53020

main89941-53012iALE20..SPO;GSE20..ATM200808-200908

SPORT PACKAGE

sub89941-53020

main89941-53020iALE20200910-201008

VERSION F

89944TAPE, RAIN SENSOR

main89944-30020iALE20,GSE2#201008

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

9011906864

main90119-06864

13 parts on this diagram · 2 diagrams in section
