CLEARANCE & BACK SONAR

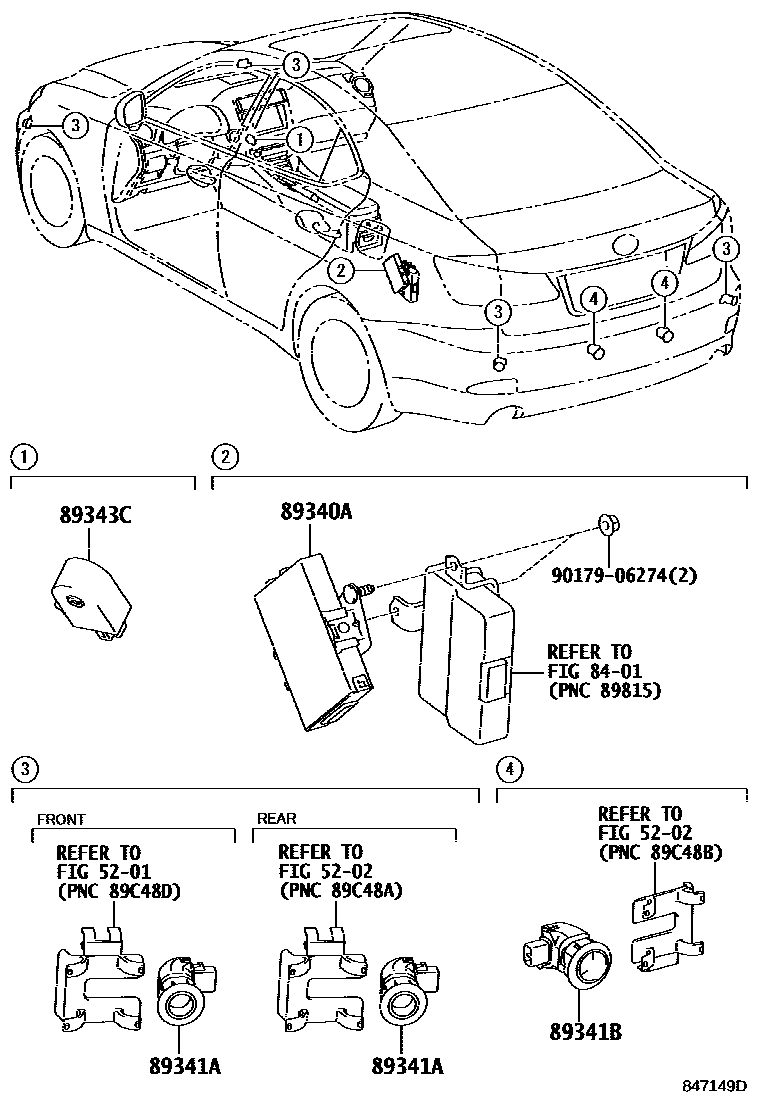

Parts diagram
5201
5202
8401
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-53020i200602-200607
main89340-53040i201008-201304
CLEARANCE & BACK SONAR-WITH
89341ASENSOR, ULTRASONIC, NO.1
main89341-30010-A1i200602-200607
WHITE PEARL CS.,062
sub89341-30010
main89341-30010-A3i200602-200607
BLUISH PEARL CS.,074
sub89341-30010
main89341-30010-B5i200602-200607
DK.GRAY MC.,1G0
sub89341-30010
main89341-30010-B6i200602-200607
SILVER M.M.,1G1
sub89341-30010
main89341-30010-C0i200602-200607
BLACK,202
sub89341-30010
main89341-30010-D2i200602-200607
RED MC.CS.,3R1
sub89341-30010
main89341-30010-E2i200602-200607
BEIGE ME.,4P7
sub89341-30010
main89341-30010-G2i200602-200607
MD.GREEN M.M.,6U3
sub89341-30010
main89341-30010-J0i200602-200607
DARK BLUE MC.,8P8
sub89341-30010
main89341-30010-J5i200602-200607
LT.BLUE ME.,8R6
sub89341-30010
main89341-30010-A5i200808-201008
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
sub89341-30010
main89341-30010-C3i200808-201008
CLEARANCE & BACK SONAR-WITH,BLACK,212
sub89341-30010
main89341-30010-E3i200607-200808
CLEARANCE & BACK SONAR-WITH,BEIGE ME.,4T1
sub89341-30010
main89341-30010-E4i200808-201008
CLEARANCE & BACK SONAR-WITH,BLOND M.M.,4T0
sub89341-30010
main89341-30010-E5i200808-201008
CLEARANCE & BACK SONAR-WITH,SABLE M.M.,4T5
sub89341-30010
main89341-30010-J7i200607-200808
CLEARANCE & BACK SONAR-WITH,DK.BLUE MC. CC.,8U0
sub89341-30010
main89341-30010-J8i200908-201008
CLEARANCE & BACK SONAR-WITH,BLUE ME. CC.,8U1
sub89341-30010
main89341-30010-K1i200908-201008
CLEARANCE & BACK SONAR-WITH,CATTLEYA M.M.,9AL
sub89341-30010
main89341-64010-A2i201008-201108
CLEARANCE & BACK SONAR-WITH,BLUISH PEARL CS.,074
main89341-64010-A3i201008-201304
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
main89341-64010-B4i201008-201304
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
main89341-64010-B5i201108-201304
CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9
main89341-64010-B6i201008-201108
CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0
main89341-64010-C2i201008-201304
CLEARANCE & BACK SONAR-WITH,BLACK,212
main89341-64010-C3i201008-201304
CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217
main89341-64010-D1i201008-201304
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
main89341-64010-E2i201108-201304
CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3
main89341-64010-J3i201008-201304
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
main89341-64010-J4i201008-201304
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
main89341-64010-J5i201008-201304
CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3
main89341-64010-K1i201008-201304
CLEARANCE & BACK SONAR-WITH,CATTLEYA M.M.,9AL
89341BSENSOR, ULTRASONIC, NO.2
main89341-30020-A1i200602-200607
WHITE PEARL CS.,062
sub89341-30021
main89341-30020-A2i200602-200607
BLUISH PEARL CS.,074
sub89341-30021
main89341-30020-B4i200602-200607
DK.GRAY MC.,1G0
sub89341-30021
main89341-30020-B5i200602-200607
SILVER M.M.,1G1
sub89341-30021
main89341-30020-C0i200602-200607
BLACK,202
sub89341-30021
main89341-30020-D1i200602-200607
RED MC.CS.,3R1
sub89341-30021
main89341-30020-E1i200602-200607
BEIGE ME.,4P7
sub89341-30021
main89341-30020-G2i200602-200607
MD.GREEN M.M.,6U3
sub89341-30021
main89341-30020-J0i200602-200607
DARK BLUE MC.,8P8
sub89341-30021
main89341-30020-J3i200602-200607
LT.BLUE ME.,8R6
sub89341-30021
main89341-30020-A4i200607-200708
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
sub89341-30021
main89341-30020-C1i200607-200708
CLEARANCE & BACK SONAR-WITH,BLACK,212
sub89341-30021
main89341-30020-E2i200607-200708
CLEARANCE & BACK SONAR-WITH,BEIGE ME.,4T1
sub89341-30021
main89341-30020-J6i200607-200708
CLEARANCE & BACK SONAR-WITH,DK.BLUE MC. CC.,8U0
sub89341-30021
main89341-30021-A2i200709-200808
CLEARANCE & BACK SONAR-WITH,BLUISH PEARL CS.,074
sub89341-30021
main89341-30021-A4i200808-201008
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
sub89341-30021
main89341-30021-B4i200808-201008
CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0
sub89341-30021
main89341-30021-B5i200808-201008
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
sub89341-30021
main89341-30021-C1i200808-201008
CLEARANCE & BACK SONAR-WITH,BLACK,212
sub89341-30021
main89341-30021-D1i200808-201008
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
sub89341-30021
main89341-30021-E2i200709-200808
CLEARANCE & BACK SONAR-WITH,BEIGE ME.,4T1
sub89341-30021
main89341-30021-E3i200808-201008
CLEARANCE & BACK SONAR-WITH,BLOND M.M.,4T0
sub89341-30021
main89341-30021-E4i200808-201008
CLEARANCE & BACK SONAR-WITH,SABLE M.M.,4T5
sub89341-30021
main89341-30021-G2i200709-200808
CLEARANCE & BACK SONAR-WITH,MD.GREEN M.M.,6U3
sub89341-30021
main89341-30021-J3i200808-201008
CLEARANCE & BACK SONAR-WITH,LT.BLUE ME.,8R6
sub89341-30021
main89341-30021-J6i200709-200808
CLEARANCE & BACK SONAR-WITH,DK.BLUE MC. CC.,8U0
sub89341-30021
main89341-30021-J7i200908-201008
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
sub89341-30021
main89341-30021-K1i200908-201008
CLEARANCE & BACK SONAR-WITH,CATTLEYA M.M.,9AL
sub89341-30021
main89341-64010-A2i201008-201108
CLEARANCE & BACK SONAR-WITH,BLUISH PEARL CS.,074
main89341-64010-A3i201008-201304
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
main89341-64010-B4i201008-201304
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
main89341-64010-B5i201108-201304
CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9
main89341-64010-B6i201008-201108
CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0
main89341-64010-C2i201008-201304
CLEARANCE & BACK SONAR-WITH,BLACK,212
main89341-64010-C3i201008-201304
CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217
main89341-64010-D1i201008-201304
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
main89341-64010-E2i201108-201304
CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3
main89341-64010-J3i201008-201304
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
main89341-64010-J4i201008-201304
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
main89341-64010-J5i201008-201304
CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3
main89341-64010-K1i201008-201304
CLEARANCE & BACK SONAR-WITH,CATTLEYA M.M.,9AL
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-30010i200602-200607
9017906274
main90179-06274

8 parts on this diagram · 4 diagrams in section
