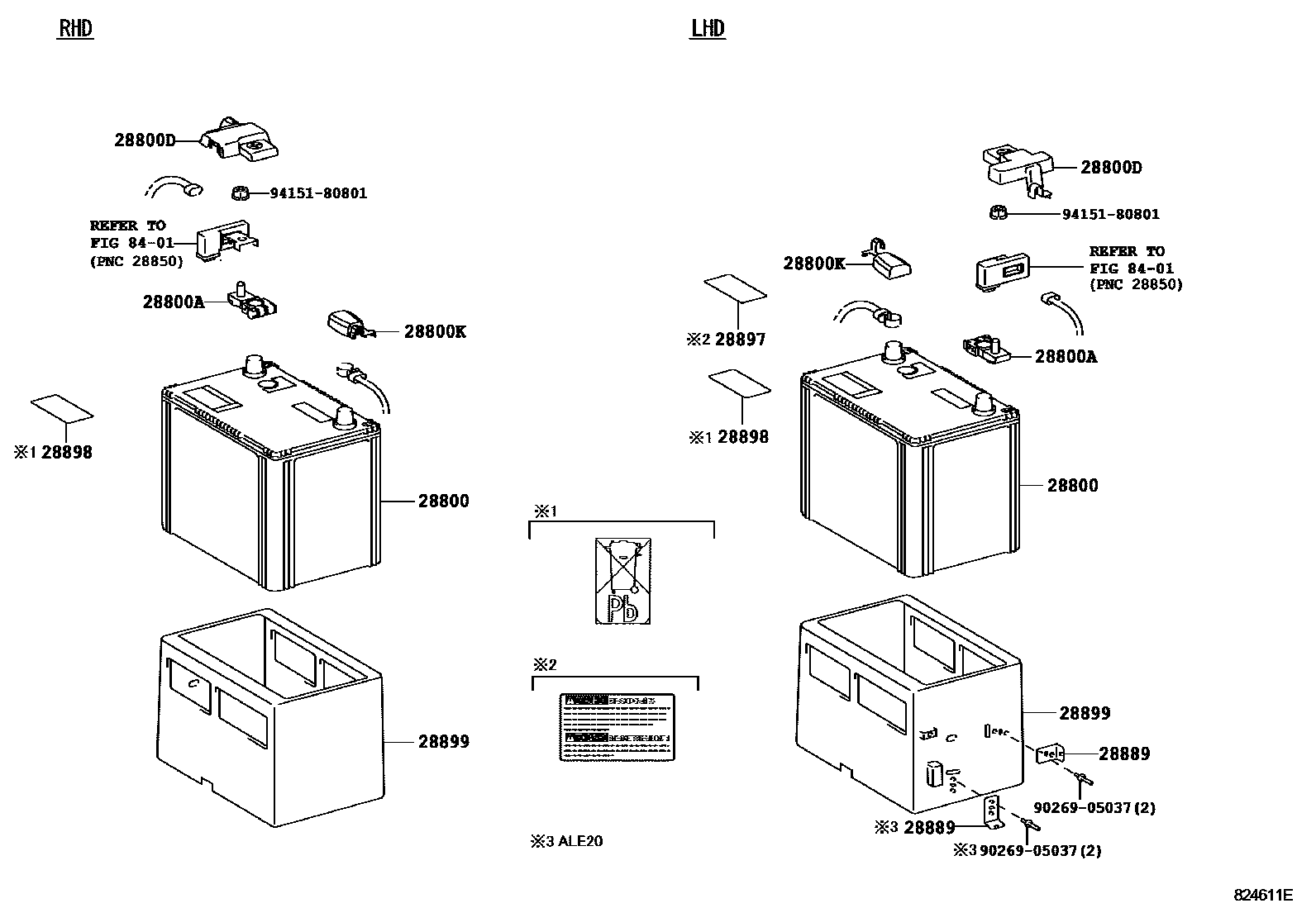

BATTERY & BATTERY CABLE

28800BATTERY

main28800-26120i2AD#..ALE20..RHD200511-201204

115D31L

sub28800-26903

main28800-26130i2ADFHV..ALE20..LHD200511-201204

115D31R

sub28800-26904

main28800-26903i2AD#..ALE20..RHD201204-201208

115D31L

main28800-26904i2AD#..ALE20..LHD201204-201208

115D31R

main28800-38100i4GRFSE..GSE20..LHD200907-201304

80D26R

sub28800-38101

main28800-54020i4GRFSE..GSE20..RHD200508-201304

80D26L

sub28800-67102

main28800-54231i4GRFSE..GSE20..LHD200808-200906

80D26R

sub28800-67131

main28800-54232i4GRFSE..GSE20..LHD200508-200808

80D26R

sub28800-54231

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ADFHV,4GRFSE..ALE20,GSE20..RHD..LUX200508-201008

main90982-05062i2ADFHV,4GRFSE..ALE20,GSE20..LHD200508-201008

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30640i2AD#,2GRFSE,4GRFSE..ALE20,GSE2#..RHD200508-201008

main82821-30660i2ADFHV,4GRFSE..ALE20,GSE20..LHD200508-201008

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i2AD#,2GRFSE,4GRFSE..ALE20,GSE2#201008

main82821-50450i2ADFHV..ALE20..LHD..SPO;2ADFHV,4GRFSE..ALE20,GSE20..LUX200508-201008

28889BRACKET, BATTERY WIRE CLAMP

main28889-31010i2AD#..ALE20..LHD200508-201208

28897PLATE, BATTERY CAUTION

main28897-31040

28898PLATE, BATTERY

main28898-46020i2ADFHV,4GRFSE..ALE20,GSE20200508-201008

28899INSULATOR, BATTERY

main28899-26010i2ADFHV..ALE20..RHD..SPO200511-201208

main28899-31020i2GRFSE,4GRFSE..GSE2#..RHD200508-201008

main28899-31030i4GRFSE..GSE20..LHD200508-201008

8401

9026905037

main90269-05037

9415180801

main94151-80801

11 parts on this diagram · 1 diagram in section
