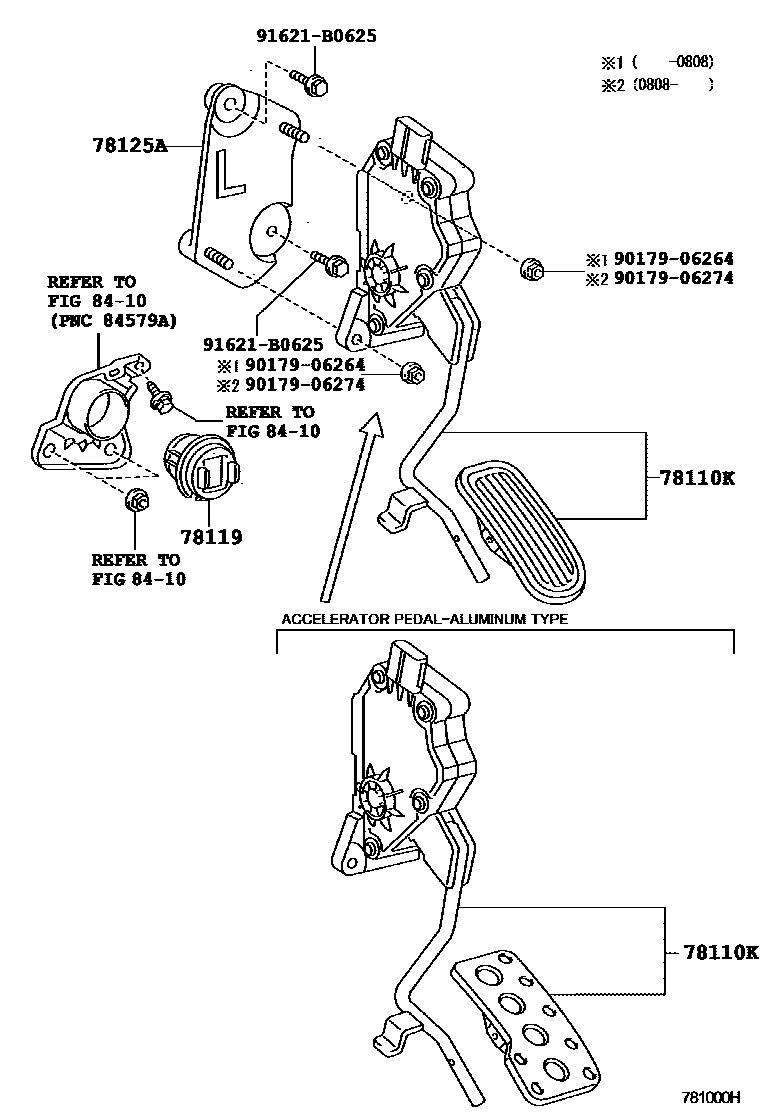

ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-53011iALE20,GSE20..RHD200708-200808

sub78110-53012

main78110-53030iALE20,GSE20..LHD..LUX200508-200707

sub78110-53031

main78110-53021iGSE20..RHD..ATM200808-201008

NEW ZEALAND SPEC&ACCELERATOR PEDAL-ALUMINUM TYPE

sub78110-53022

main78110-53022iALE20,GSE2#..RHD201008

NEW ZEALAND SPEC&ACCELERATOR PEDAL-ALUMINUM TYPE

sub78110-53170

main78110-53041iALE20..LHD..LUX200803-200808

ACCELERATOR PEDAL-ALUMINUM TYPE

sub78110-53110

main78110-53110iALE20,GSE20..LHD201008

ACCELERATOR PEDAL-ALUMINUM TYPE

sub78110-53100

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-48010iALE20,GSE21200808-201008

NEW ZEALAND SPEC

main78119-48010iALE20,GSE20..MTM200509-200908

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-53010iALE20,GSE20..LHD200508-201008

8410

9017906264

main90179-06264

9017906274

main90179-06274

91621B0625

main91621-B0625

7 parts on this diagram · 2 diagrams in section
