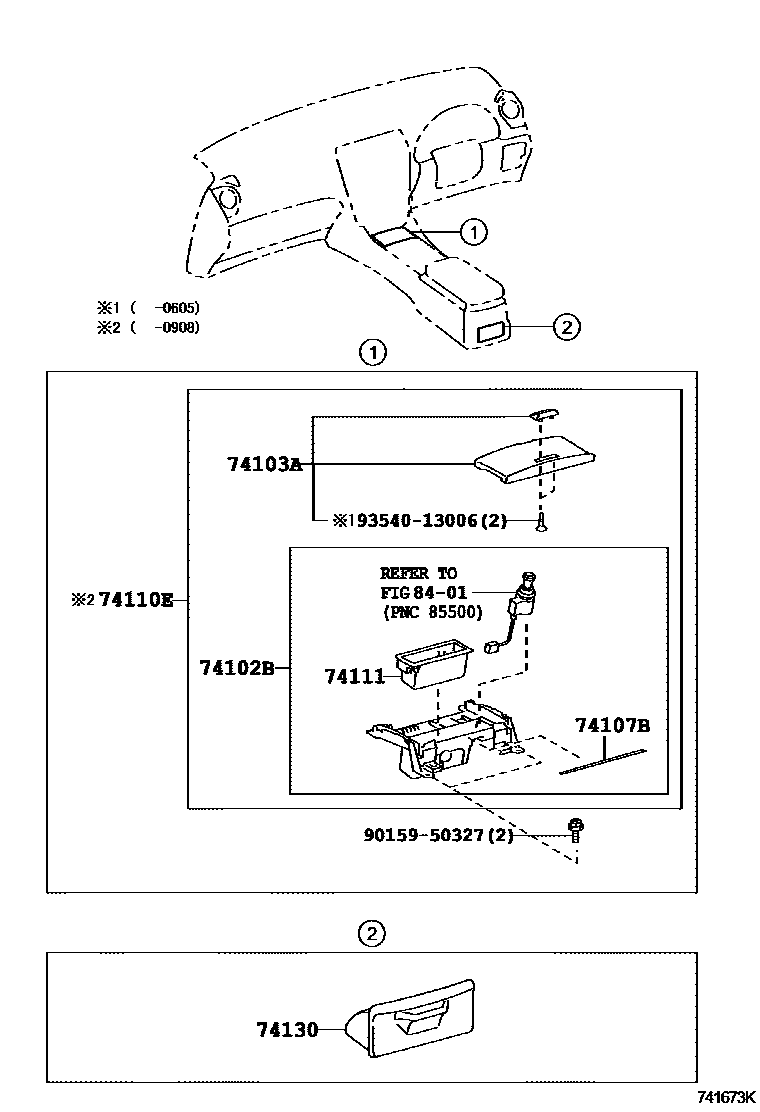

ASH RECEPTACLE
74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE
74103ADOOR SUB-ASSY, FRONT ASH RECEPTACLE
SILVER
LUXURY PACKAGE,SILVER
POWER WINDOW-WITH(WOOD BASE),SILVER
74107BSEAL, ASH RECEPTACLE DOOR
74110ERECEPTACLE ASSY, FRONT ASH
SILVER
74111BOX, FRONT ASH RECEPTACLE
LUXURY PACKAGE&SEAT HEATER-HEAT & COOL
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER
LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER)
74130RECEPTACLE ASSY, REAR ASH
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
8401
9015950327
main90159-50327
9354013006
main93540-13006
9 parts on this diagram · 1 diagram in section
