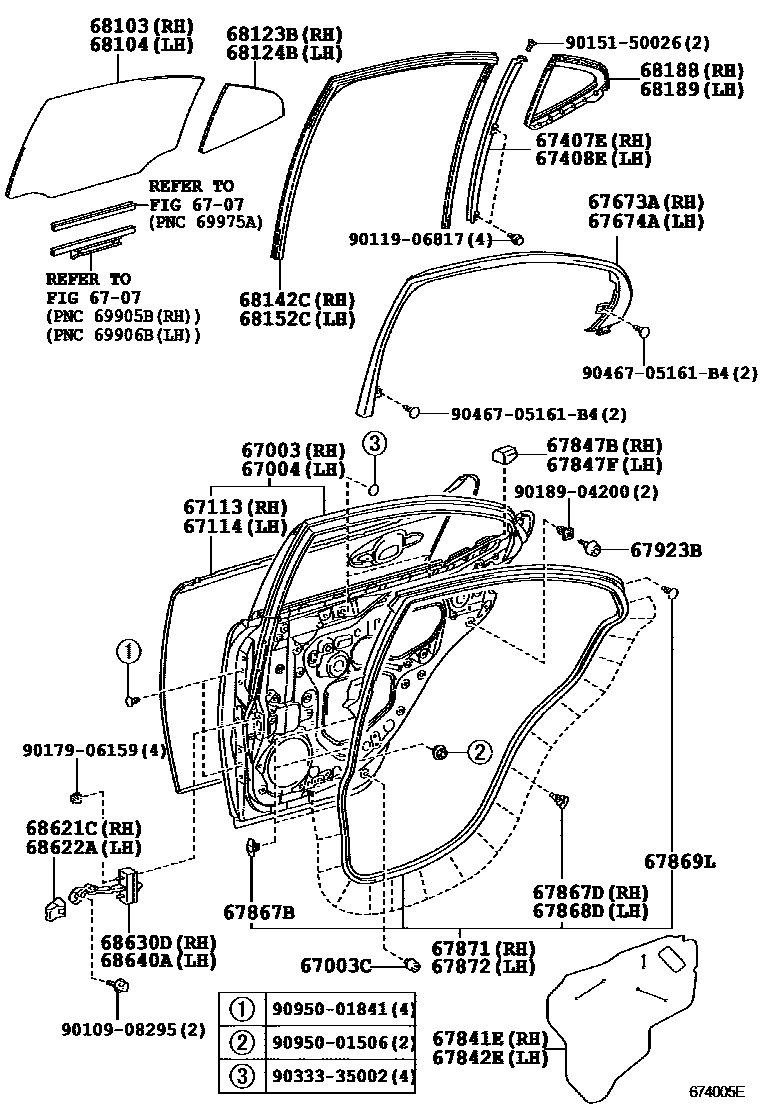

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-53040iALE20,GSE20¥90,600200508-200804

sub67003-53041¥90,600

sub82153-53080¥14,500

sub82153-53090¥12,400

main67003-53041iALE20,GSE20¥90,600200805-201008

67003CCUSHION, REAR DOOR PANEL

main90541-09069iALE20..RHD..SPO¥170200508-201008

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-53040iALE20,GSE20¥90,600200508-200804

sub67004-53041¥90,600

sub82154-53080¥14,500

sub82154-53090¥12,400

main67004-53041iALE20,GSE2#¥90,600200805-201008

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-53020iALE20,GSE20¥36,500200508-201304

67114PANEL, REAR DOOR, OUTER LH

main67114-53020iALE20,GSE20¥36,500200508-201304

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-53030iALE20,GSE20¥3,170200508-201008

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-53030iALE20..LHD..SPO;ALE20,GSE20..LUX¥3,170200508-201008

67673AGARNISH, REAR DOOR FRAME, RH

main67673-53010iALE20..LHD..SPO;ALE20,GSE20..LUX¥5,100200508-201008

67674AGARNISH, REAR DOOR FRAME, LH

main67674-53010iALE20..RHD..SPO¥5,100200508-201008

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-53020iALE20,GSE20¥1,610200508-201008

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-53020iALE20,GSE20¥1,610200508-201008

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-30010iALE20,GSE20¥380200508-201008

67847FSEAL, REAR DOOR VENT, LH

main67847-30010iALE20,GSE20¥380200508-201008

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main90467-04034iALE20..RHD..SPO¥60200508-201008

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iALE20,GSE20¥100200508-201008

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iALE20,GSE20¥100200508-201008

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-22030iALE20,GSE20¥160200508-201008

67871WEATHERSTRIP, REAR DOOR, RH

main67871-53030iALE20,GSE20¥8,500200508-201008

67872WEATHERSTRIP, REAR DOOR, LH

main67872-53030iALE20,GSE20¥8,500200508-201008

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-24030iALE20,GSE20¥520200508-201111

main67923-48060iALE20,GSE2#¥190201111

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-53130iALE20..LUX¥15,300200511-200604

*UVCT,T=3.1,GREEN

sub68113-53131¥15,200

main68113-53131iALE20..LUX¥15,200200604-200905

*UVCT,T=3.1,GREEN

sub68113-53132¥15,200

main68113-53131iALE20..LUX¥15,200200604-200905

*UVCT,T=3.1,GREEN,RUSSIA SPEC

sub68113-53132¥15,200

main68113-53131iALE20¥15,200200808-200905

*UVCT,T=3.1,GREEN,HONG KONG SPEC

sub68113-53132¥15,200

main68113-53132iALE20¥15,200201008-201208

*UVCT,T=3.1,GREEN,CROATIA SPEC&FB PACKAGE

main68113-53132iGSE20..RHD..ATM¥15,200200905-201208

*UVCT,T=3.1,GREEN

main68113-53132iGSE20..RHD..ATM¥15,200200905-201008

*UVCT,T=3.1,GREEN,RUSSIA SPEC

main68113-53132iGSE20..RHD..ATM¥15,200200905-201008

*UVCT,T=3.1,GREEN,HONG KONG SPEC

main68113-53132iALE20..LHD..DCR¥15,200201008-201208

*UVCT,T=3.1,GREEN,CROATIA SPEC&LUXURY PACKAGE

main68113-53140iGSE20¥15,500200508-200905

*UVCT,T=3.1,C.GREEN

sub68113-53141¥15,500

main68113-53140iGSE20¥15,500200808-200905

*UVCT,T=3.1,C.GREEN,LUXURY PACKAGE

sub68113-53141¥15,500

main68113-53140iGSE20¥15,500200808-200905

*UVCT,T=3.1,C.GREEN,SPORT PACKAGE

sub68113-53141¥15,500

main68113-53141iALE20..LHD..SPO¥15,500200905-201008

*UVCT,T=3.1,C.GREEN,LUXURY PACKAGE

main68113-53141iGSE20¥15,500200905-201008

*UVCT,T=3.1,C.GREEN

main68113-53141iGSE20¥15,500200905-201008

*UVCT,T=3.1,C.GREEN,SPORT PACKAGE

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-53130iALE20..LUX¥15,300200511-200604

*UVCT,T=3.1,GREEN

sub68114-53131¥15,200

main68114-53131iGSE20..RHD..ATM¥15,200200808-200905

*UVCT,T=3.1,GREEN,HONG KONG SPEC

sub68114-53132¥15,200

main68114-53131iGSE20..LHD¥15,200200604-200905

*UVCT,T=3.1,GREEN

sub68114-53132¥15,200

main68114-53131iGSE20..LHD¥15,200200604-200905

*UVCT,T=3.1,GREEN,RUSSIA SPEC

sub68114-53132¥15,200

main68114-53132iALE20¥15,200200905-201208

*UVCT,T=3.1,GREEN

main68114-53132iALE20¥15,200201008-201208

*UVCT,T=3.1,GREEN,CROATIA SPEC&FB PACKAGE

main68114-53132iALE20¥15,200201008-201208

*UVCT,T=3.1,GREEN,CROATIA SPEC&LUXURY PACKAGE

main68114-53132iALE20..LUX;ALE20..LHD..SPO¥15,200200905-201008

*UVCT,T=3.1,GREEN,RUSSIA SPEC

main68114-53132iALE20..LUX;ALE20..LHD..SPO¥15,200200905-201008

*UVCT,T=3.1,GREEN,HONG KONG SPEC

main68114-53140iGSE20¥15,500200508-200905

*UVCT,T=3.1,C.GREEN

sub68114-53141¥15,500

main68114-53140iALE20..SPO¥15,500200808-200905

*UVCT,T=3.1,C.GREEN,LUXURY PACKAGE

sub68114-53141¥15,500

main68114-53140iALE20..SPO¥15,500200808-200905

*UVCT,T=3.1,C.GREEN,SPORT PACKAGE

sub68114-53141¥15,500

main68114-53141iALE20..LHD..SPO¥15,500200905-201008

*UVCT,T=3.1,C.GREEN,SPORT PACKAGE

main68114-53141iGSE20¥15,500200905-201008

*UVCT,T=3.1,C.GREEN

main68114-53141iGSE20¥15,500200905-201008

*UVCT,T=3.1,C.GREEN,LUXURY PACKAGE

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-53090iALE20..LUX¥5,400200511-200604

*UVCT,T=3.1,GREEN

sub68123-53091¥5,400

main68123-53091iALE20..SPO¥5,400200604-200902

*UVCT,T=3.1,GREEN

sub68123-53092¥5,400

main68123-53091iALE20¥5,400200604-200902

*UVCT,T=3.1,GREEN,RUSSIA SPEC

sub68123-53092¥5,400

main68123-53091iALE20¥5,400200808-200902

*UVCT,T=3.1,GREEN,HONG KONG SPEC

sub68123-53092¥5,400

main68123-53092iALE20..LUX;ALE20..LHD..SPO¥5,400200903-201008

*UVCT,T=3.1,GREEN,HONG KONG SPEC

main68123-53092iGSE20..LHD..ATM¥5,400200903-201208

*UVCT,T=3.1,GREEN

main68123-53092iGSE20..LHD..ATM¥5,400200903-201008

*UVCT,T=3.1,GREEN,RUSSIA SPEC

main68123-53092iALE20¥5,400201008-201208

*UVCT,T=3.1,GREEN,CROATIA SPEC&FB PACKAGE

main68123-53092iALE20¥5,400201008-201208

*UVCT,T=3.1,GREEN,CROATIA SPEC&LUXURY PACKAGE

main68123-53100iALE20..SPO¥5,500200508-200902

*UVCT,T=3.1,C.GREEN

sub68123-53101¥5,500

main68123-53100iGSE20¥5,500200808-200902

*UVCT,T=3.1,C.GREEN,LUXURY PACKAGE

sub68123-53101¥5,500

main68123-53100iGSE20¥5,500200808-200902

*UVCT,T=3.1,C.GREEN,SPORT PACKAGE

sub68123-53101¥5,500

main68123-53101iGSE20¥5,500200903-201008

*UVCT,T=3.1,C.GREEN,SPORT PACKAGE

main68123-53101iALE20..LUX;ALE20..LHD..SPO¥5,500200903-201008

*UVCT,T=3.1,C.GREEN,LUXURY PACKAGE

main68123-53101iALE20..LHD..SPO¥5,500200903-201008

*UVCT,T=3.1,C.GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-53090iALE20..LUX¥5,400200511-200604

*UVCT,T=3.1,GREEN

sub68124-53091¥5,400

main68124-53091iGSE20..LHD..ATM¥5,400200604-200902

*UVCT,T=3.1,GREEN,RUSSIA SPEC

sub68124-53092¥5,400

main68124-53091iGSE20..LHD..ATM¥5,400200808-200902

*UVCT,T=3.1,GREEN,HONG KONG SPEC

sub68124-53092¥5,400

main68124-53091iGSE20..RHD..ATM¥5,400200604-200902

*UVCT,T=3.1,GREEN

sub68124-53092¥5,400

main68124-53092iALE20..LHD..DCR¥5,400200903-201208

*UVCT,T=3.1,GREEN

main68124-53092iALE20¥5,400201008-201208

*UVCT,T=3.1,GREEN,CROATIA SPEC&FB PACKAGE

main68124-53092iALE20¥5,400201008-201208

*UVCT,T=3.1,GREEN,CROATIA SPEC&LUXURY PACKAGE

main68124-53092iALE20..LUX;ALE20..LHD..SPO¥5,400200903-201008

*UVCT,T=3.1,GREEN,RUSSIA SPEC

main68124-53092iALE20..LUX;ALE20..LHD..SPO¥5,400200903-201008

*UVCT,T=3.1,GREEN,HONG KONG SPEC

main68124-53100iGSE20¥5,500200508-200902

*UVCT,T=3.1,C.GREEN

sub68124-53101¥5,500

main68124-53100iALE20..SPO¥5,500200808-200902

*UVCT,T=3.1,C.GREEN,LUXURY PACKAGE

sub68124-53101¥5,500

main68124-53100iALE20..SPO¥5,500200808-200902

*UVCT,T=3.1,C.GREEN,SPORT PACKAGE

sub68124-53101¥5,500

main68124-53101iALE20..LHD..SPO¥5,500200903-201008

*UVCT,T=3.1,C.GREEN,LUXURY PACKAGE

main68124-53101iGSE20¥5,500200903-201008

*UVCT,T=3.1,C.GREEN

main68124-53101iGSE20¥5,500200903-201008

*UVCT,T=3.1,C.GREEN,SPORT PACKAGE

68142CRUN, REAR DOOR GLASS, RH

main68142-53030iALE20,GSE20¥4,770200508-201008

68152CRUN, REAR DOOR GLASS, LH

main68152-53030iALE20,GSE20¥3,250200508-201008

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-53030iALE20,GSE20¥2,760200508-201008

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-53030iALE20,GSE20¥2,760200508-201008

68621CCOVER, REAR DOOR CHECK, RH

main68621-33010iALE20,GSE20¥380200508-201008

68622ACOVER, REAR DOOR CHECK, LH

main68622-33010iALE20,GSE20¥380200508-201008

68630DCHECK ASSY, REAR DOOR, RH

main68630-53030iALE20,GSE20¥4,460200508-201002

sub68630-53031¥4,460

main68630-53031iALE20,GSE20¥4,460201003-201008

68640ACHECK ASSY, REAR DOOR, LH

main68640-53020iALE20,GSE20¥4,460200508-201002

sub68640-53021¥4,460

main68640-53021iALE20,GSE20¥4,460201003-201008

9010908295

main90109-08295¥80

9011906817

main90119-06817¥70

9015150026

main90151-50026¥60

9017906159

main90179-06159¥70

9018904200

main90189-04200¥80

9033335002

main90333-35002¥80

9046705161B4

main90467-05161B4

9095001506

main90950-01506¥120

9095001841

main90950-01841¥110

42 parts on this diagram · 2 diagrams in section
