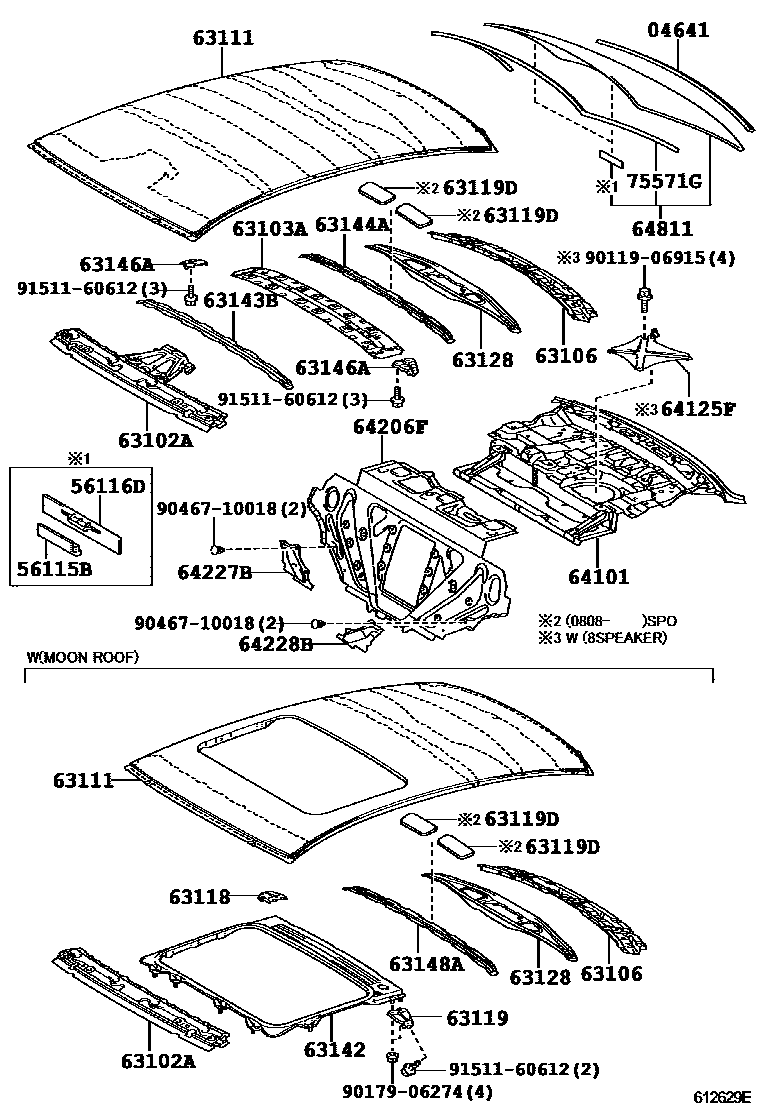

ROOF PANEL & BACK WINDOW GLASS
04641DAM KIT, BACK WINDOW GLASS
sub56117-50140
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
63102APANEL SUB-ASSY, WINDSHIELD HEADER
MOON ROOF-WITH(AUTO SLIDE)
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4
63111PANEL, ROOF
MOON ROOF-WITH(AUTO SLIDE)
63118SUPPORT, ROOF PANEL, RH
MOON ROOF-WITH(AUTO SLIDE)
63119SUPPORT, ROOF PANEL, LH
MOON ROOF-WITH(AUTO SLIDE)
63119DPAD, ROOF PANEL, NO.1
63128REINFORCEMENT, ROOF PANEL, NO.6
63142REINFORCEMENT, ROOF PANEL, NO.2
MOON ROOF-WITH(AUTO SLIDE)
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1
63148AREINFORCEMENT, ROOF PANEL, NO.7
MOON ROOF-WITH(AUTO SLIDE)
64101PANEL SUB-ASSY, UPPER BACK
64125FBRACKET, UPPER BACK PANEL
64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2
64811GLASS, BACK WINDOW
*UVCT,T=3.1,C.GREEN
*UVCT,T=3.1,C.GREEN,SPORT PACKAGE
75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1
9011906915
main90119-06915
9017906274
main90179-06274
9046710018
main90467-10018
9151160612
main91511-60612
27 parts on this diagram · 2 diagrams in section
