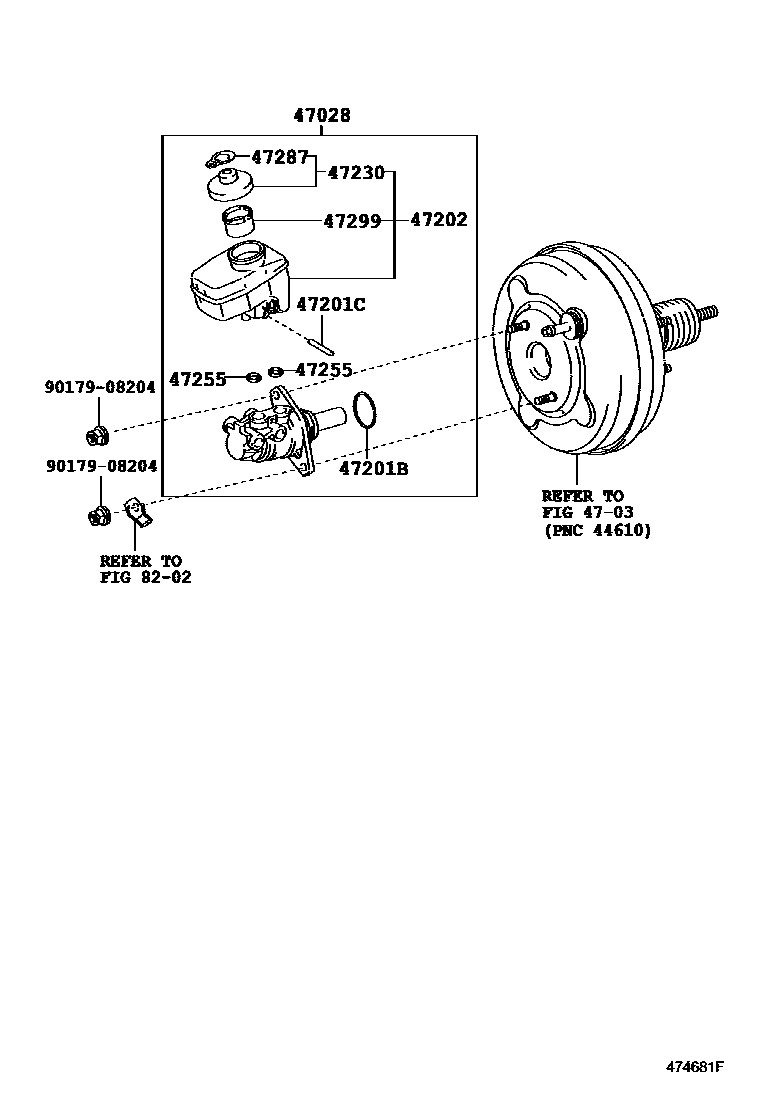

BRAKE MASTER CYLINDER

0001 1 0002 1

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-30010iGSE20..RHD..ATM200508-201008

main47028-30030iGSE20..LHD..ATM200508-201008

main47028-53010iALE20..RHD200509-201208

main47028-53020iALE20..LHD200509-201208

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iALE20,GSE20200508-201008

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iALE20,GSE20200508-201008

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30170iGSE20..RHD..ATM200508-201008

main47220-30180iGSE20..LHD200508-201008

main47220-53070iALE20..RHD..SPO200509-201208

main47220-53080iALE20..LHD200509-201208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iALE20,GSE20200508-201008

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iALE20,GSE20200508-201008

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iALE20,GSE20200508-201008

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iALE20,GSE20200508-201008

8202

9017908204

main90179-08204

11 parts on this diagram · 2 diagrams in section
