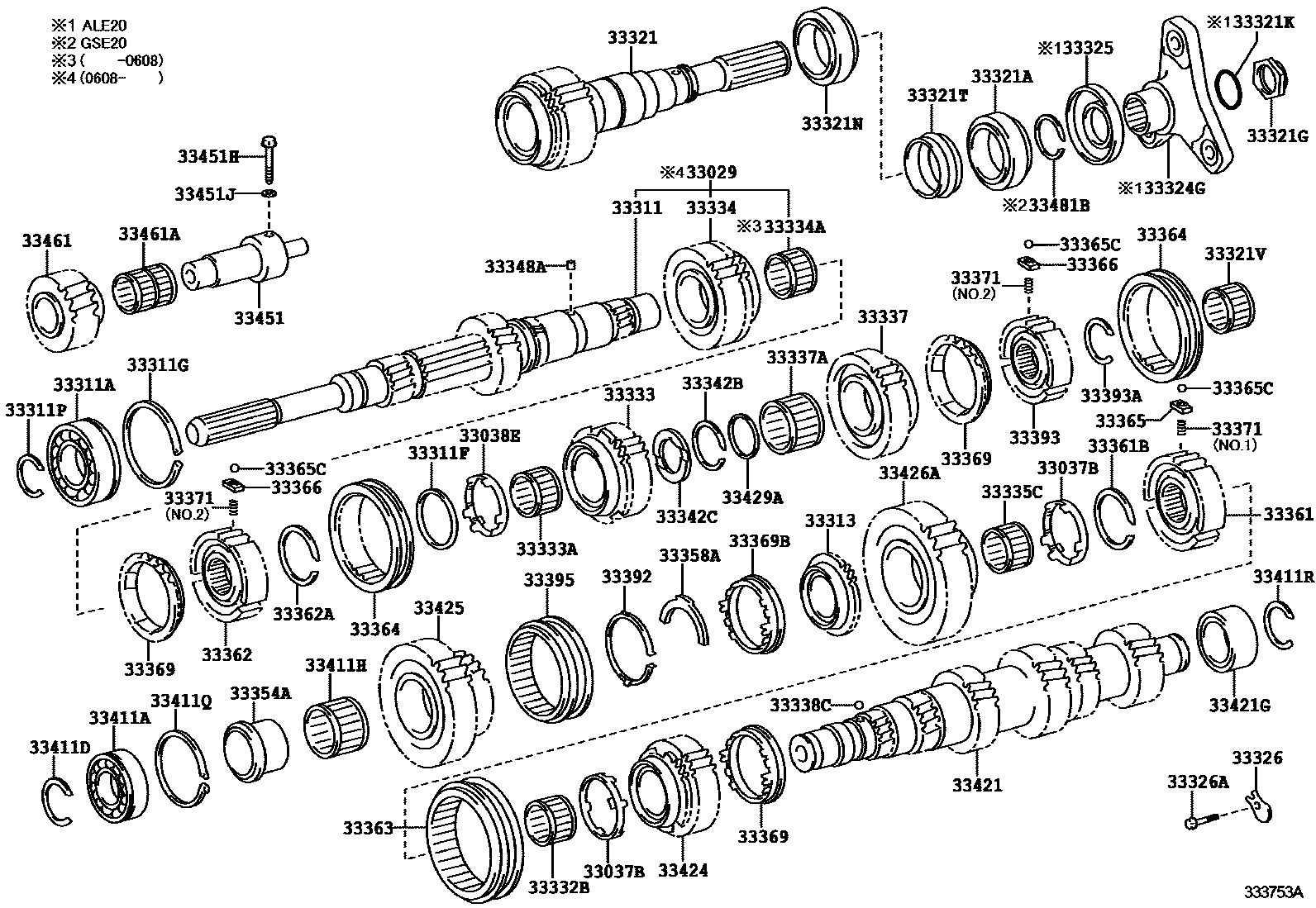

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
2ND GEAR SIDE
1ST GEAR SIDE
2ND GEAR SIDE
33038ERING SET, SYNCHRONIZER, NO.2
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311FSPACER (FOR INPUT SHAFT)
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.65,MARK A
T=2.70,MARK B
T=2.75,MARK C
T=2.80,MARK D
T=2.85,MARK E
T=2.90,MARK F
33313PIECE, REVERSE GEAR SPLINE
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321KRING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321TSPACER (FOR OUTPUT SHAFT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33324GFLANGE, OUTPUT SHAFT COMPANION (MTM)
33325DFFLECTOR, DUST (FOR MTM OUTPUT SHAFT COMPANION FLANGE)
33326PLATE, BEARING LOCK
33326ABOLT (FOR BEARING LOCK PLATE)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
33338CBALL, REVERSE SHIFT RESTRICT
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
T=2.07,MARK A
T=2.12,MARK B
T=2.17,MARK C
T=2.22,MARK D
T=2.27,MARK E
T=2.32,MARK F
33342CWASHER, 3RD GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33354ARACE, REVERSE GEAR BEARING, INNER
33358AKEY, SYNCHROMESH SHIFTING, NO.4
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.28,MARK A
T=2.33,MARK B
T=2.38,MARK C
T=2.43,MARK D
T=2.48,MARK E
T=2.53,MARK F
T=2.58,MARK G
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33365CBALL(FOR SYNCHROMESH SHIFTING KEY)
33366KEY, SYNCHROMESH SHIFTING, NO.2
33369RING, SYNCHRONIZER, NO.3
5TH GEAR SIDE
4TH,6TH GEAR SIDE
33369BRING, SYNCHRONIZER, NO.4
sub33381-35011
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
NO.1
NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
33395SLEEVE, TRANSMISSION HUB, NO.3
sub33395-35051
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=2.35,MARK A
T=2.40,MARK B
T=2.45,MARK C
T=2.50,MARK D
T=2.55,MARK E
T=2.60,MARK F
T=2.65,MARK G
T=2.70,MARK H
T=2.75,MARK J
T=2.80,MARK K
T=2.85,MARK L
T=2.90,MARK M
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=1.67
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=2.35,MARK A
T=2.40,MARK B
T=2.45,MARK C
T=2.50,MARK D
T=2.55,MARK E
T=2.60,MARK F
T=2.65,MARK G
T=2.70,MARK H
T=2.75,MARK J
T=2.80,MARK K
T=2.85,MARK L
T=2.90,MARK M
33421GEAR, COUNTER
33421GBEARING, RADIAL BALL(FOR COUNTER GEAR REAR)
33425GEAR, COUNTERSHAFT REVERSE
33426AGEAR, COUNTERSHAFT, 1ST SPEED
33429ARING, SHAFT SNAP
T=1.0
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33461ABEARING, REVERSE IDLER GEAR
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.75
67 parts on this diagram · 1 diagram in section
