EXHAUST PIPE

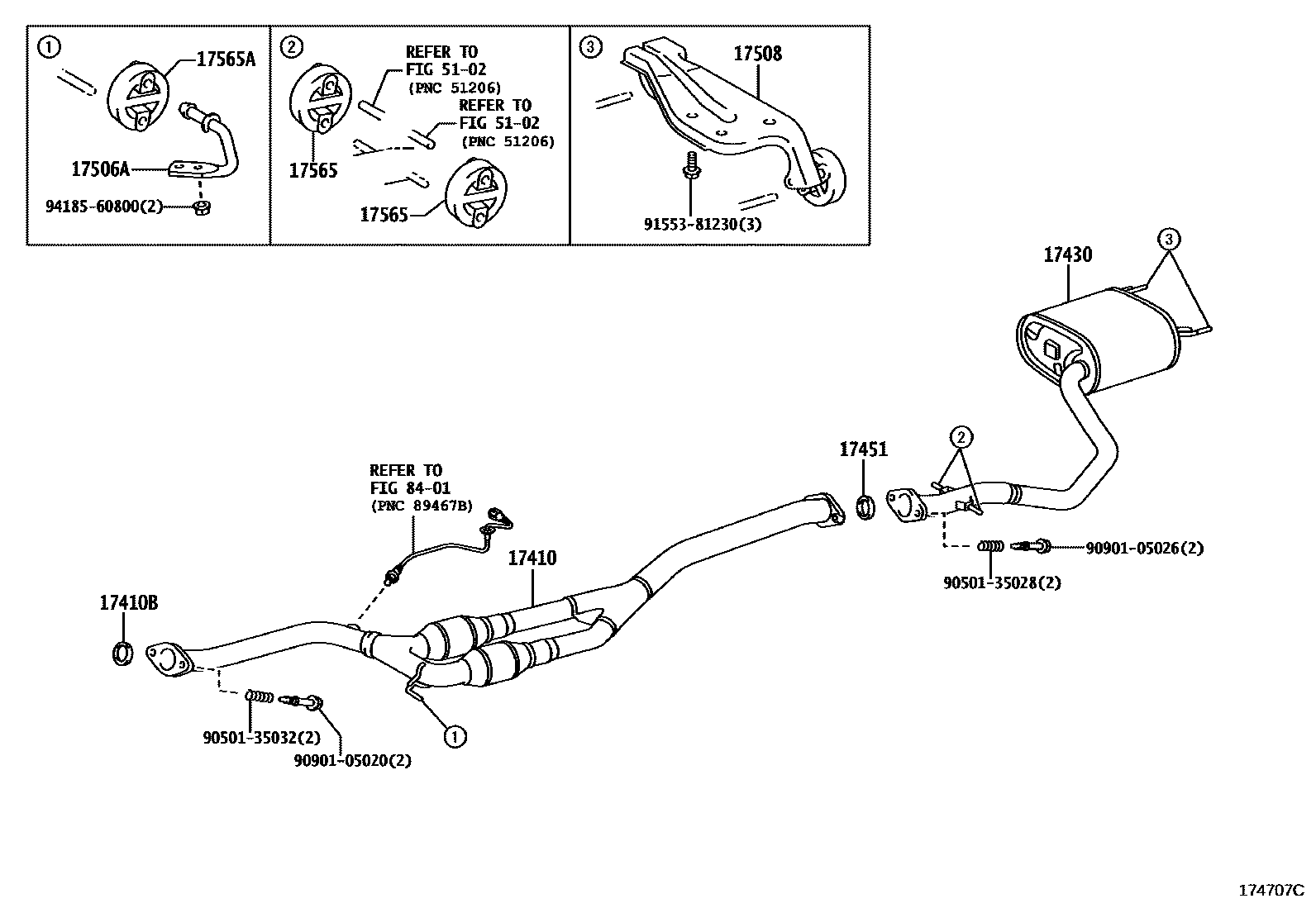

Parts diagram
17410PIPE ASSY, EXHAUST, FRONT
main17410-26360i200511-201208
*114=TOYOTA/T92/Y
main17410-26490i201008-201208
*114=TOYOTA/TD1/Y
main17410-31560i200508-200908
*114=TOYOTA/GD8/Y
sub17410-31A30
main17410-31A30i200908-201101
*114=TOYOTA/GQ2/Y
sub17410-31A31
main17410-31A31i201102-201203
*114=TOYOTA/GQ2/Y
sub17410-31G60
main17410-31B01i201008-201101
*114=TOYOTA/GR2/Y
sub17410-31B02
main17410-31B02i201102-201205
*114=TOYOTA/GR2/Y
sub17410-31J10
main17410-31G60i201204-201304
*114=TOYOTA/RC4/Y
sub17410-31G50
main17410-31J10i201205-201304
*114=TOYOTA/RF8/Y
17410BGASKET, EXHAUST PIPE
main17451-22060i200511-201208
main90917-06078i200508-201008
17430PIPE ASSY, EXHAUST, TAIL
main17430-26710i200511-200808
main17430-26760i200808-201208
main17430-31490i200508-200808
sub17430-31A71
main17430-31790i200808-201008
sub17430-31A70
main17430-31A60i201008
main17430-31A70i201008-201201
sub17430-31A71
main17430-31A71i201202
sub17430-31A81
17451GASKET, EXHAUST PIPE
main17451-31010i200508-200806
sub17451-31011
main17451-31011i200807-201102
sub17451-31012
main17451-31012i201103
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
main17506-31030i200508-201008
main17506-31070i200511-201208
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
main17508-26110i200511-201208
main17508-31100i200508-201011
sub17508-31101
main17508-31101i201012
17565SUPPORT, EXHAUST PIPE, NO.5
main17565-22040i200706-201008
main17565-46040i200508-200705
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-22030i200511-201208
5102
8401
9050135028
main90501-35028
9050135032
main90501-35032
9090105020
main90901-05020
9090105026
main90901-05026
9155381230
main91553-81230
9418560800
main94185-60800

16 parts on this diagram · 2 diagrams in section
