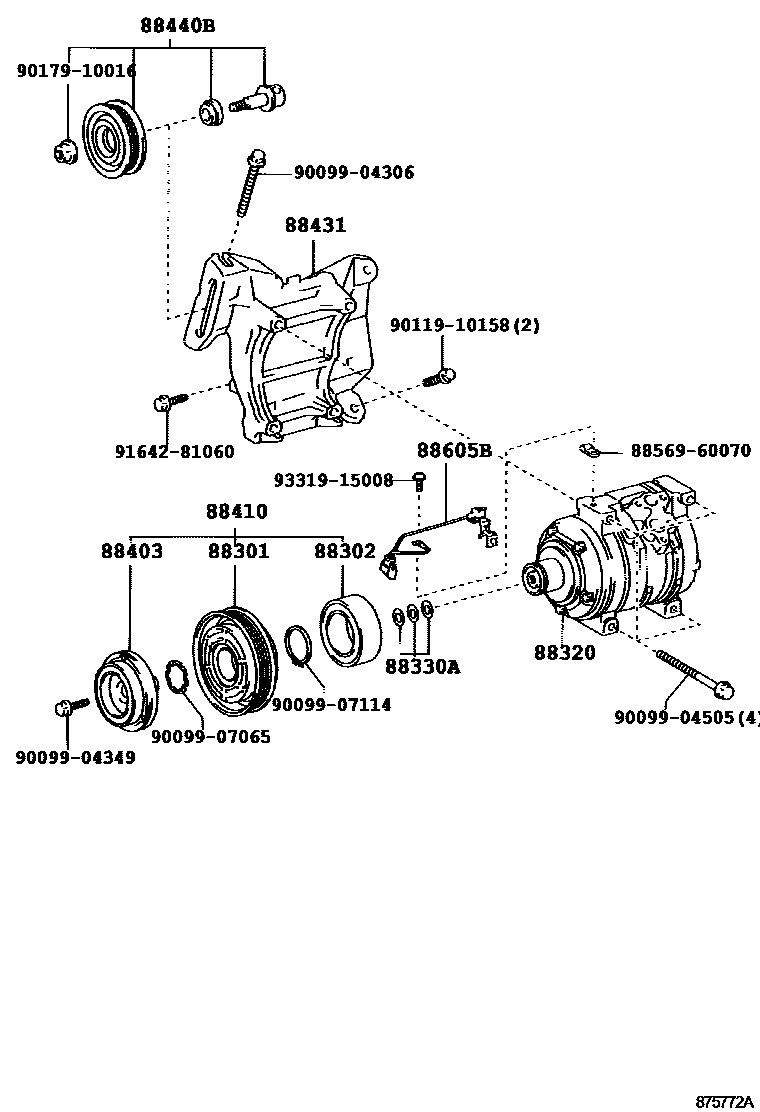

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-53010iGXE10199901-200107

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-44010iGXE10199901-200107

88320COMPRESSOR ASSY, COOLER

main88320-2A051iJCE10200107

main88320-53020iGXE10199901-200107

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGXE10199901-200107

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-32010iGXE10199901-200107

88410CLUTCH ASSY, MAGNET

main88410-53010iGXE10199901-200107

main88410-53020iJCE10200107

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-22350iGXE10199901-200107

88440BPULLEY ASSY, IDLE

main88440-20170iGXE10199901-200107

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-53010iGXE10199901-200507

8856960070CLAMP (FOR COOLER RELAY)

main88569-60070

9009904306

main90099-04306

9009904349

main90099-04349

9009904505

main90099-04505

9009907065

main90099-07065

9009907114

main90099-07114

9011910158

main90119-10158

9017910016

main90179-10016

9164281060

main91642-81060

9331915008

main93319-15008

19 parts on this diagram · 4 diagrams in section
