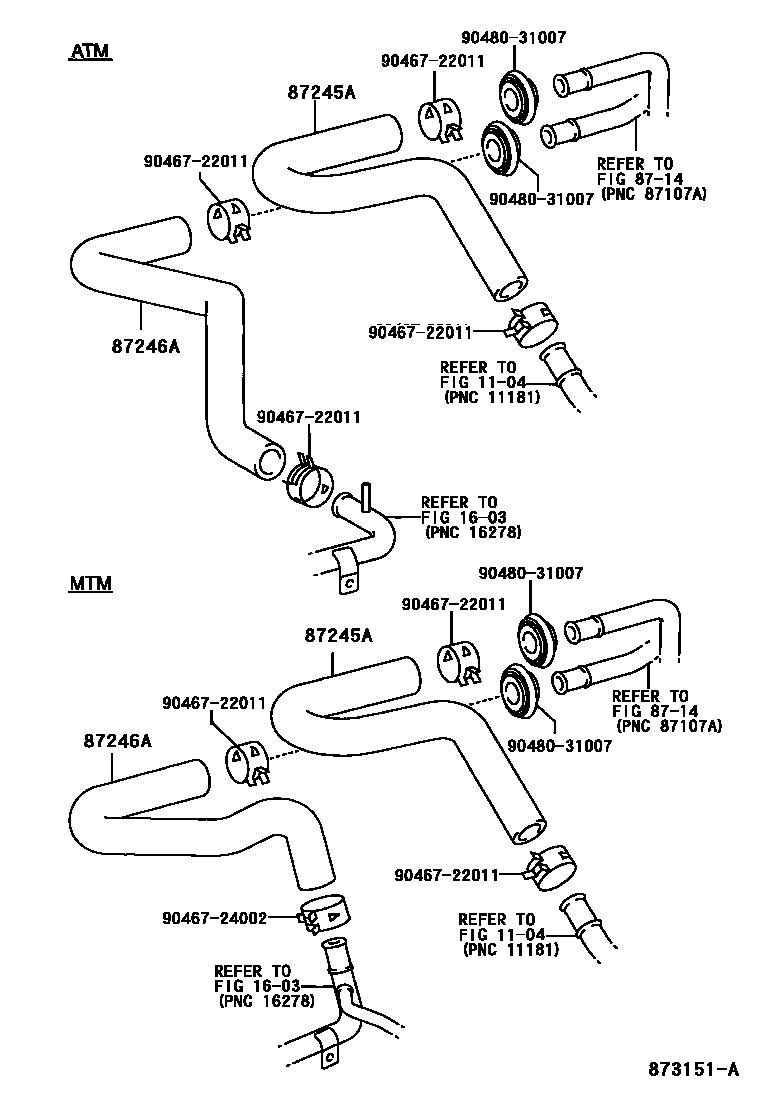

HEATING & AIR CONDITIONING - WATER PIPING

1104

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-53030iGXE10¥1,710199901-200107

main87245-53050iJCE10¥1,850200107

87246AHOSE, HEATER WATER, OUTLET A

main87245-53040iGXE10..ATM¥1,970199901-200107

main87245-53060iGXE10..MTM¥1,550199901-200107

main87245-53080iJCE10¥1,660200107

9046722011

main90467-22011¥240

9046724002

main90467-24002¥240

9048031007

main90480-31007

8 parts on this diagram · 1 diagram in section
