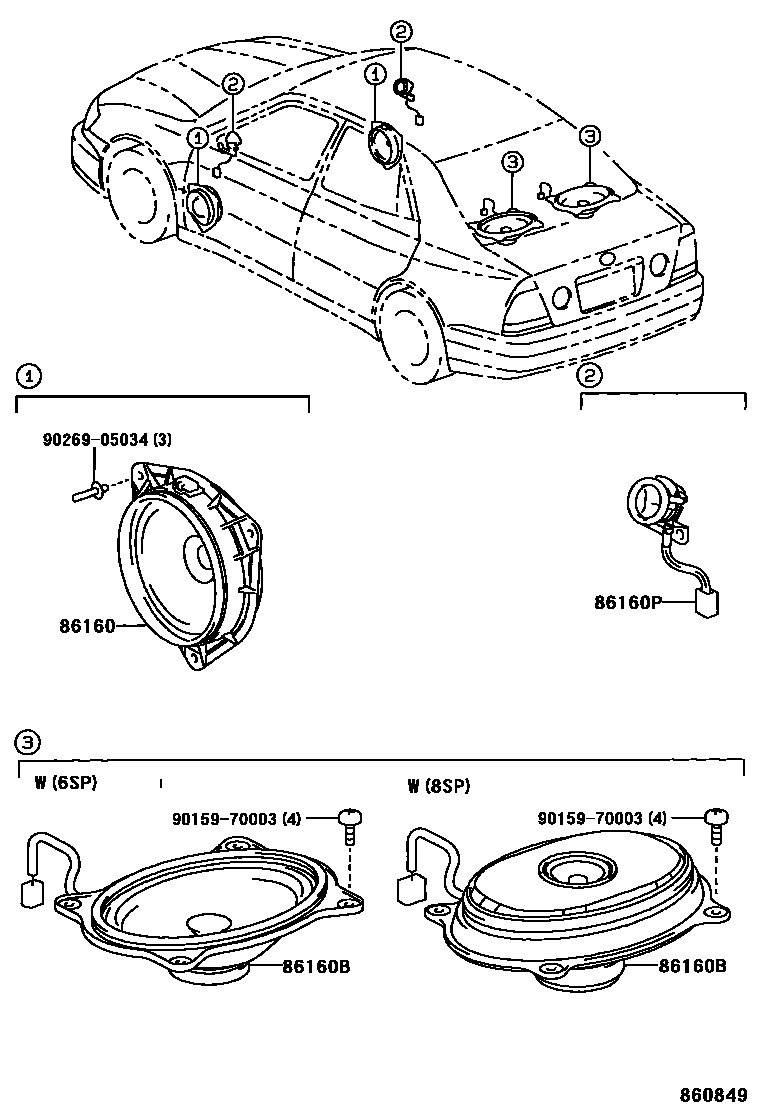

SPEAKER

0001 1 0002 1

86160SPEAKER ASSY, FRONT NO.1

main86160-53020×2iGXE10..EUR200005-200107

main86160-53100×2iGXE10200005-200107

W(8 SPEAKER)

main86160-53130×2iGXE10,JCE10..EUR200107-200303

main86160-53140×2iGXE10,JCE10..ARL200107-200507

W(9 SPEAKER)

main86160-68090×2iGXE10,JCE10..EUR200303-200507

86160BSPEAKER ASSY, REAR

main86160-53040×2iGXE10199901-200005

W(8 SPEAKER)

main86160-53070×2iGXE10..EUR199901-200005

W(6 SPEAKER)

main86160-53110×2iGXE10..SED;JCE10..SED..EUR200107-200507

W(8 SPEAKER)

main86160-53120×2iGXE10..EUR200005-200107

main86160-53150iGXE10,JCE10..WG200107-200507

RH

main86160-53160iGXE10,JCE10..WG200107-200507

LH

main86160-53180×2iGXE10,JCE10..SED..EUR200107-200507

86160PSPEAKER ASSY, FRONT NO.2

main86160-53050iGXE10,JCE10..EUR200107-200507

RH

main86160-53060iGXE10,JCE10..EUR200107-200507

LH

main86160-53080iGXE10..ARL200005-200107

RH

main86160-53090iGXE10..ARL200005-200107

LH

main86160-53190iGXE10,JCE10..ARL200107-200507

RH

main86160-53200iGXE10,JCE10..ARL200107-200507

LH

9015970003

main90159-70003

9026905034

main90269-05034

5 parts on this diagram · 2 diagrams in section
