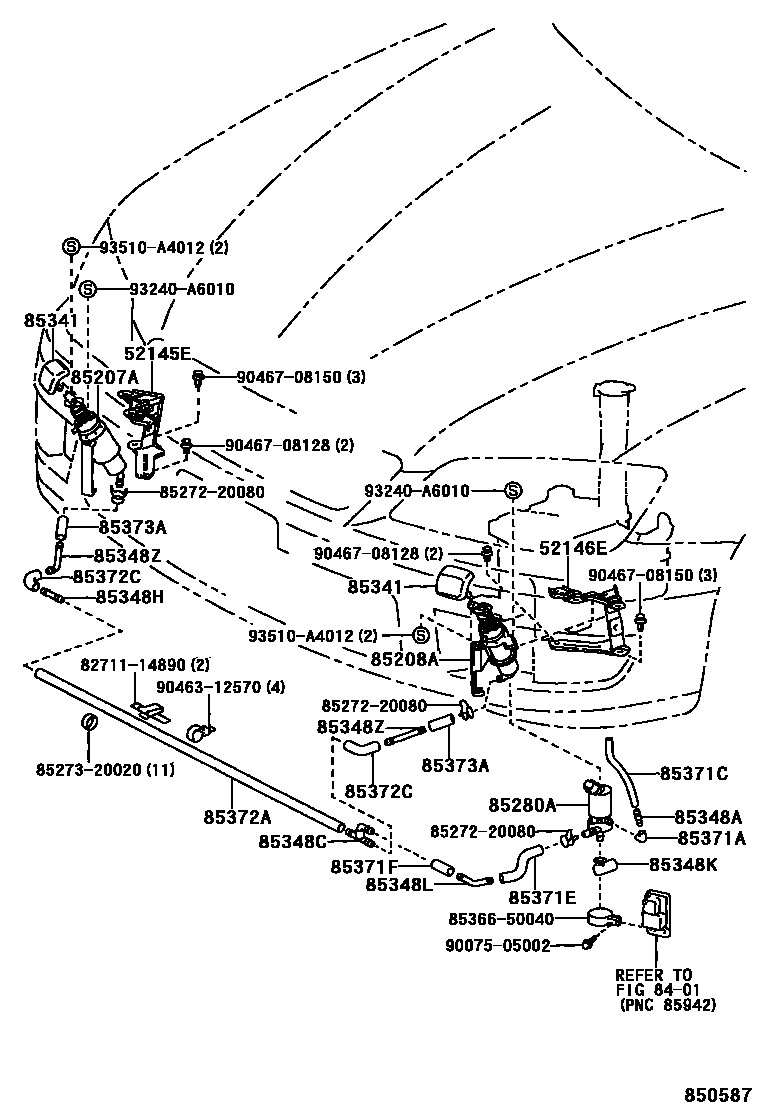

HEADLAMP CLEANER
52145EBRACKET, FRONT BUMPER SIDE MOUNTING, RH
KOREA SPEC
52146EBRACKET, FRONT BUMPER SIDE MOUNTING, LH
KOREA SPEC
8401
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
KOREA SPEC
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
KOREA SPEC
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85341NOZZLE, HEADLAMP CLEANER WASHER
SUPER WHITE 2,040,RH
SU.WHITE PM,051,RH
WHITE PEARL CS.,062,RH
SILVER ME.,1C0,RH
DK.GRAY M.M.,1C6,RH
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2,RH
BLACK,202,RH
RED M.M.,3N3,RH
SUPER RED 5,3P0,RH
BEIGE ME.,4R4,RH
SUPER BRIGHT YELLOW,576,RH
GOLD ME.,585,RH
DK. GREEN MC.,6Q7,RH
DARK GREEN MC.,6R4,RH
BLUE MC.,8M6,RH
DK.BLUE MC.,8N8,RH
GRAYISH BLUE ME.,8N6,RH
DK.BLUE M.M.,8P4,RH
KOREA SPEC,SUPER WHITE 2,040,RH
KOREA SPEC,WHITE PEARL CS.,062,RH
KOREA SPEC,SILVER.ME,1C0,RH
KOREA SPEC,DK.GRAY MM,1C6,RH
KOREA SPEC,GRAY ME,1D2,RH
KOREA SPEC,BLACK,202,RH
KOREA SPEC,SUPER RED 5,3P0,RH
KOREA SPEC,BEIGE ME.,4R4,RH
KOREA SPEC,SU BRIGHT YELLOW,576,RH
KOREA SPEC,GOLD ME.,585,RH
KOREA SPEC,DARK GREEN MC.,6R4,RH
KOREA SPEC,DK.BLUE MC.,8N8,RH
KOREA SPEC,GRAYISH BLUE ME.,8N6,RH
KOREA SPEC,DK.BLUE M.M.,8P4,RH
SUPER WHITE 2,040,RH
WHITE PEARL CS.,062,RH
SILVER ME.,1C0,RH
DK.GRAY M.M.,1C6,RH
BLACK,202,RH
SUPER RED 5,3P0,RH
BEIGE ME.,4R4,RH
SUPER BRIGHT YELLOW,576,RH
GOLD ME.,585,RH
DARK GREEN MC.,6R4,RH
DK.BLUE MC.,8N8,RH
GRAYISH BLUE ME.,8N6,RH
DK.BLUE M.M.,8P4,RH
SUPER WHITE 2,040,LH
SU.WHITE PM,051,LH
WHITE PEARL CS.,062,LH
SILVER ME.,1C0,LH
DK.GRAY M.M.,1C6,LH
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2,LH
BLACK,202,LH
RED M.M.,3N3,LH
SUPER RED 5,3P0,LH
BEIGE ME.,4R4,LH
SUPER BRIGHT YELLOW,576,LH
GOLD ME.,585,LH
DK. GREEN MC.,6Q7,LH
DARK GREEN MC.,6R4,LH
BLUE MC.,8M6,LH
DK.BLUE MC.,8N8,LH
GRAYISH BLUE ME.,8N6,LH
DK.BLUE M.M.,8P4,LH
KOREA SPEC,SUPER WHITE 2,040,LH
KOREA SPEC,WHITE PEARL CS.,062,LH
KOREA SPEC,SILVER ME.,1C0,LH
KOREA SPEC,DK.GRAY MM,1C6,LH
KOREA SPEC,GRAY ME,1D2,LH
KOREA SPEC,BLACK,202,LH
KOREA SPEC,SUPER RED 5,3P0,LH
KOREA SPEC,BEIGE ME.,4R4,LH
KOREA SPEC,SU BRIGHT YELLOW,576,LH
KOREA SPEC,GOLD ME.,585,LH
KOREA SPEC,DARK GREEN MC.,6R4,LH
KOREA SPEC,DK.BLUE MC.,8N8,LH
KOREA SPEC,GRAYISH BLUE ME.,8N6,LH
KOREA SPEC,DK.BLUE M.M.,8P4,LH
SUPER WHITE 2,040,LH
WHITE PEARL CS.,062,LH
SILVER ME.,1C0,LH
DK.GRAY M.M.,1C6,LH
BLACK,202,LH
SUPER RED 5,3P0,LH
BEIGE ME.,4R4,LH
SUPER BRIGHT YELLOW,576,LH
GOLD ME.,585,LH
DARK GREEN MC.,6R4,LH
DK.BLUE MC.,8N8,LH
GRAYISH BLUE ME.,8N6,LH
DK.BLUE M.M.,8P4,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=15
85371CHOSE, HEADLAMP CLEANER, NO.1
L=120
85371EHOSE, HEADLAMP CLEANER, NO.3
85371FHOSE, HEADLAMP CLEANER, NO.4
L=45
85372AHOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)
L=1320
L=1320(*H,L=940)
85372CHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
L=35
85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
L=45
8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14890
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8536650040COVER, WASHER TANK SERVICE HOLE COVER
main85366-50040
9007505002
main90075-05002
9046312570
main90463-12570
9046708128
main90467-08128
9046708150
main90467-08150
93240A6010
main93240-A6010
93510A4012
main93510-A4012
30 parts on this diagram · 3 diagrams in section
