E
EPC Data

WINDSHIELD WIPER

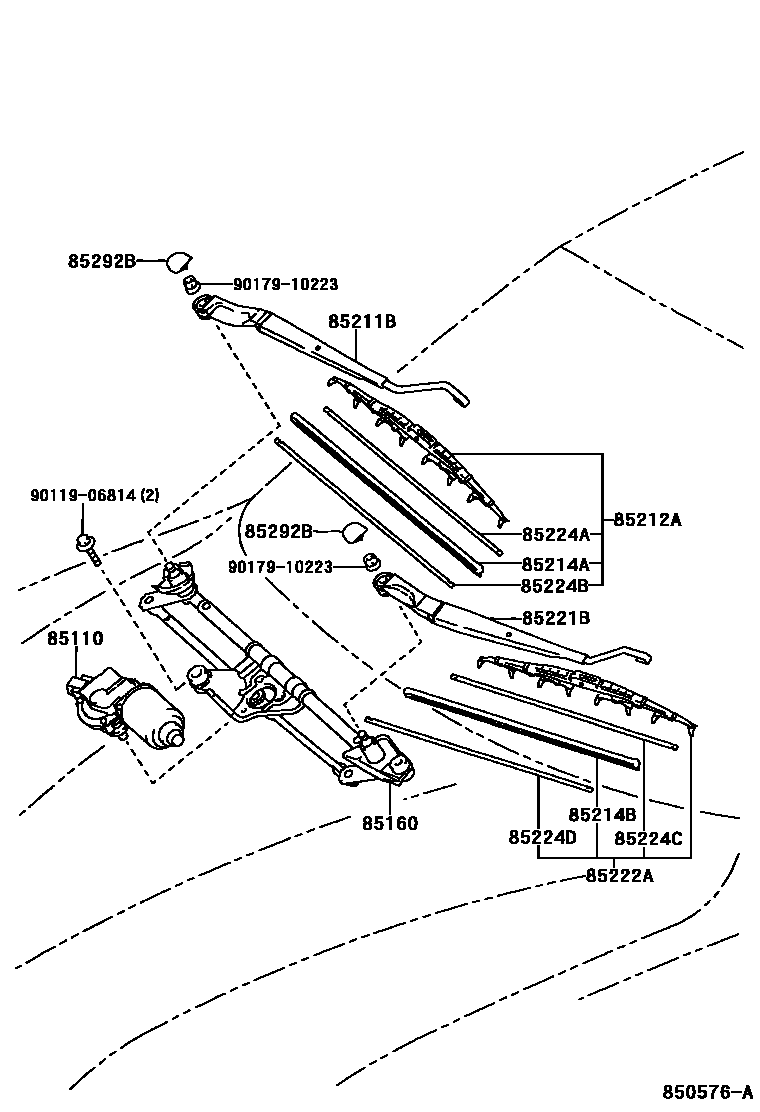

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-53020i200107
main85110-53030i199901-200107
85160LINK ASSY, WINDSHIELD WIPER
main85150-53010i199901-200107
main85150-53020i199901-200107
85211BARM, FRONT WIPER, RH
main85211-53010i199901-200107
main85211-53020i200107
main85211-53030i199901-200107
85212ABLADE, FR WIPER, RH
main85212-53010i200107
sub85212-46010
main85212-53020i200107
sub85212-12400
main85212-53030i199901-200008
main85212-53050i200107
sub85212-53051
85214ARUBBER, WIPER, RH
main85214-22410i200107-200405
main85214-33080i199901-200008
main85214-33110i199901-200008
main85214-48010i200107
main85214-53010i199901-200008
main85214-53040i200107
sub85214-53041
85214BRUBBER, WIPER, LH
main85214-10080i199901-200008
main85214-24050i200405
sub85214-24051
main85214-33080i199901-200008
main85214-35040i199901-200008
HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC
main85214-48010i200107
main85214-48020i200107-200405
HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC
sub85214-53041
main85214-53020i199901-200008
main85214-53040i200405
BLUNEI OR HONGKONG OR SINGAPORE OR THAILAND SPEC
sub85214-53041
main85214-53050i200008-200107
85221BARM, FRONT WIPER, LH
main85221-53010i199901-200107
HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC
main85221-53020i200107
main85221-53030i199901-200107
main85221-53040i200107
85222ABLADE, FR WIPER, LH
main85222-24100i200405
sub85222-24101
main85222-3H060i199901-200008
HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC
main85222-43020i200107-200405
sub85222-43021
main85222-48030i200107-200405
HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC
sub85222-48111
main85222-53010i200405
BLUNEI OR HONGKONG OR SINGAPORE OR THAILAND SPEC
sub85222-53011
main85222-53020i200107
main85222-53030i199901-200107
85224APLATE, WIPER RUBBER BACKING, NO.1
main85224-33040i199901-200107
main85224-35040i199901-200107
85224BPLATE, WIPER RUBBER BACKING, NO.2
main85224-33040i199901-200107
main85224-35040i199901-200107
85224CPLATE, WIPER RUBBER BACKING, NO.3
main85224-30470i199901-200107
main85224-33040i199901-200107
main85224-35040i199901-200107
HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC
85224DPLATE, WIPER RUBBER BACKING, NO.4
main85224-30470i199901-200107
main85224-33040i199901-200107
main85224-35040i199901-200107
HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC
85292BCAP, FRONT WIPER ARM HEAD
main85292-13010×2i199901-200107
9011906814
main90119-06814
9017910223
main90179-10223

15 parts on this diagram · 4 diagrams in section
