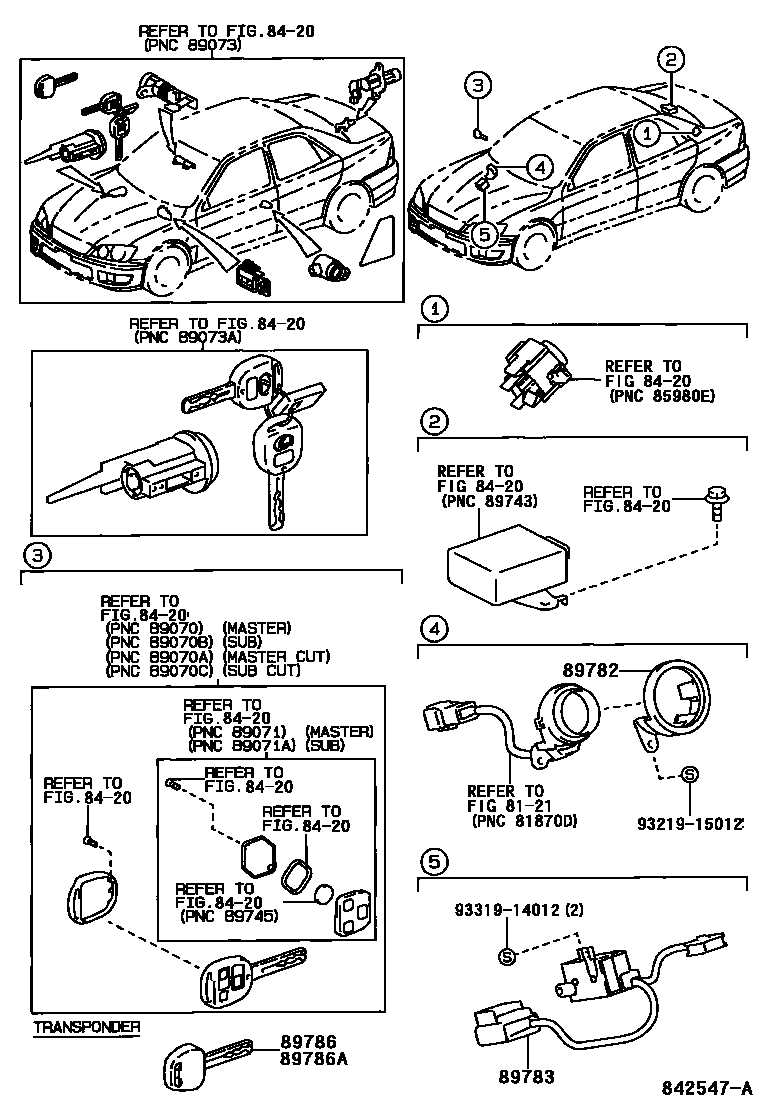

ANTI-THEFT DEVICE

0001 1IMMOBILIZER 0002 1THEFT WARNING SYSTEM

8121

8420

89782COIL, TRANSPONDER KEY

main89782-41010iGXE10199901-200107

89783AMPLIFIER, TRANSPONDER KEY

main89783-53010iGXE10,JCE10..LHD199901-200205

sub89783-53011

main89783-53011iGXE10,JCE10..LHD200205

sub89783-53012

main89783-53020iGXE10,JCE10..RHD199901-200205

sub89783-53021

main89783-53021iGXE10,JCE10..RHD200205

sub89783-53022

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-50030iGXE10199901-200107

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-50040iGXE10199901-200107

9321915012

main93219-15012

9331914012

main93319-14012

8 parts on this diagram · 2 diagrams in section
