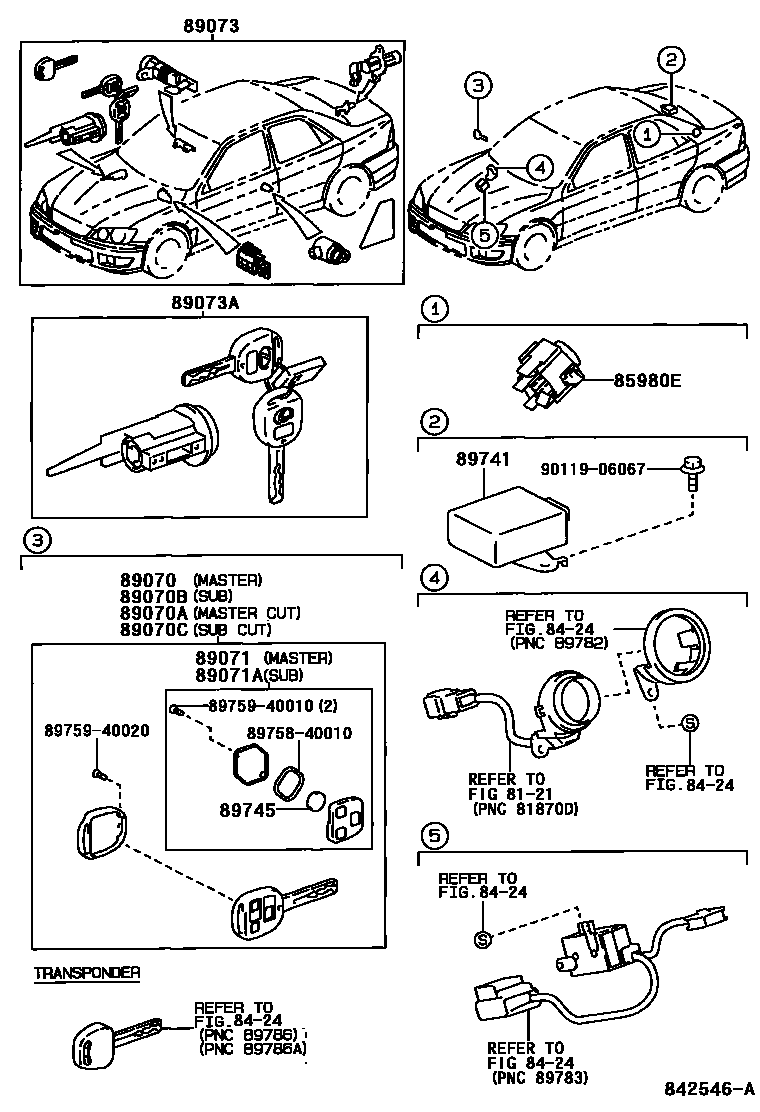

WIRELESS DOOR LOCK
8121
8424
85980ERELAY ASSY, DOOR CONTROL
89070TRANSMITTER ASSY, DOOR CONTROL
sub89070-48202
sub89070-53091
sub89070-53091
SINGAPORE OR THAILAND SPEC
TAIWAN SPEC
HONG KONG SPEC
sub89070-53551
sub89070-53571
89070ATRANSMITTER, DOOR CONTROL (CUT KEY)
sub89070-48332
sub89070-53151
sub89070-53151
SINGAPORE OR THAILAND SPEC
TAIWAN SPEC
HONG KONG SPEC
sub89070-53701
sub89070-53831
89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
SINGAPORE SPEC
sub89071-53011
sub89071-53012
sub89071-53021
SINGAPORE OR THAILAND SPEC
TAIWAN SPEC
HONG KONG SPEC
BRUNEI OR HONG KONG OR THAILAND SPEC
KOREA SPEC
SINGAPORE SPEC
CHINA SPEC OR CHINA SPEC & W(DOUBLE-LOCK)
89071AMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL(SUB KEY)
CHINA SPEC & W(DOUBLE-LOCK)
TAIWAN SPEC & W(DOBULE DOOR ROCK)
sub89071-60081
W(DOUBLE-LOCK)
89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
sub69005-53121
sub69005-53141
sub69005-53151
sub69005-53221
sub69005-53241
sub89073-53081
sub89073-53091
SINGAPORE OR THAILAND SPEC
TAIWAN SPEC
HONG KONG SPEC
sub89073-53201
89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
sub89073-53031
sub89073-53031
SINGAPORE OR THAILAND SPEC
TAIWAN SPEC
HONG KONG SPEC
89741RECEIVER, DOOR CONTROL
sub89741-53021
SINGAPORE OR THAILAND SPEC
SINGAPORE SPEC
HONG KONG SPEC
BRUNEI OR HONG KONG OR THAILAND SPEC
TAIWAN SPEC
KOREA SPEC
CHINA SPEC OR CHINA SPEC & W(DOUBLE-LOCK)
89745BATTERY, TRANSMITTER
W(DOUBLE-LOCK)
SUB KEY=W/WIRELESS DOOR LOCK
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975940020SCREW, DOOR CONTROL TRANSMITTER
main89759-40020
9011906067
main90119-06067
17 parts on this diagram · 3 diagrams in section
