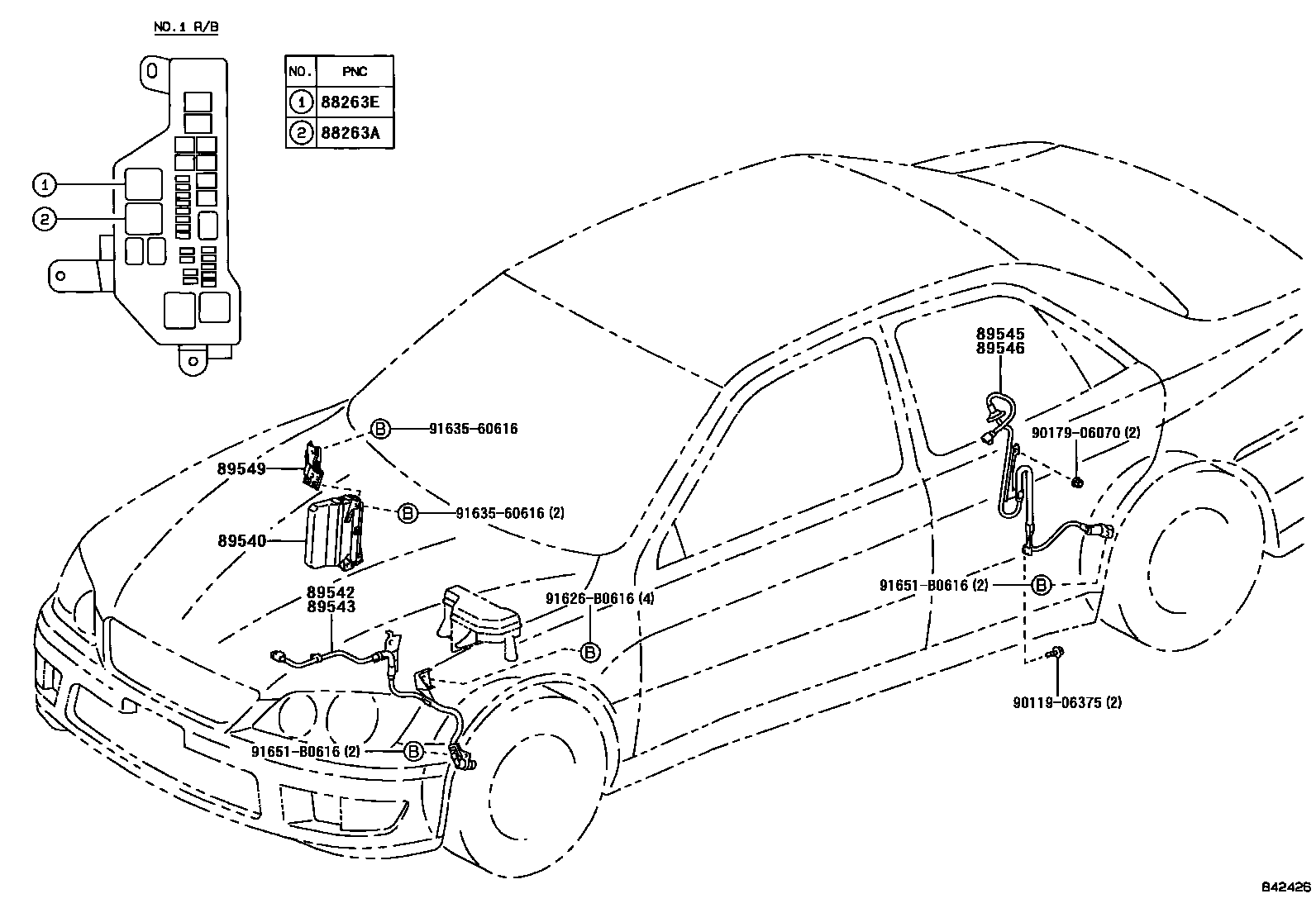

ABS & VSC

0001 1 0002 1 0003 1 0004 1

88263ARELAY, SKID CONTROL

main88263-24020iGXE10199901-200107

88263ERELAY, SKID CONTROL NO.2

main88263-24030iGXE10199901-200107

89540COMPUTER ASSY, SKID CONTROL

main89540-53030iGXE10..RHD199901-200107

main89540-53040iGXE10..LHD199901-200107

main89540-53120iJCE10..RHD;GXE10..RHD..SED200107

main89540-53130iJCE10..RHD200107

W(VSC)

main89540-53140iJCE10..LHD;GXE10..LHD..SED200107

main89540-53160iJCE10..LHD200107

W(VSC)

main89540-53200iGXE10..RHD..WG200208

main89540-53210iGXE10..LHD..WG200208

89542SENSOR, SPEED, FRONT RH

main89542-51010iGXE10199901-200107

89543SENSOR, SPEED, FRONT LH

main89543-51010iGXE10199901-200005

main89543-53010iGXE10200005-200107

89545SENSOR, SPEED, REAR RH

main89545-30060iGXE10,JCE10200107

main89545-51010iGXE10199901-200107

sub89545-30060

89546SENSOR, SPEED, REAR LH

main89546-30060iGXE10,JCE10200107

main89546-51010iGXE10199901-200107

sub89546-30060

89549BRACKET, SKID CONTROL COMPUTER

main89549-53010iGXE10..RHD199901-200107

9011906375

main90119-06375

9017906070

main90179-06070

91626B0616

main91626-B0616

9163560616

main91635-60616

91651B0616

main91651-B0616

13 parts on this diagram · 4 diagrams in section
