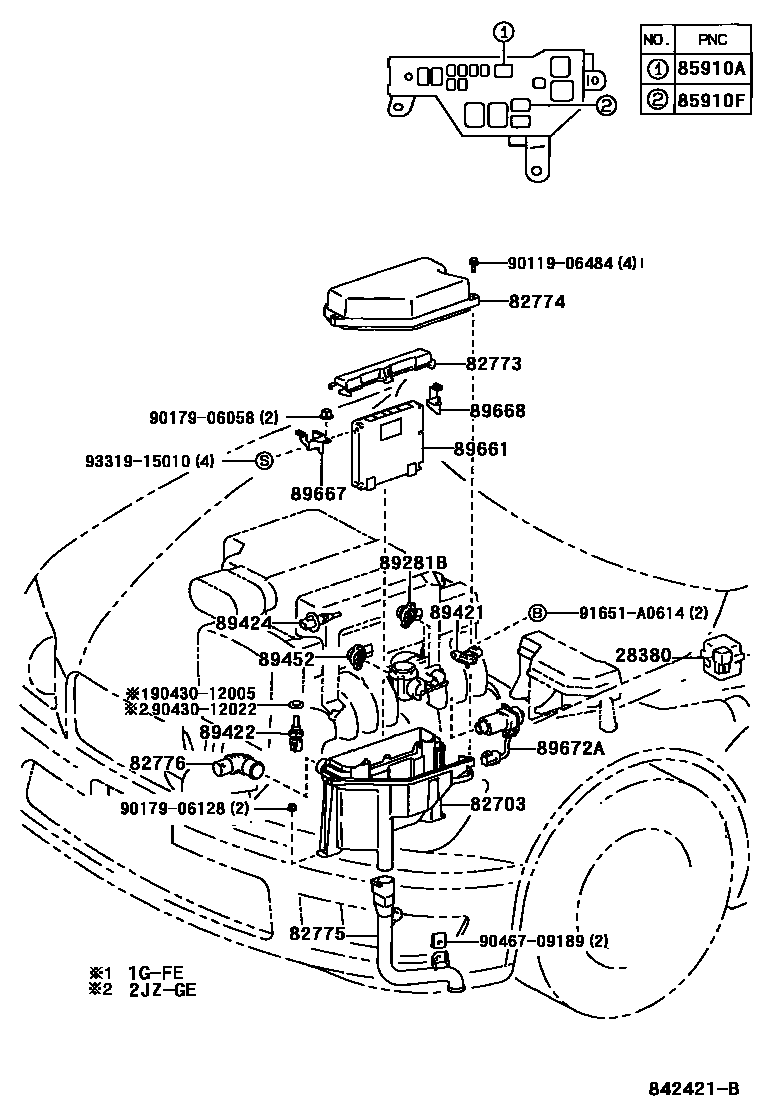

ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
82703BOX SUB-ASSY, ENGINE ROOM ECU
82773HOOD, ENGINE ROOM ECU
82776DUCT, ENGINE ROOM ECU OUTLET
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89281BSENSOR, ACCEL POSITION
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
sub89661-53031
HONG KONG SPEC
sub89661-53041
HONG KONG SPEC
sub89661-53051
SOUTH AFRICA SPEC
MOROCCO SPEC
SOUTH AFRICA SPEC
sub89661-53061
MOROCCO SPEC
SOUTH AFRICA SPEC
MOROCCO SPEC
SOUTH AFRICA SPEC
TAIWAN SPEC
CHINA SPEC
KOREA SPEC
HONG KONG SPEC
HONG KONG SPEC
PART NUMBER LABEL=89661-53211
SOUTH AFRICA SPEC
MOROCCO SPEC
SOUTH AFRICA SPEC
MOROCCO SPEC
TAIWAN SPEC
CHINA SPEC
KOREA SPEC
PART NUMBER LABEL=89661-53321
PART NUMBER LABEL=89661-53331
PART NUMBER LABEL=89661-53342
PART NUMBER LABEL=89661-53351
PART NUMBER LABEL=89661-53371
PART NUMBER LABEL=89661-53382
PART NUMBER LABEL=89661-53391
PART NUMBER LABEL=89661-53460
PART NUMBER LABEL=89661-53461
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906484
main90119-06484
9017906058
main90179-06058
9017906128
main90179-06128
9043012005
main90430-12005
9043012022
main90430-12022
9046709189
main90467-09189
91651A0614
main91651-A0614
9331915010
main93319-15010
25 parts on this diagram · 1 diagram in section
