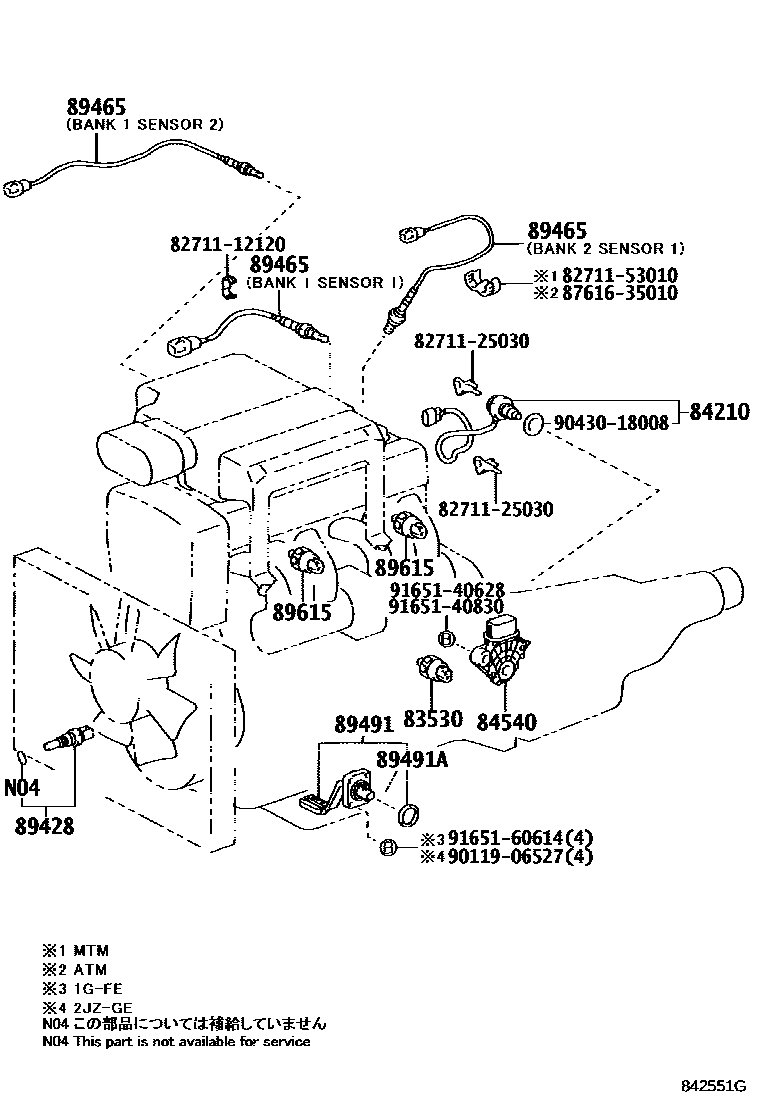

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1COMBINATION SWITCH 0009 1ROOF,FLOOR,DOOR,SEAT & LUGGAG0010 1ROOF,FLOOR,DOOR,SEAT & LUGGAG

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGXE10,JCE10200107

DENSO

main83530-60020iGXE10199901-200107

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-53010iGXE10..MTM199901-200107

sub84210-35030

84540SWITCH ASSY, NEUTRAL START

main84540-30320iJCE10200107

main84540-53010iGXE10..ATM199901-200107

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20110iGXE10199901-200107

89465SENSOR, OXYGEN

main89465-53030iGXE10199901-200107

BANK1 SENSOR1

main89465-53040iGXE10200107

BANK2 SENSOR1

main89465-53050iGXE10199901-200107

EXHAUST PIPE

main89465-53120iJCE10200107-200212

EXHAUST PIPE

main89465-53150iJCE10200107

BANK2 SENSOR1

main89465-53180iJCE10..RHD200107

BANK1 SENSOR2

main89465-53190iJCE10200212

EXHAUST PIPE

main89465-53200iJCE10..LHD200107

BANK1 SENSOR2

main89465-53210iJCE10200107

BANK1 SENSOR1

89491SENSOR, ENGINE OIL LEVEL

main89491-30010iJCE10200107

main89491-53010iGXE10199901-200107

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGXE10199901-200107

main90430-27001iJCE10200107

89615SENSOR, KNOCK CONTROL

main89615-12090×2iJCE10200107

main89615-22050×2iGXE10199901-200107

main89615-52010×2iGXE10200309

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

8271125030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-25030

8271153010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-53010

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

9011906527

main90119-06527

9043018008

main90430-18008

9165140628

main91651-40628

9165140830

main91651-40830

9165160614

main91651-60614

17 parts on this diagram · 10 diagrams in section
