82111WIRE, ENGINE ROOM MAIN

main82111-53110iGXE10..RHD..EUR¥139,000199901-200005

main82111-53111iGXE10..RHD..EUR¥151,000200005-200107

main82111-53120iGXE10..RHD..EUR¥139,000199901-200005

W(HEADLAMP CLEANER)

main82111-53121iGXE10..RHD..EUR¥151,000200005-200107

W(HEADLAMP CLEANER)

main82111-53130iGXE10..LHD¥168,000199901-200005

main82111-53131iGXE10..LHD¥168,000200005-200107

main82111-53140iGXE10..LHD¥168,000199901-200005

W(HEADLAMP CLEANER)

main82111-53141iGXE10..LHD¥168,000200005-200107

W(HEADLAMP CLEANER)

main82111-53150iGXE10..LHD¥151,000199901-200005

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-53151iGXE10..LHD¥168,000200005-200107

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-53160iGXE10..LHD¥151,000199901-200005

W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP CLEANER)

main82111-53161iGXE10..LHD¥168,000200005-200107

W(DAY TIME RUNNING LIGHT SYSTEM & HEADLAMP CLEANER)

main82111-53170iGXE10..ARL¥139,000199901-200005

main82111-53171iGXE10..ARL¥139,000200005-200107

main82111-53260iGXE10..LHD..ATM¥168,000200011-200107

KOREA SPEC & W(HEADLAMP CLEANER)

main82111-53500iGXE10..RHD¥151,000200107-200208

sub82111-53501¥152,000

main82111-53501iGXE10..RHD¥152,000200208

main82111-53510iGXE10..RHD¥151,000200107-200208

W(HEADLAMP LEVELING & HEADLAMP CLEANER)

sub82111-53511¥152,000

main82111-53511iGXE10..RHD¥152,000200208

W(HEADLAMP CLEANER & HEADLAMP LEVELING SWITCH)

main82111-53540iGXE10..LHD¥187,000200107-200208

sub82111-53541¥186,000

main82111-53541iGXE10..LHD¥186,000200208

main82111-53550iGXE10..LHD¥187,000200107-200208

W(HID AUTO LEVELING & HEADLAMP CLEANER)

sub82111-53551¥186,000

main82111-53551iGXE10..LHD¥186,000200208

W(HEADLAMP CLEANER & HEADLAMP LEVELING SWITCH)

main82111-53560iGXE10..LHD..ATM¥187,000200107-200208

KOREA SPEC

main82111-53561iGXE10..LHD..ATM¥186,000200208

KOREA SPEC

main82111-53570iGXE10..LHD..ATM¥187,000200107-200208

KOREA SPEC & W(HEADLAMP CLEANER) & W(HEDLAMP LEVELING)

main82111-53571iGXE10..LHD..ATM¥186,000200208

KOREA SPEC & W(HEADLAMP CLEANER) & W(HEDLAMP LEVELING)

main82111-53600iJCE10..RHD¥168,000200107-200208

main82111-53601iJCE10..RHD¥168,000200208

main82111-53620iJCE10..LHD¥187,000200107-200208

main82111-53621iJCE10..LHD¥186,000200208

main82111-53630iJCE10..ARL¥151,000200107-200208

BLUNEI OR HONGKONG OR SINGAPORE OR THAILAND SPEC

main82111-53631iJCE10..ARL¥152,000200208

BLUNEI OR HONGKONG OR SINGAPORE OR THAILAND SPEC

82123WIRE, ENGINE, NO.3

main82123-53010iGXE10..RHD¥6,300199901-200107

sub82123-53050¥6,300

main82123-53020iGXE10..LHD¥14,600199901-200005

main82123-53021iGXE10..LHD¥7,400200005-200107

main82123-53041iJCE10..LHD¥6,300200107

main82123-53050iGXE10,JCE10..RHD¥6,300200107

82210CFUSIBLE LINK

main90982-08202iGXE10¥700199901-200107

60A,TERM.:MALE,YEL

main90982-08274iGXE10,JCE10¥480199901-200107

120A,TERM.:MALE,WHT

main90982-08283iGXE10¥440199901-200107

30A,TERM.:FEMALE,PNK

main90982-08284iGXE10¥590199901-200107

40A,TERM.:FEMALE,GRN

82345DIODE

main82345-12050iGXE10,JCE10¥790200107

NO.1

main82345-22051iGXE10¥980199901-200107

main82345-22051iGXE10,JCE10¥980200107

NO.2

82824CONNECTOR, WIRING HARNESS

main82824-12210iGXE10,JCE10¥2,520200107

NO.1

main82824-20110iGXE10,JCE10¥1,850200107

NO.2

main82824-20130iGXE10,JCE10¥670200107

NO.3

8401

9011906915

main90119-06915¥60

9011908981

main90119-08981¥160

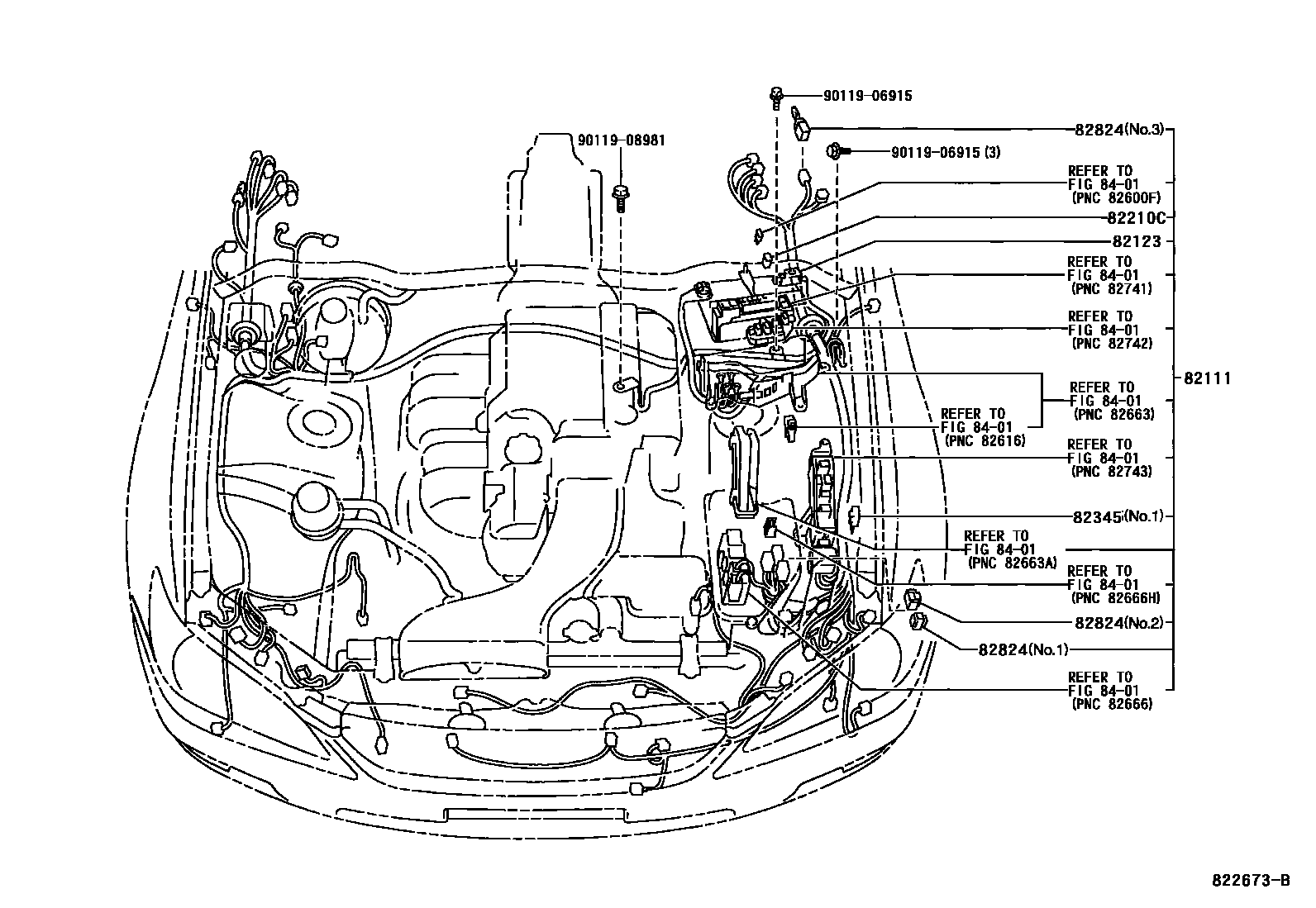

8 parts on this diagram · 20 diagrams in section
