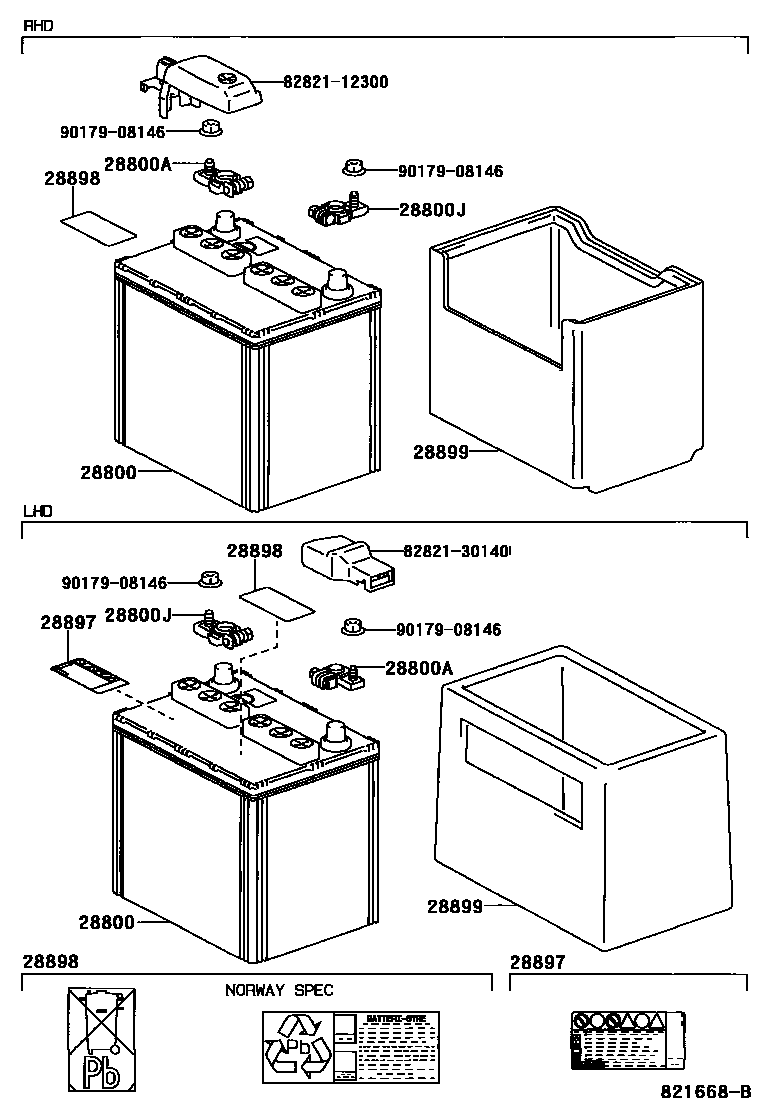

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14010i1GFE..GXE10..LHD199901-200107

55D23R

sub28800-15020

main28800-15022i1GFE..GXE10..LHD200107-200507

55D23R

sub28800-15021

main28800-42040i1GFE..GXE10..RHD200003-200107

55D23L

sub28800-42042

main28800-42041i1GFE,2JZGE..GXE10,JCE10..RHD200107-200507

55D23L

sub28800-31260

main28800-42042i1GFE..GXE10..RHD..SED200107-200507

55D23L,COLD SPEC

sub28800-42041

main28800-42042i1GFE..GXE10..RHD..WG200208-200507

55D23L

sub28800-42041

main28800-42061i1GFE..GXE10..RHD200107-200507

55D23L,FURUKAWA

sub28800-42062

main28800-46120i2JZGE..JCE10..LHD200107-200408

80D26R

sub28800-54231

main28800-54232i2JZGE..JCE10..LHD200408-200507

80D26R

sub28800-54231

main28800-70140i1GFE..GXE10..RHD199901-200003

55D23L

sub28800-42042

28800ATERMINAL, BATTERY POSITIVE

main90982-05037i1GFE,2JZGE..GXE10,JCE10..RHD199901-200107

main90982-05042i1GFE..GXE10..LHD199901-200107

28800JTERMINAL, BATTERY NEGATIVE

main90982-06026i1GFE..GXE10199901-200107

sub90982-06060

28897PLATE, BATTERY CAUTION

main28897-50020i2JZGE..JCE10..LHD200107

main28897-50030i1GFE..GXE10..LHD..ATM200411

sub28897-38060

28898PLATE, BATTERY

main28898-46010i1GFE..GXE10..LHD199901-200107

NORWAY SPEC

main28898-46020i1GFE,2JZGE..GXE10,JCE10..EUR199901-200107

28899INSULATOR, BATTERY

main28899-76010i1GFE..GXE10199901-200507

main28899-76020i2JZGE..JCE10..LHD200107-200507

8282112300RETAINER, HEADLAMP HARNESS

main82821-12300

8282130140RETAINER, HEADLAMP HARNESS

main82821-30140

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section
