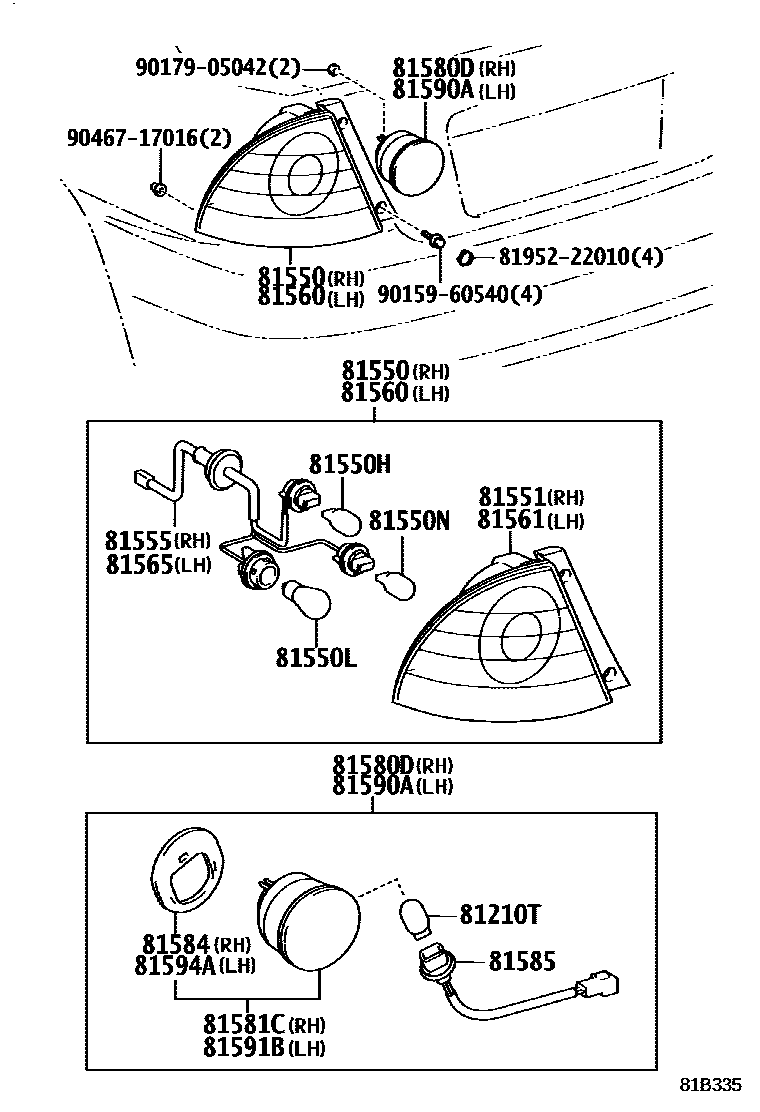

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81210TBULB, REAR FOG LAMP

main90981-13043iGXE10199901-200507

12V 21W

81550LAMP ASSY, REAR COMBINATION, RH

main81550-53010iGXE10199901-200004

main81550-53011iGXE10200004-200105

main81550-53011-B0iGXE10200105-200107

METALLIC,040 ,062 ,1C0 ,576 ,585

main81550-53011-B1iGXE10200105-200107

DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8

main81550-53031iGXE10..LHD..ATM200005-200107

KOREA SPEC

81550HBULB, TAIL & STOP LAMP

main90981-11048iGXE10,JCE10200107-200308

12V 21/5W

main90981-13044iGXE10,JCE10..WG200308-200507

12V 21/5W,KOREA SPEC

main90981-13044iGXE10..LHD..ATM199901-200507

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043iGXE10..LHD..ATM199901-200507

12V 21W

main90981-15009iGXE10..LHD..ATM200107-200507

12V 21W,AMBER,KOREA SPEC

main90981-15009iGXE10..LHD..ATM199901-200507

12V 21W,AMBER

main90981-15011iGXE10,JCE10..WG200308-200507

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iGXE10,JCE10..WG200107-200507

12V 16W

main90981-13043iJCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM199901-200507

12V 21W

main90981-13043iGXE10..LHD..ATM200308-200507

12V 21W,KOREA SPEC

81551LENS, REAR COMBINATION LAMP, RH

main81551-53010iGXE10199901-200004

main81551-53011iGXE10200004-200105

main81551-53011-B0iGXE10200105-200106

METALLIC,040 ,062 ,1C0 ,576 ,585

main81551-53011-B1iGXE10200105-200106

DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8

main81551-53012-B0iGXE10,JCE10..SED200106-200308

METALLIC,040 ,062 ,1C0 ,576 ,585

main81551-53012-B1iGXE10,JCE10..SED200106-200308

DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8

main81551-53031iGXE10..LHD..ATM200005-200107

KOREA SPEC

main81551-53032-B0iGXE10..LHD..ATM200107-200308

KOREA SPEC,DARK METALLIC,1C6 ,202 ,6R4 ,8N8

main81551-53032-B1iGXE10..LHD..ATM200107-200308

KOREA SPEC,METALLIC,040 ,062 ,1C0 ,3P0 ,576 ,585

main81551-53050-B0iGXE10,JCE10..WG200107-200308

METALLIC,040 ,062 ,1C0 ,3P0 ,576 ,585

main81551-53050-B1iGXE10,JCE10..WG200107-200308

DARK METALLIC,1C6 ,202 ,6R4 ,8N8

main81551-53080iGXE10,JCE10..SED200308-200507

main81551-53090iGXE10,JCE10..RHD..SED..EUR200401-200507

ENGLAND SPEC

main81551-53100iGXE10..LHD..ATM200308-200507

KOREA SPEC

main81551-53130iGXE10,JCE10..WG200308-200507

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-53010iGXE10,JCE10..SED199901-200507

main81555-53030iGXE10..LHD..ATM200011-200507

KOREA SPEC

main81555-53040iGXE10,JCE10..WG200107-200507

81560LAMP ASSY, REAR COMBINATION, LH

main81560-53010iGXE10199901-200004

main81560-53011iGXE10200004-200105

main81560-53011-B0iGXE10200105-200107

METALLIC,040 ,062 ,1C0 ,576 ,585

main81560-53011-B1iGXE10200105-200107

DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8

main81560-53031iGXE10..LHD..ATM200005-200107

KOREA SPEC

81561LENS, REAR COMBINATION LAMP, LH

main81561-53010iGXE10199901-200004

main81561-53011iGXE10200004-200105

main81561-53011-B0iGXE10200105-200106

METALLIC,040 ,062 ,1C0 ,576 ,585

main81561-53011-B1iGXE10200105-200106

DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8

main81561-53012-B0iGXE10200106-200308

METALLIC,040 ,062 ,1C0 ,576 ,585

main81561-53012-B1iGXE10200106-200308

DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8

main81561-53031iGXE10..LHD..ATM200005-200107

KOREA SPEC

main81561-53032-B0iGXE10..LHD..ATM200107-200308

KOREA SPEC,METALLIC,040 ,062 ,1C0 ,3P0 ,576 ,585

main81561-53032-B1iGXE10..LHD..ATM200107-200308

KOREA SPEC,DARK METALLIC,1C6 ,202 ,6R4 ,8N8

main81561-53050-B0iGXE10,JCE10..WG200107-200308

METALLIC,040 ,062 ,1C0 ,3P0 ,576 ,585

main81561-53050-B1iGXE10,JCE10..WG200107-200308

DARK METALLIC,1C6 ,202 ,6R4 ,8N8

main81561-53080iGXE10,JCE10..SED200308-200507

main81561-53090iGXE10,JCE10..RHD..SED..EUR200401-200507

ENGLAND SPEC

main81561-53100iGXE10..LHD..ATM200308-200507

KOREA SPEC

main81561-53130iGXE10,JCE10..WG200308-200507

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-53010iGXE10199901-200507

main81555-53040iGXE10,JCE10..WG200107-200507

main81565-53030iGXE10..LHD..ATM200011-200507

KOREA SPEC

81580DLAMP ASSY, REAR, RH

main81580-53020iGXE10199901-200107

81581CLENS AND BODY, REAR LAMP, RH

main81581-53020iGXE10199901-200107

main81581-53021iGXE10,JCE10..SED200107

main81581-53050iGXE10,JCE10..WG200107

81584PACKING, REAR LAMP RH

main81584-53010iGXE10199901-200507

main81584-53040iGXE10,JCE10..WG200107-200507

81585SOCKET & WIRE, REAR LAMP

main81585-53020iGXE10199901-200107

main81585-53050iGXE10,JCE10..WG200107

81590ALAMP ASSY, REAR, LH

main81590-53020iGXE10199901-200107

81591BLENS AND BODY, REAR LAMP, LH

main81591-53020iGXE10199901-200107

main81591-53021iGXE10,JCE10..SED200107

main81591-53050iGXE10,JCE10..WG200107

81594AGASKET, REAR LAMP LH

main81584-53010iGXE10199901-200507

main81584-53040iGXE10,JCE10..WG200107-200507

8195222010SOCKET, FAILURE INDICATOR LAMP BULB

main81952-22010

9015960540

main90159-60540

9017905042

main90179-05042

9046717016

main90467-17016

21 parts on this diagram · 3 diagrams in section
