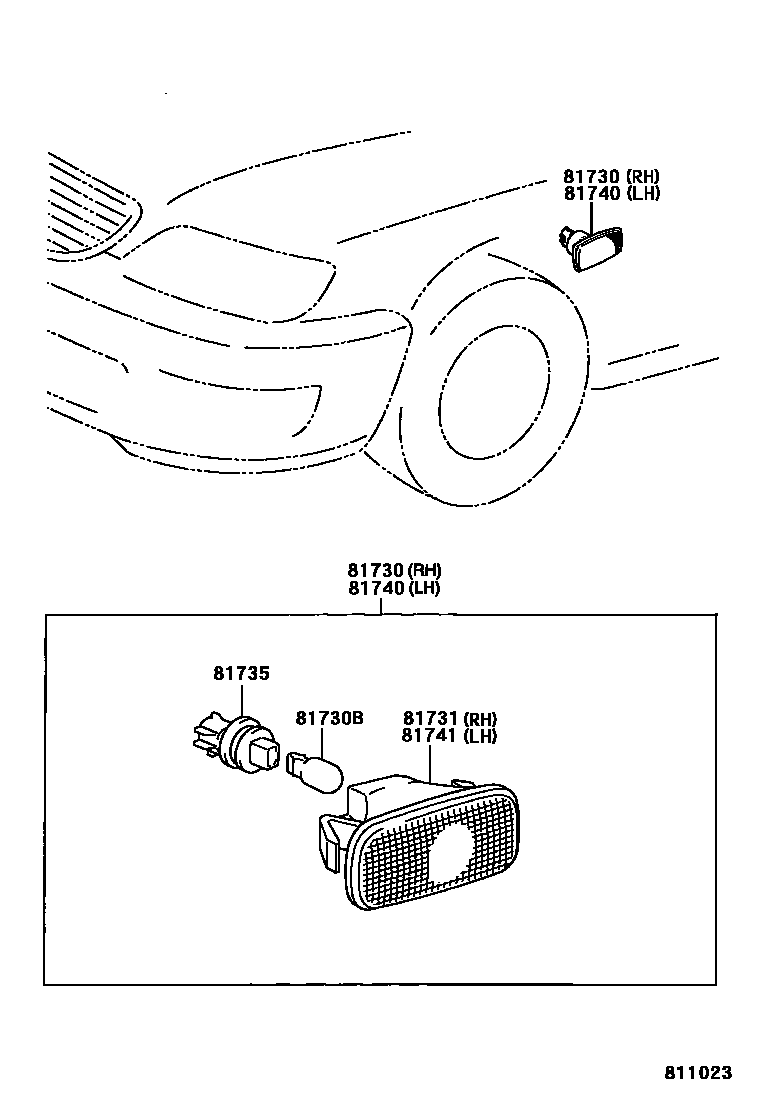

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-53010iGXE10199901-200107

sub81730-53011

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050iGXE10199901-200107

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-53010iGXE10199901-200507

sub81731-53011

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-60001iGXE10199901-200107

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-53010iGXE10199901-200107

sub81730-53011

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-53010iGXE10199901-200507

sub81731-53011

6 parts on this diagram · 1 diagram in section
