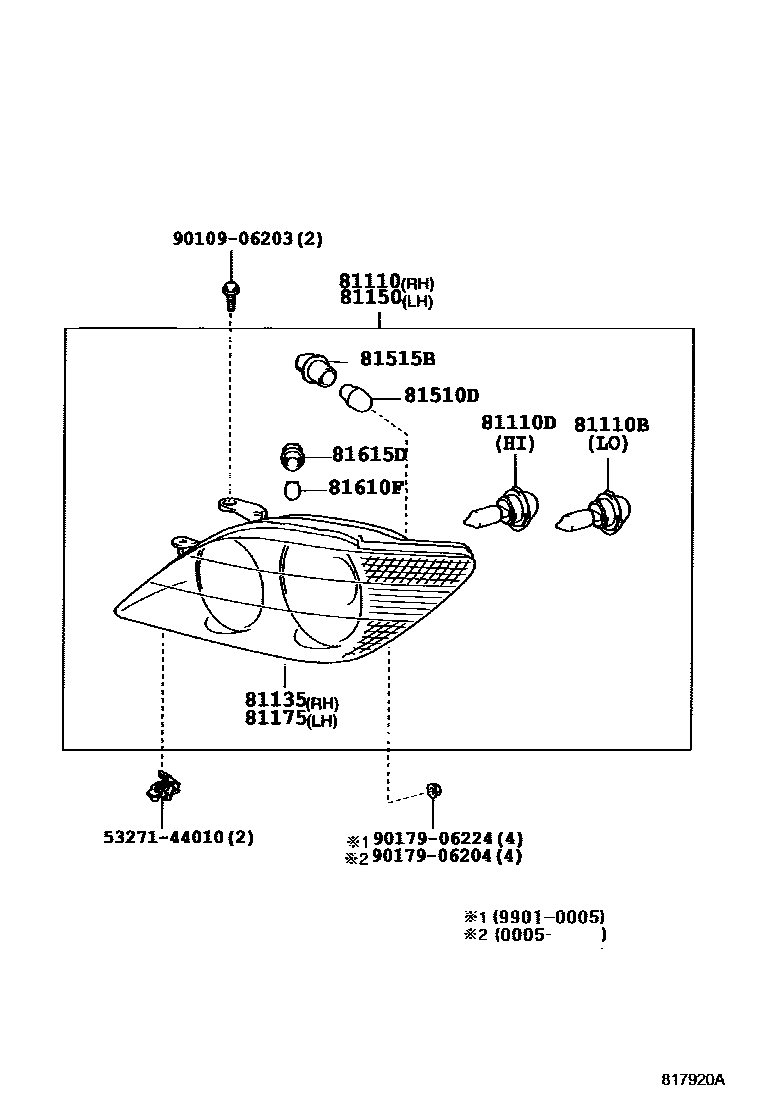

HEADLAMP

0001 1HALOGEN HEAD LAMP 0002 1HALOGEN HEAD LAMP 0003 1HALOGEN HEAD LAMP 0004 1DISCHARGE HEAD LAMP

81110HEADLAMP ASSY, RH

main81110-53020iGXE10..LHD199901-200107

sub81110-53080

main81110-53030iGXE10..RHD199901-200107

sub81110-53090

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040iGXE10199901-200308

12V 51W

sub90981-13047

main90981-13047iGXE10200308-200507

12V 51W,HALOGEN

main90981-15011iGXE10,JCE10..RHD200107-200507

12V 21W,AMBER

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041iGXE10199901-200507

12V 65W

sub90981-13046

main90981-13074iGXE10200106-200507

12V 60W,HALOGEN,W(DISCHARGE HEADLAMP)

81135UNIT ASSY, HEADLAMP, RH

main81130-53020iGXE10..LHD199901-200308

sub81130-53080

main81130-53030iGXE10..RHD199901-200308

sub81130-53090

main81130-53050iGXE10,JCE10..RHD200107-200308

W(DISCHARGE HEADLAMP)

sub81145-53050

main81130-53060iGXE10,JCE10..LHD200107-200308

W(DISCHARGE HEADLAMP)

sub81145-53060

main81130-53110iGXE10..RHD200308-200507

sub81130-53170

main81130-53120iGXE10..LHD200308-200507

sub81130-53180

main81130-53190iGXE10..RHD..SED..EUR200310-200507

ENGLAND SPEC;HALOGEN(DARK)

sub81130-53210

main81145-53130iGXE10,JCE10..RHD200308-200507

W(DISCHARGE HEADLAMP)

main81145-53140iGXE10,JCE10..RHD..SED..EUR200310-200507

ENGLAND SPEC

main81145-53150iGXE10,JCE10..LHD200308-200507

W(DISCHARGE HEADLAMP)

81150HEADLAMP ASSY, LH

main81150-53020iGXE10..LHD199901-200107

sub81150-53080

main81150-53030iGXE10..RHD199901-200107

sub81150-53090

81175UNIT ASSY, HEADLAMP, LH

main81170-53020iGXE10..LHD199901-200308

sub81170-53080

main81170-53030iGXE10..RHD199901-200308

sub81170-53090

main81170-53050iGXE10,JCE10..RHD200107-200308

W(DISCHARGE HEADLAMP)

sub81185-53050

main81170-53060iGXE10,JCE10..LHD200107-200308

W(DISCHARGE HEADLAMP)

sub81185-53060

main81170-53110iGXE10..RHD200308-200507

sub81170-53170

main81170-53120iGXE10..LHD200308-200507

sub81170-53180

main81170-53190iGXE10..RHD..SED..EUR200310-200507

ENGLAND SPEC;HALOGEN(DARK)

sub81170-53210

main81185-53130iGXE10,JCE10..RHD200308-200507

W(DISCHARGE HEADLAMP)

main81185-53140iGXE10,JCE10..RHD..SED..EUR200310-200507

ENGLAND SPEC

main81185-53150iGXE10,JCE10..LHD200308-200507

W(DISCHARGE HEADLAMP)

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iGXE10199901-200107

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60032iGXE10,JCE10200107-200507

W(DISCHARGE HEADLAMP)

main90075-99128iGXE10199901-200507

HALOGEN HEAD LAMP

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iGXE10199901-200507

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60021iGXE10199901-200507

HALOGEN HEAD LAMP

main90075-60030iGXE10,JCE10200107-200507

W(DISCHARGE HEADLAMP)

5327144010COVER, HORN HOLE, RH

main53271-44010

9010906203

main90109-06203

9017906204

main90179-06204

9017906224

main90179-06224

14 parts on this diagram · 4 diagrams in section
