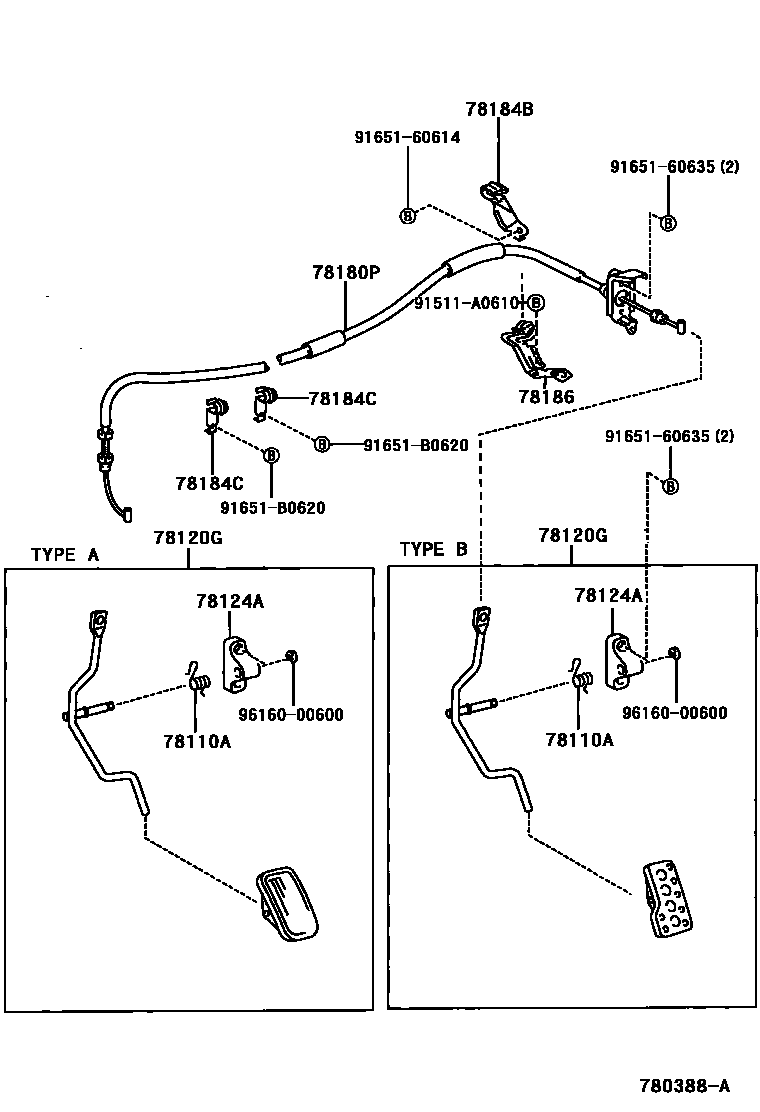

ACCELERATOR LINK

0001 1 0002 1TYPE C, TYPE D 0004 1TYPE E, TYPE F

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main78214-50010iGXE10..RHD199901-200107

main90508-23069iGXE10..LHD..ATM199901-200107

NO.1

main90508-29022iGXE10..LHD..ATM199901-200107

NO.2

78120GROD ASSY, ACCELERATOR PEDAL

main78120-53010iGXE10,JCE10..RHD200107

TYPE A:REFER TO ILLUSTRATION

main78120-53020iGXE10..LHD..ATM199901-200107

TYPE E:REFER TO ILLUSTRATION

main78120-53030iGXE10,JCE10..RHD200107

TYPE B:REFER TO ILLUSTRATION

main78120-53040iGXE10,JCE10..LHD200107

SPORTS PACKAGE 2;SPORTS PACKAGE;TYPE C:REFER TO ILLUSTRATION

main78120-53050iGXE10,JCE10..LHD200107

TYPE D:REFER TO ILLUSTRATION

main78120-53060iGXE10,JCE10..LHD..ATM200107

TYPE F:REFER TO ILLUSTRATION

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-24030iGXE10,JCE10..LHD200107

main78124-50020iGXE10..RHD199901-200107

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-3A740iJCE10..RHD200107

main78180-53010iGXE10..RHD200107

main78180-53030iGXE10..LHD199901-200107

main78180-53060iJCE10..LHD200107

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-53010iGXE10..RHD199901-200107

78184CBRACKET, ACCELERATOR CONTROL CABLE

main78184-53020×2iGXE10..RHD199901-200107

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-30160iJCE10..RHD200107

91511A0610

main91511-A0610

9165160614

main91651-60614

9165160635

main91651-60635

91651B0620

main91651-B0620

9616000600

main96160-00600

12 parts on this diagram · 3 diagrams in section
