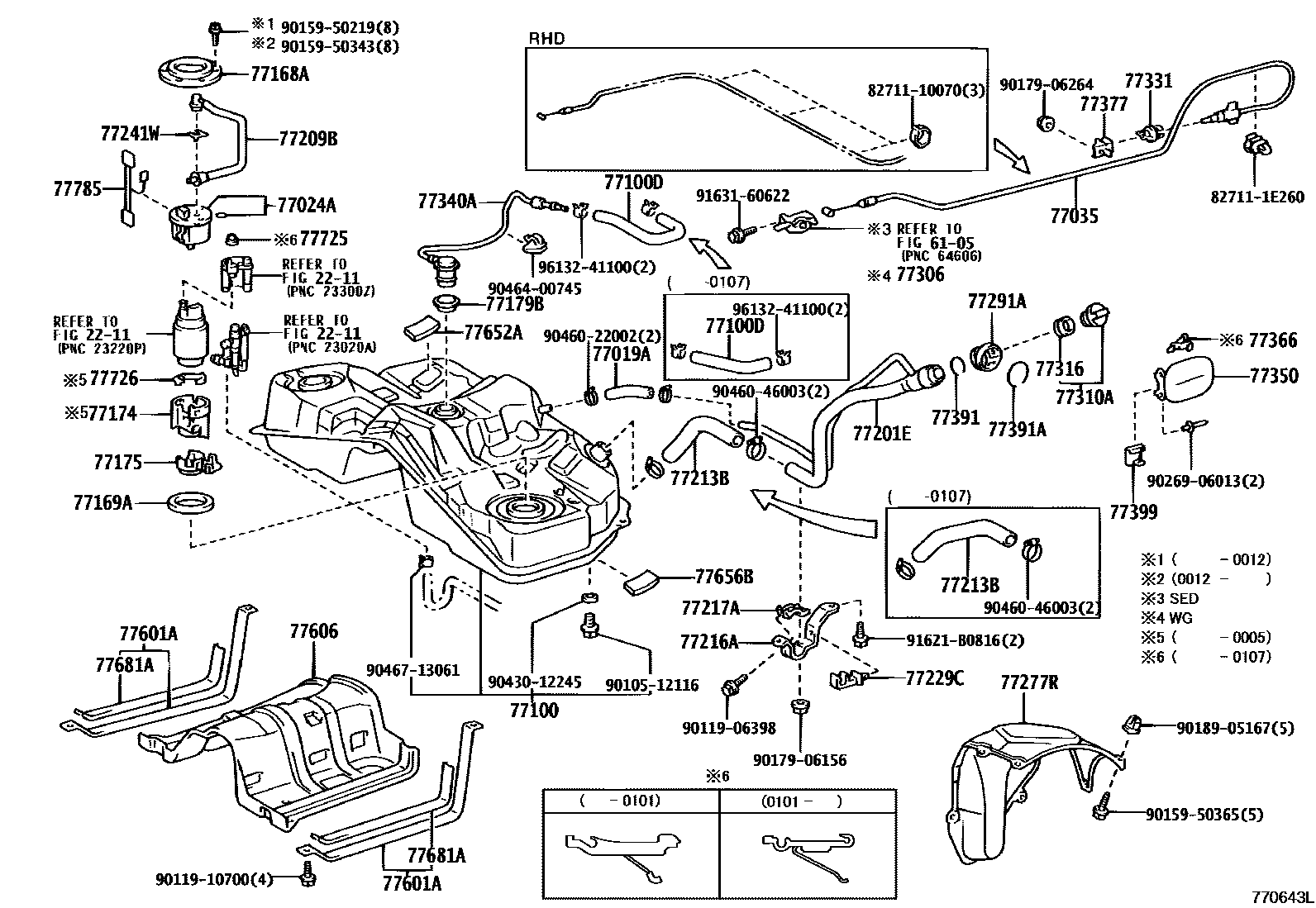

FUEL TANK & TUBE
2211
6105
77019AHOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
L=200
L=200,SOUTH AFRICA SPEC
L=200,CHINA SPEC
L=200,MOROCCO SPEC
L=200
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
L=110
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77179BGASKET, FUEL TANK EVAPORATION VENT TUBE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77331BRACKET, FUEL LID LOCK CONTROL
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77399HANGER, FUEL TANK CAP
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
77681ASEAT, FUEL TANK BAND
77725CUSHION, FUEL FILTER, NO.1
77726CUSHION, FUEL FILTER, NO.2
8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9010512116
9011906398
9011910700
9015950219
9015950343
9015950365
9017906156
9017906264
9018905167
9026906013
9043012245
9046022002
9046046003
9046400745
9046713061
91621B0816
9163160622
9613241100
60 parts on this diagram · 4 diagrams in section
