E
EPC Data

SIDE MOULDING

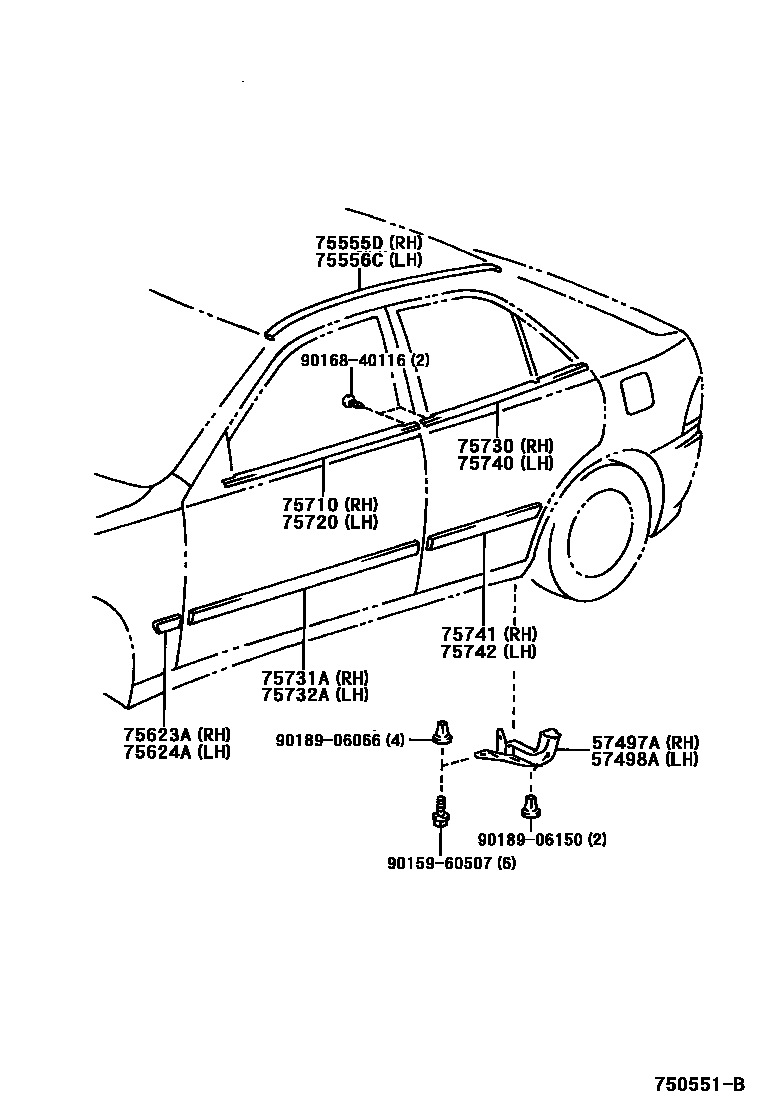

Parts diagram
57497ASHIELD, REAR FLOOR HOUSING
main57497-53010i199901-200104
main57497-53020i200105-200107
57498ASHIELD, REAR FLOOR HOUSING, NO.2
main57498-53010i199901-200104
main57498-53020i200105-200107
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-53020-A0i199901-200307
SUPER WHITE 2,040
sub75555-53021
main75555-53020-A1i199901-200107
SU.WHITE PM,051
sub75555-53021
main75555-53020-A2i200107-200307
WHITE PEARL CS.,062
sub75555-53021
main75555-53020-B0i199901-200307
SILVER ME.,1C0
sub75555-53021
main75555-53020-B1i199901-200307
DK.GRAY M.M.,1C6
sub75555-53021
main75555-53020-B2i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2
sub75555-53021
main75555-53020-C0i199901-200307
BLACK,202
sub75555-53021
main75555-53020-D0i199901-200107
RED M.M.,3N3
sub75555-53021
main75555-53020-D1i200107-200307
SUPER RED 5,3P0
sub75555-53021
main75555-53020-F0i200005-200307
SUPER BRIGHT YELLOW,576
sub75555-53021
main75555-53020-F1i200107-200307
GOLD ME.,585
sub75555-53021
main75555-53020-G0i199901-200107
DK. GREEN MC.,6Q7
sub75555-53021
main75555-53020-G1i200107-200307
DARK GREEN MC.,6R4
sub75555-53021
main75555-53020-J0i199901-200107
BLUE MC.,8M6
sub75555-53021
main75555-53020-J1i200107-200307
DK.BLUE MC.,8N8
sub75555-53021
main75555-53021-A0i200307
SUPER WHITE 2,040
sub75555-53021
main75555-53021-A2i200307
WHITE PEARL CS.,062
sub75555-53021
main75555-53021-B0i200307
SILVER ME.,1C0
sub75555-53021
main75555-53021-B1i200307
DK.GRAY M.M.,1C6
sub75555-53021
main75555-53021-C0i200307
BLACK,202
sub75555-53021
main75555-53021-D1i200307
SUPER RED 5,3P0
sub75555-53021
main75555-53021-E0i200308
BEIGE ME.,4R4
sub75555-53021
main75555-53021-G1i200307
DARK GREEN MC.,6R4
sub75555-53021
main75555-53021-J3i200308
GRAYISH BLUE ME.,8N6
sub75555-53021
main75555-53021-J4i200308
DK.BLUE M.M.,8P4
sub75555-53021
main75555-53030-A0i200107-200204
SUPER WHITE 2,040
main75555-53030-A1i200107-200204
WHITE PEARL CS.,062
main75555-53030-B0i200107-200204
SILVER ME.,1C0
main75555-53030-B1i200107-200204
DK.GRAY M.M.,1C6
main75555-53030-C0i200107-200204
BLACK,202
main75555-53030-D0i200107-200204
SUPER RED 5,3P0
main75555-53030-F0i200107-200204
SUPER BRIGHT YELLOW,576
main75555-53030-F1i200107-200204
GOLD ME.,585
main75555-53030-G0i200107-200204
DARK GREEN MC.,6R4
main75555-53030-J0i200107-200204
DK.BLUE MC.,8N8
main75555-53031-A0i200204-200307
SUPER WHITE 2,040
sub75555-53032
main75555-53031-A1i200204-200307
WHITE PEARL CS.,062
sub75555-53032
main75555-53031-B0i200204-200307
SILVER ME.,1C0
sub75555-53032
main75555-53031-B1i200204-200307
DK.GRAY M.M.,1C6
sub75555-53032
main75555-53031-C0i200204-200307
BLACK,202
sub75555-53032
main75555-53031-D0i200204-200307
SUPER RED 5,3P0
sub75555-53032
main75555-53031-F0i200204-200307
SUPER BRIGHT YELLOW,576
sub75555-53032
main75555-53031-F1i200204-200307
GOLD ME.,585
sub75555-53032
main75555-53031-G0i200204-200307
DARK GREEN MC.,6R4
sub75555-53032
main75555-53031-J0i200204-200307
DK.BLUE MC.,8N8
sub75555-53032
main75555-53032-A0i200307
SUPER WHITE 2,040
main75555-53032-A1i200307
WHITE PEARL CS.,062
main75555-53032-B0i200307
SILVER ME.,1C0
main75555-53032-B1i200307
DK.GRAY M.M.,1C6
main75555-53032-C0i200307
BLACK,202
main75555-53032-D0i200307
SUPER RED 5,3P0
main75555-53032-E0i200308
BEIGE ME.,4R4
main75555-53032-G0i200307
DARK GREEN MC.,6R4
main75555-53032-J2i200308
GRAYISH BLUE ME.,8N6
main75555-53032-J3i200308
DK.BLUE M.M.,8P4
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75556-53020-A0i199901-200307
SUPER WHITE 2,040
sub75556-53021
main75556-53020-A1i199901-200107
SU.WHITE PM,051
sub75556-53021
main75556-53020-A2i200107-200307
WHITE PEARL CS.,062
sub75556-53021
main75556-53020-B0i199901-200307
SILVER ME.,1C0
sub75556-53021
main75556-53020-B1i199901-200307
DK.GRAY M.M.,1C6
sub75556-53021
main75556-53020-B2i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2
sub75556-53021
main75556-53020-C0i199901-200307
BLACK,202
sub75556-53021
main75556-53020-D0i199901-200107
RED M.M.,3N3
sub75556-53021
main75556-53020-D1i200107-200307
SUPER RED 5,3P0
sub75556-53021
main75556-53020-F0i200005-200307
SUPER BRIGHT YELLOW,576
sub75556-53021
main75556-53020-F1i200107-200307
GOLD ME.,585
sub75556-53021
main75556-53020-G0i199901-200107
DK. GREEN MC.,6Q7
sub75556-53021
main75556-53020-G1i200107-200307
DARK GREEN MC.,6R4
sub75556-53021
main75556-53020-J0i199901-200107
BLUE MC.,8M6
sub75556-53021
main75556-53020-J1i200107-200307
DK.BLUE MC.,8N8
sub75556-53021
main75556-53021-A0i200307
SUPER WHITE 2,040
sub75556-53021
main75556-53021-A2i200307
WHITE PEARL CS.,062
sub75556-53021
main75556-53021-B0i200307
SILVER ME.,1C0
sub75556-53021
main75556-53021-B1i200307
DK.GRAY M.M.,1C6
sub75556-53021
main75556-53021-C0i200307
BLACK,202
sub75556-53021
main75556-53021-D1i200307
SUPER RED 5,3P0
sub75556-53021
main75556-53021-E0i200308
BEIGE ME.,4R4
sub75556-53021
main75556-53021-G1i200307
DARK GREEN MC.,6R4
sub75556-53021
main75556-53021-J3i200308
GRAYISH BLUE ME.,8N6
sub75556-53021
main75556-53021-J4i200308
DK.BLUE M.M.,8P4
sub75556-53021
main75556-53030-A0i200107-200204
SUPER WHITE 2,040
main75556-53030-A1i200107-200204
WHITE PEARL CS.,062
main75556-53030-B0i200107-200204
SILVER ME.,1C0
main75556-53030-B1i200107-200204
DK.GRAY M.M.,1C6
main75556-53030-C0i200107-200204
BLACK,202
main75556-53030-D0i200107-200204
SUPER RED 5,3P0
main75556-53030-F0i200107-200204
SUPER BRIGHT YELLOW,576
main75556-53030-F1i200107-200204
GOLD ME.,585
main75556-53030-G0i200107-200204
DARK GREEN MC.,6R4
main75556-53030-J0i200107-200204
DK.BLUE MC.,8N8
main75556-53031-A0i200204-200307
SUPER WHITE 2,040
sub75556-53032
main75556-53031-A1i200204-200307
WHITE PEARL CS.,062
sub75556-53032
main75556-53031-B0i200204-200307
SILVER ME.,1C0
sub75556-53032
main75556-53031-B1i200204-200307
DK.GRAY M.M.,1C6
sub75556-53032
main75556-53031-C0i200204-200307
BLACK,202
sub75556-53032
main75556-53031-D0i200204-200307
SUPER RED 5,3P0
sub75556-53032
main75556-53031-F0i200204-200307
SUPER BRIGHT YELLOW,576
sub75556-53032
main75556-53031-F1i200204-200307
GOLD ME.,585
sub75556-53032
main75556-53031-G0i200204-200307
DARK GREEN MC.,6R4
sub75556-53032
main75556-53031-J0i200204-200307
DK.BLUE MC.,8N8
sub75556-53032
main75556-53032-A0i200307
SUPER WHITE 2,040
main75556-53032-A1i200307
WHITE PEARL CS.,062
main75556-53032-B0i200307
SILVER ME.,1C0
main75556-53032-B1i200307
DK.GRAY M.M.,1C6
main75556-53032-C0i200307
BLACK,202
main75556-53032-D0i200307
SUPER RED 5,3P0
main75556-53032-E0i200308
BEIGE ME.,4R4
main75556-53032-G0i200307
DARK GREEN MC.,6R4
main75556-53032-J2i200308
GRAYISH BLUE ME.,8N6
main75556-53032-J3i200308
DK.BLUE M.M.,8P4
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
main75623-53010-A0i199901-200107
SUPER WHITE 2,040
sub75623-53010
main75623-53010-A1i199901-200107
SU.WHITE PM,051
sub75623-53010
main75623-53010-B0i199901-200107
SILVER ME.,1C0
sub75623-53010
main75623-53010-B1i199901-200107
DK.GRAY M.M.,1C6
sub75623-53010
main75623-53010-C0i199901-200107
BLACK,202
sub75623-53010
main75623-53010-D0i199901-200107
RED M.M.,3N3
sub75623-53010
main75623-53010-F0i200005-200107
SUPER BRIGHT YELLOW,576
sub75623-53010
main75623-53010-G0i199901-200107
DK. GREEN MC.,6Q7
sub75623-53010
main75623-53010-J0i199901-200107
BLUE MC.,8M6
sub75623-53010
main75623-53020-A0i200107
SUPER WHITE 2,040
main75623-53020-A1i200107
WHITE PEARL CS.,062
main75623-53020-B0i200107
SILVER ME.,1C0
main75623-53020-B1i200107
DK.GRAY M.M.,1C6
main75623-53020-B2i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2
main75623-53020-C0i200107
BLACK,202
main75623-53020-D0i200107
SUPER RED 5,3P0
main75623-53020-E0i200308
BEIGE ME.,4R4
main75623-53020-F0i200107-200308
SUPER BRIGHT YELLOW,576
main75623-53020-F1i200107-200308
GOLD ME.,585
main75623-53020-G0i200107
DARK GREEN MC.,6R4
main75623-53020-J0i200107-200308
DK.BLUE MC.,8N8
main75623-53020-J2i200308
GRAYISH BLUE ME.,8N6
main75623-53020-J3i200308
DK.BLUE M.M.,8P4
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
main75624-53010-A0i199901-200107
SUPER WHITE 2,040
sub75624-53010
main75624-53010-A1i199901-200107
SU.WHITE PM,051
sub75624-53010
main75624-53010-B0i199901-200107
SILVER ME.,1C0
sub75624-53010
main75624-53010-B1i199901-200107
DK.GRAY M.M.,1C6
sub75624-53010
main75624-53010-C0i199901-200107
BLACK,202
sub75624-53010
main75624-53010-D0i199901-200107
RED M.M.,3N3
sub75624-53010
main75624-53010-F0i200005-200107
SUPER BRIGHT YELLOW,576
sub75624-53010
main75624-53010-G0i199901-200107
DK. GREEN MC.,6Q7
sub75624-53010
main75624-53010-J0i199901-200107
BLUE MC.,8M6
sub75624-53010
main75624-53020-A0i200107
SUPER WHITE 2,040
main75624-53020-A1i200107
WHITE PEARL CS.,062
main75624-53020-B0i200107
SILVER ME.,1C0
main75624-53020-B1i200107
DK.GRAY M.M.,1C6
main75624-53020-B2i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2
main75624-53020-C0i200107
BLACK,202
main75624-53020-D0i200107
SUPER RED 5,3P0
main75624-53020-E0i200308
BEIGE ME.,4R4
main75624-53020-F0i200107-200308
SUPER BRIGHT YELLOW,576
main75624-53020-F1i200107-200308
GOLD ME.,585
main75624-53020-G0i200107
DARK GREEN MC.,6R4
main75624-53020-J0i200107-200308
DK.BLUE MC.,8N8
main75624-53020-J2i200308
GRAYISH BLUE ME.,8N6
main75624-53020-J3i200308
DK.BLUE M.M.,8P4
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-53010i199901-200309
sub75710-53011
main75710-53011i200309
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-53010i199901-200309
sub75720-53011
main75720-53011i200309
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-53010i199901-200309
sub75730-53011
main75730-53011i200309
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-53010-A0i199901-200107
SUPER WHITE 2,040
sub75731-53010
main75731-53010-A1i199901-200107
SU.WHITE PM,051
sub75731-53010
main75731-53010-B0i199901-200107
SILVER ME.,1C0
sub75731-53010
main75731-53010-B1i199901-200107
DK.GRAY M.M.,1C6
sub75731-53010
main75731-53010-C0i199901-200107
BLACK,202
sub75731-53010
main75731-53010-D0i199901-200107
RED M.M.,3N3
sub75731-53010
main75731-53010-F0i200005-200107
SUPER BRIGHT YELLOW,576
sub75731-53010
main75731-53010-G0i199901-200107
DK. GREEN MC.,6Q7
sub75731-53010
main75731-53010-J0i199901-200107
BLUE MC.,8M6
sub75731-53010
main75731-53020-A0i200107
SUPER WHITE 2,040
main75731-53020-A1i200107
WHITE PEARL CS.,062
main75731-53020-B0i200107
SILVER ME.,1C0
main75731-53020-B1i200107
DK.GRAY M.M.,1C6
main75731-53020-B2i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2
main75731-53020-C0i200107
BLACK,202
main75731-53020-D0i200107
SUPER RED 5,3P0
main75731-53020-E0i200308
BEIGE ME.,4R4
main75731-53020-F0i200107-200308
SUPER BRIGHT YELLOW,576
main75731-53020-F1i200107-200308
GOLD ME.,585
main75731-53020-G0i200107
DARK GREEN MC.,6R4
main75731-53020-J0i200107-200308
DK.BLUE MC.,8N8
main75731-53020-J2i200308
GRAYISH BLUE ME.,8N6
main75731-53020-J3i200308
DK.BLUE M.M.,8P4
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75732-53010-A0i199901-200107
SUPER WHITE 2,040
sub75732-53010
main75732-53010-A1i199901-200107
SU.WHITE PM,051
sub75732-53010
main75732-53010-B0i199901-200107
SILVER ME.,1C0
sub75732-53010
main75732-53010-B1i199901-200107
DK.GRAY M.M.,1C6
sub75732-53010
main75732-53010-C0i199901-200107
BLACK,202
sub75732-53010
main75732-53010-D0i199901-200107
RED M.M.,3N3
sub75732-53010
main75732-53010-F0i200005-200107
SUPER BRIGHT YELLOW,576
sub75732-53010
main75732-53010-G0i199901-200107
DK. GREEN MC.,6Q7
sub75732-53010
main75732-53010-J0i199901-200107
BLUE MC.,8M6
sub75732-53010
main75732-53020-A0i200107
SUPER WHITE 2,040
main75732-53020-A1i200107
WHITE PEARL CS.,062
main75732-53020-B0i200107
SILVER ME.,1C0
main75732-53020-B1i200107
DK.GRAY M.M.,1C6
main75732-53020-B2i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2
main75732-53020-C0i200107
BLACK,202
main75732-53020-D0i200107
SUPER RED 5,3P0
main75732-53020-E0i200308
BEIGE ME.,4R4
main75732-53020-F0i200107-200308
SUPER BRIGHT YELLOW,576
main75732-53020-F1i200107-200308
GOLD ME.,585
main75732-53020-G0i200107
DARK GREEN MC.,6R4
main75732-53020-J0i200107-200308
DK.BLUE MC.,8N8
main75732-53020-J2i200308
GRAYISH BLUE ME.,8N6
main75732-53020-J3i200308
DK.BLUE M.M.,8P4
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-53010i199901-200309
sub75740-53011
main75740-53011i200309
75741MOULDING, REAR DOOR, OUTSIDE RH
main75741-53010-A0i199901-200107
SUPER WHITE 2,040
sub75741-53010
main75741-53010-A1i199901-200107
SU.WHITE PM,051
sub75741-53010
main75741-53010-B0i199901-200107
SILVER ME.,1C0
sub75741-53010
main75741-53010-B1i199901-200107
DK.GRAY M.M.,1C6
sub75741-53010
main75741-53010-C0i199901-200107
BLACK,202
sub75741-53010
main75741-53010-D0i199901-200107
RED M.M.,3N3
sub75741-53010
main75741-53010-F0i200005-200107
SUPER BRIGHT YELLOW,576
sub75741-53010
main75741-53010-G0i199901-200107
DK. GREEN MC.,6Q7
sub75741-53010
main75741-53010-J0i199901-200107
BLUE MC.,8M6
sub75741-53010
main75741-53020-A0i200107
SUPER WHITE 2,040
main75741-53020-A1i200107
WHITE PEARL CS.,062
main75741-53020-B0i200107
SILVER ME.,1C0
main75741-53020-B1i200107
DK.GRAY M.M.,1C6
main75741-53020-B2i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2
main75741-53020-C0i200107
BLACK,202
main75741-53020-D0i200107
SUPER RED 5,3P0
main75741-53020-E0i200308
BEIGE ME.,4R4
main75741-53020-F0i200107-200308
SUPER BRIGHT YELLOW,576
main75741-53020-F1i200107-200308
GOLD ME.,585
main75741-53020-G0i200107
DARK GREEN MC.,6R4
main75741-53020-J0i200107-200308
DK.BLUE MC.,8N8
main75741-53020-J2i200308
GRAYISH BLUE ME.,8N6
main75741-53020-J3i200308
DK.BLUE M.M.,8P4
75742MOULDING, REAR DOOR, OUTSIDE LH
main75742-53010-A0i199901-200107
SUPER WHITE 2,040
sub75742-53010
main75742-53010-A1i199901-200107
SU.WHITE PM,051
sub75742-53010
main75742-53010-B0i199901-200107
SILVER ME.,1C0
sub75742-53010
main75742-53010-B1i199901-200107
DK.GRAY M.M.,1C6
sub75742-53010
main75742-53010-C0i199901-200107
BLACK,202
sub75742-53010
main75742-53010-D0i199901-200107
RED M.M.,3N3
sub75742-53010
main75742-53010-F0i200005-200107
SUPER BRIGHT YELLOW,576
sub75742-53010
main75742-53010-G0i199901-200107
DK. GREEN MC.,6Q7
sub75742-53010
main75742-53010-J0i199901-200107
BLUE MC.,8M6
sub75742-53010
main75742-53020-A0i200107
SUPER WHITE 2,040
main75742-53020-A1i200107
WHITE PEARL CS.,062
main75742-53020-B0i200107
SILVER ME.,1C0
main75742-53020-B1i200107
DK.GRAY M.M.,1C6
main75742-53020-B2i200308-200401
SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2
main75742-53020-C0i200107
BLACK,202
main75742-53020-D0i200107
SUPER RED 5,3P0
main75742-53020-E0i200308
BEIGE ME.,4R4
main75742-53020-F0i200107-200308
SUPER BRIGHT YELLOW,576
main75742-53020-F1i200107-200308
GOLD ME.,585
main75742-53020-G0i200107
DARK GREEN MC.,6R4
main75742-53020-J0i200107-200308
DK.BLUE MC.,8N8
main75742-53020-J2i200308
GRAYISH BLUE ME.,8N6
main75742-53020-J3i200308
DK.BLUE M.M.,8P4
9015960507
main90159-60507
9016840116
main90168-40116
9018906066
main90189-06066
9018906150
main90189-06150

18 parts on this diagram · 2 diagrams in section

SIDE MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
