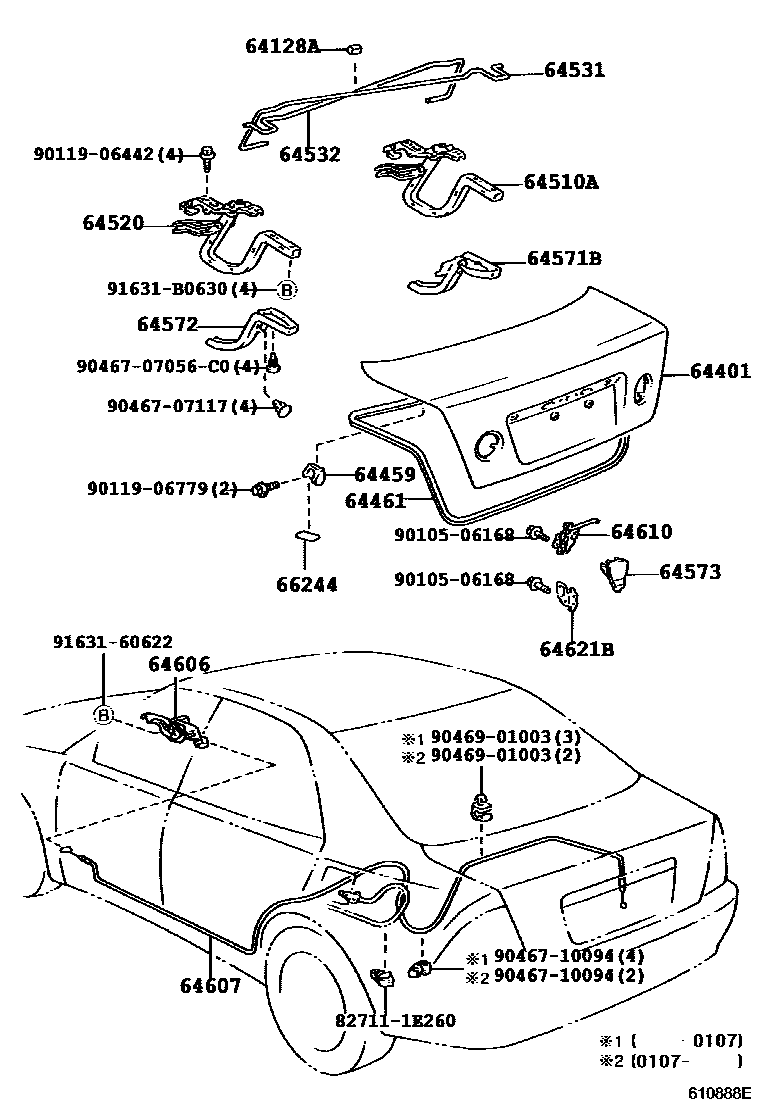

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2

main64128-30050iGXE10199901-200107

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-53020iGXE10199901-199912

sub64401-53021

main64401-53021iGXE10199912-200101

sub64401-53022

sub90189-05027

sub93540-55016

main64401-53022iGXE10200101-200107

main64401-53060iGXE10,JCE10..SED200107

W(REAR SPOILER)

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-53010iGXE10199901-200107

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-53010iGXE10199901-200307

sub64461-53011

main64461-53011iGXE10,JCE10..SED200307

64510AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-53011iGXE10199901-200107

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-53011iGXE10199901-200107

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-53030iGXE10199901-200101

sub64531-53031

main64531-53031iGXE10200101-200107

main64531-53050iGXE10,JCE10..SED200107

W(REAR SPOILER)

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-53030iGXE10199901-200101

sub64532-53031

main64532-53031iGXE10200101-200107

main64532-53050iGXE10,JCE10..SED200107

W(REAR SPOILER)

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-53010-C0iGXE10199901-200008

BLACK,TRIM0#,2#

main64571-53011-C0iGXE10200008-200107

BLACK,TRIM0#,2#

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-53010-C0iGXE10199901-200008

BLACK,TRIM0#,2#

main64572-53011-C0iGXE10200008-200107

BLACK,TRIM0#,2#

64573PROTECTOR, LUGGAGE DOOR OPENER CABLE, RH

main64573-53010iGXE10199901-200107

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-53010iGXE10..RHD199901-200107

main64606-53020iGXE10..LHD199901-200107

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-53010iGXE10..RHD199901-200005

main64607-53011iGXE10..RHD200005-200107

main64607-53020iGXE10..LHD199901-200005

main64607-53021iGXE10..LHD200005-200107

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-53020iGXE10199901-200107

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-53010iGXE10199901-200107

66244PROTECTOR, REAR BODY, NO.2

main66244-53010iGXE10199901-200107

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9010506168

main90105-06168

9011906442

main90119-06442

9011906779

main90119-06779

9046707056C0

main90467-07056C0

9046707117

main90467-07117

9046710094

main90467-10094

9046901003

main90469-01003

9163160622

main91631-60622

91631B0630

main91631-B0630

26 parts on this diagram · 2 diagrams in section
