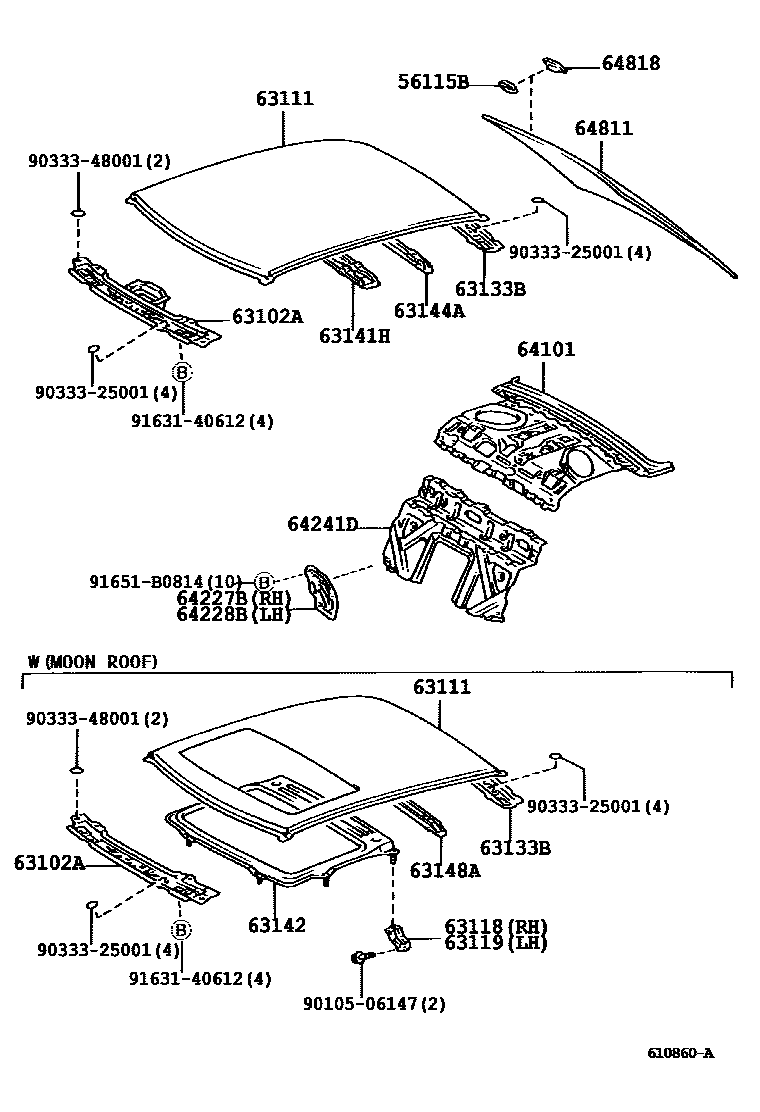

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
63102APANEL SUB-ASSY, WINDSHIELD HEADER
W(MOON ROOF)
63111PANEL, ROOF
W(MOON ROOF)
W(MOON ROOF)
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63133BFRAME, BACK WINDOW
63141HREINFORCEMENT, ROOF PANEL, CENTER
63142REINFORCEMENT, ROOF PANEL, NO.2
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
64101PANEL SUB-ASSY, UPPER BACK
64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2
64241DPANEL, ROOM PARTITION
64811GLASS, BACK WINDOW
*UVCTT,T=3.1,GREEN
*UVCEHTT,T=3.1,GREEN
*UVCEHTT,T=3.1,GREEN
*TT,T=3.1,DARK GREEN
*EHTT,T=3.1,DK.GREEN
*EHTT,T=3.1,DK.GREEN
*UVCTT,T=3.1,GREEN
*UVCEHTT,T=3.1,GREEN
*UVCEHTT,T=3.1,GREEN
*TT,T=3.1,DARK GREEN
*EHTT,T=3.1,DK.GREEN
*EHTT,T=3.1,DK.GREEN
64818SPACER, BACK WINDOW GLASS
9010506147
main90105-06147
9033325001
main90333-25001
9033348001
main90333-48001
9163140612
main91631-40612
91651B0814
main91651-B0814
21 parts on this diagram · 7 diagrams in section
