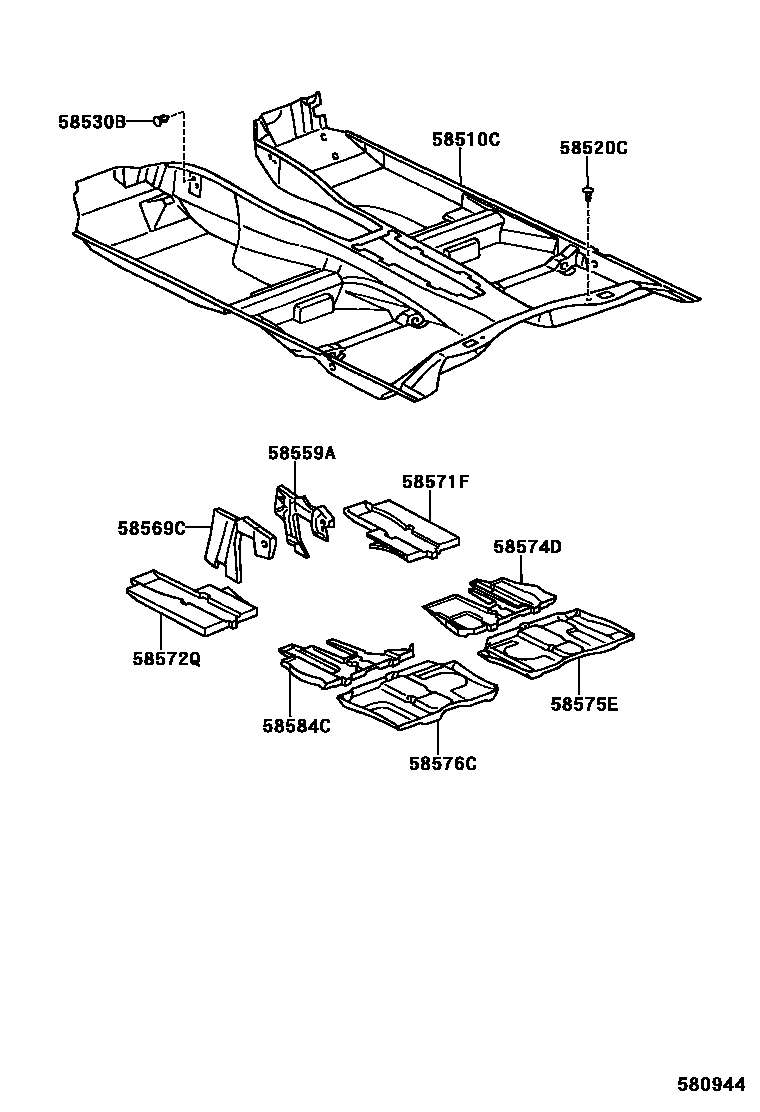

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-53030-A0iJCE10..RHD..WG200107-200208

IVORY,TRIM0#

main58510-53030-C0iJCE10..RHD..WG200107-200208

BLACK,TRIM2#

main58510-53032-A0iGXE10,JCE10..RHD..WG200208

IVORY,TRIM0#

main58510-53032-C0iGXE10,JCE10..RHD..WG200208

BLACK,TRIM2#

main58510-53040-A0iGXE10,JCE10..LHD..WG200107

IVORY,TRIM0#

main58510-53040-C0iGXE10,JCE10..LHD..WG200107

BLACK,TRIM2#

main58510-53060-A1iGXE10..RHD199901-200004

IVORY,TRIM0#

main58510-53060-C0iGXE10..RHD199901-200004

BLACK,TRIM2#

main58510-53061-A1iGXE10..RHD200004-200103

IVORY,TRIM0#

main58510-53061-C0iGXE10..RHD200004-200103

BLACK,TRIM2#

main58510-53070-A1iGXE10..LHD199901-200004

IVORY,TRIM0#

main58510-53070-C0iGXE10..LHD199901-200004

BLACK,TRIM2#

main58510-53071-A1iGXE10..LHD200004-200107

IVORY,TRIM0#

main58510-53071-C0iGXE10..LHD200004-200107

BLACK,TRIM2#

main58510-53130-A0iGXE10,JCE10..RHD..SED200107-200208

IVORY,TRIM0#

main58510-53130-C0iGXE10,JCE10..RHD..SED200107-200208

BLACK,TRIM2#

main58510-53132-A0iGXE10,JCE10..RHD..SED200208

IVORY,TRIM0#

main58510-53132-B0iGXE10,JCE10..RHD..SED200308-200401

SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY,TRIM2#

main58510-53132-C0iGXE10,JCE10..RHD..SED200208

BLACK,TRIM2#

main58510-53140-A0iGXE10,JCE10..LHD..SED200107

IVORY,TRIM0#

main58510-53140-B0iGXE10,JCE10..LHD..SED..ATM200308-200401

SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY,TRIM2#

main58510-53140-C0iGXE10,JCE10..LHD..SED200107

BLACK,TRIM2#

main58510-53210-A0iGXE10..RHD200103-200107

IVORY,TRIM0#

main58510-53210-C0iGXE10..RHD200103-200107

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-A1×2iGXE10,JCE10200107

IVORY,TRIM0#

sub90467-07049

main90467-06016-C0×2iGXE10199901-200107

BLACK,TRIM0#,2#

sub90467-07049

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09118×2iGXE10199901-200107

58559APAD, FRONT FLOOR SIDE, RH

main58559-53030iGXE10199901-200107

sub58559-53031

58569CPAD, FRONT FLOOR SIDE, LH

main58569-53040iGXE10199901-200107

sub58569-53041

58571FPAD, FRONT FLOOR, FRONT

main58571-53050iGXE10199901-200107

sub58571-53051

58572QPAD, FRONT FLOOR, FRONT NO.2

main58572-53040iGXE10199901-200107

sub58572-53041

58574DPAD, FRONT FLOOR, CENTER NO.2 RH

main58574-53020iGXE10199901-200107

sub58574-53021

58575EPAD, FRONT FLOOR, REAR NO.1

main58575-53020iGXE10199901-200107

sub58575-53021

58576CPAD, FRONT FLOOR, REAR NO.2

main58576-53020iGXE10199901-200107

sub58576-53021

58584CPAD, FRONT FLOOR, CENTER NO.2 LH

main58584-53020iGXE10199901-200107

sub58584-53021

11 parts on this diagram · 1 diagram in section
