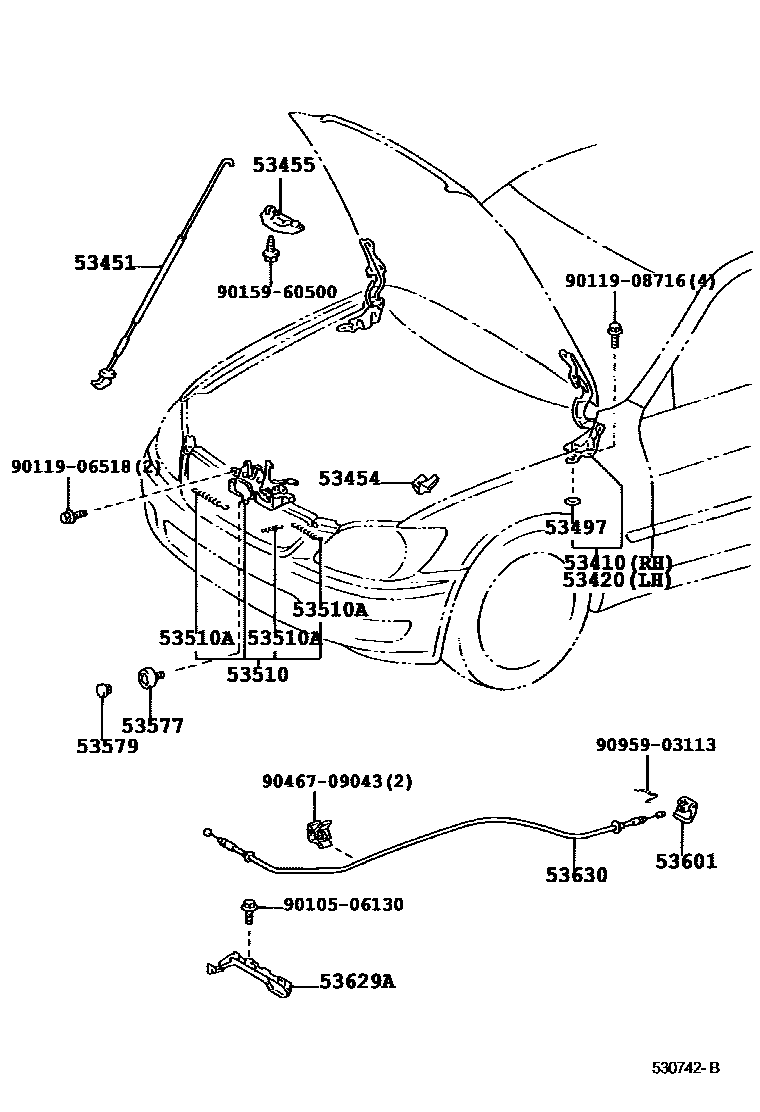

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53454CLIP, HOOD SUPPORT ROD
53455CLAMP, HOOD SUPPORT ROD
53497PAD, HOOD HINGE, NO.1
T=0.5
53510LOCK ASSY, HOOD
W(ANTI-THEFT DEVICE:IMMOBILIZER)
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
WD=0.9,CW=23
WD=1.4,CW=7.25
WD=1.4,CW=7.25
WD=2.0,CW=16.0
WD=2.0,CW=17
53577BOLT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53629ACOVER, HOOD LOCK CONTROL CABLE
53630CABLE ASSY, HOOD LOCK CONTROL
9010506130
main90105-06130
9011906518
main90119-06518
9011908716
main90119-08716
9015960500
main90159-60500
9046709043
main90467-09043
9095903113
main90959-03113
19 parts on this diagram · 2 diagrams in section
