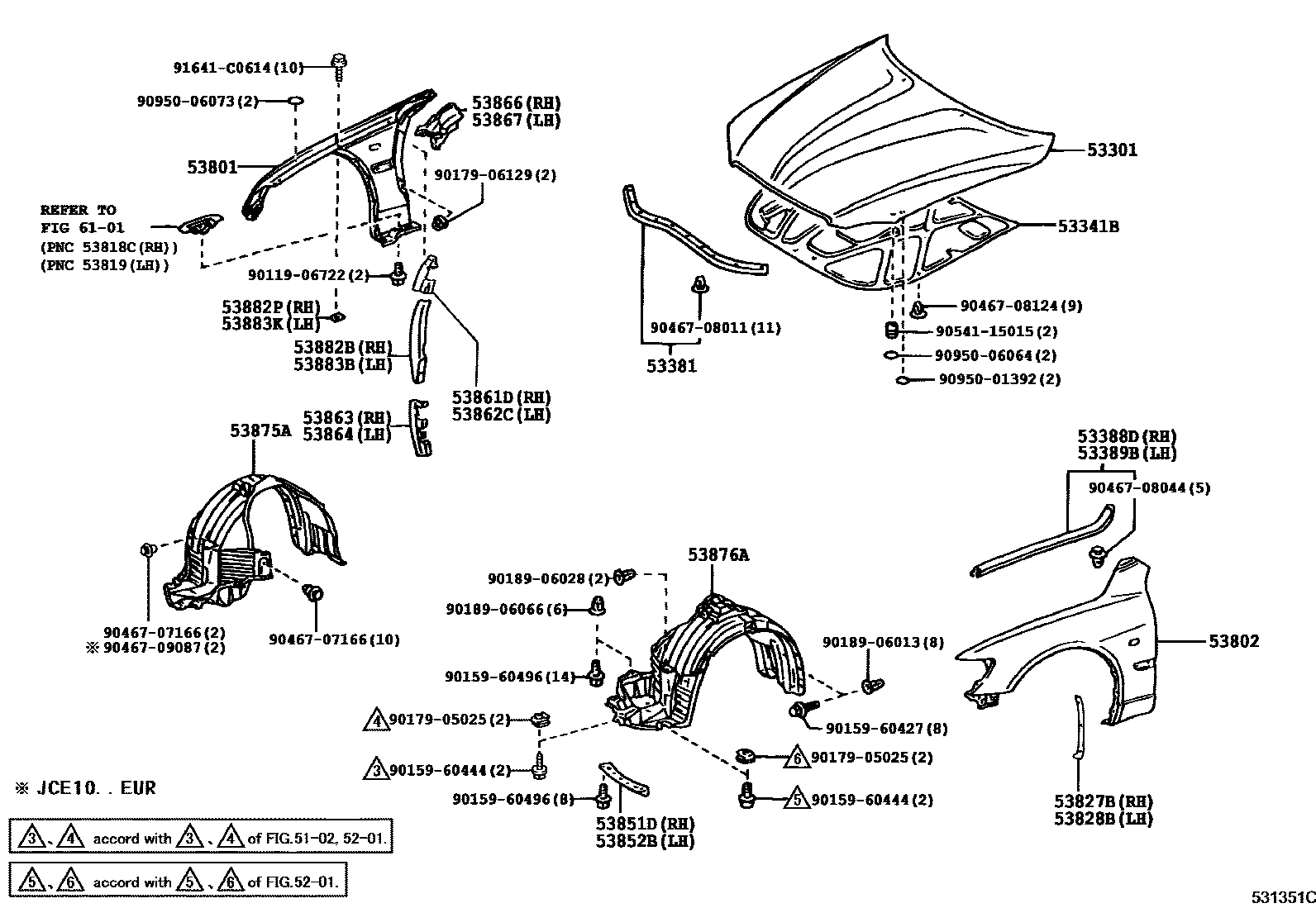

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-53010iGXE10,JCE10¥61,600199901-200507

sub53301-53020¥61,600

53341BINSULATOR, HOOD

main53341-53010iGXE10¥15,900199901-200004

sub53341-53020¥15,600

main53341-53020iGXE10¥15,600200004-200307

sub53341-53021¥15,600

main53341-53021iGXE10,JCE10¥15,600200307

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-53010iGXE10¥1,750199901-200307

sub53381-53011¥1,750

main53381-53011iGXE10,JCE10¥1,750200307

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-53010iGXE10¥1,950199901-200107

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-53010iGXE10¥1,950199901-200107

53801FENDER SUB-ASSY, FRONT RH

main53801-53010iGXE10¥40,600199901-200107

main53801-53040iJCE10¥40,600200107

W(DISCHARGE HEADLAMP)

53802FENDER SUB-ASSY, FRONT LH

main53802-53010iGXE10¥40,600199901-200107

main53802-53040iJCE10¥40,600200107

W(DISCHARGE HEADLAMP)

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-53010iGXE10,JCE10¥1,060199901-200107

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-53010iGXE10¥1,060199901-200107

53851DPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-30020iGXE10¥1,020199901-200107

53852BPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-30020iGXE10¥1,020199901-200107

53861DSEAL, FRONT FENDER TO DOOR HINGE, UPPER RH

main53861-53010iGXE10,JCE10¥570200107

53862CSEAL, FRONT FENDER TO DOOR HINGE, UPPER LH

main53862-53010iGXE10,JCE10¥570200107

53863SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH

main53863-53010iGXE10,JCE10¥1,040200107

53864SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH

main53864-53010iGXE10,JCE10¥1,040200107

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-53010iGXE10¥1,020199901-200107

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-53010iGXE10¥1,020199901-200107

53875ALINER, FRONT FENDER, RH

main53875-53010iJCE10..SED;GXE10..MTM..EUR¥6,200199901-200208

sub53875-53011¥6,300

main53875-53011iJCE10..SED..EUR¥6,300200208

main53875-53020iGXE10..ATM;GXE10..MTM..ARL¥6,200199901-200110

sub53875-53021¥6,200

main53875-53021iGXE10..ATM;GXE10..MTM..ARL¥6,200200110-200208

sub53875-53023¥6,300

main53875-53023iJCE10..ARL¥6,300200208

SOUTH AFRICA SPEC

main53875-53030iJCE10..WG¥6,200200107-200208

sub53875-53031¥6,300

main53875-53031iJCE10..WG¥6,300200208

main53875-53040iJCE10..RHD..WG¥6,200200107-200110

SOUTH AFRICA SPEC

sub53875-53041¥6,200

main53875-53041iJCE10..RHD..WG¥6,200200110-200208

SOUTH AFRICA SPEC

sub53875-53043¥6,300

main53875-53043iJCE10..RHD..WG¥6,300200208

SOUTH AFRICA SPEC

main53875-53080iGXE10..SED¥6,300200208

NEW ZEALAND OR HONG KONG OR SINGAPORE OR BRUNEI SPEC

main53875-53090iGXE10..WG¥6,300200208

53876ALINER, FRONT FENDER, LH

main53876-53010iGXE10..ARL;GXE10..MTM..EUR¥6,200199901-200110

sub53876-53011¥6,300

main53876-53011iJCE10..SED;GXE10..ARL;GXE10..MTM..EUR¥6,300200110-200208

main53876-53020iGXE10..ATM..EUR¥6,200199901-200110

sub53876-53021¥6,200

main53876-53021iGXE10..ATM..EUR¥6,200200110-200208

sub53876-53023¥6,300

main53876-53023iJCE10..ARL¥6,300200208

SOUTH AFRICA SPEC

main53876-53030iJCE10..WG¥6,200200107-200208

sub53876-53031¥6,300

main53876-53031iJCE10..WG¥6,300200208

main53876-53040iJCE10..RHD..WG¥6,200200107-200110

SOUTH AFRICA SPEC

sub53876-53041¥6,200

main53876-53041iJCE10..RHD..WG¥6,200200110-200207

SOUTH AFRICA SPEC

sub53876-53043¥6,300

main53876-53043iJCE10..RHD..WG¥6,300200208

SOUTH AFRICA SPEC

main53876-53080iJCE10..ARL¥6,300200208

NEW ZEALAND OR HONG KONG OR SINGAPORE OR BRUNEI SPEC

main53876-53090iGXE10..WG¥6,300200208

53882BSEAL, FRONT FENDER, RH

main53882-53010iGXE10,JCE10¥1,660200107

53882PSEAL, FRONT FENDER, RH

main53882-16030iGXE10¥60199901-200107

53883BSEAL, FRONT FENDER, LH

main53883-53010iGXE10,JCE10¥1,660200107

53883KSEAL, FRONT FENDER, LH

main53882-16030iGXE10¥60199901-200107

6101

9011906722

main90119-06722¥120

9015960427

main90159-60427¥120

9015960444

main90159-60444¥100

9015960496

main90159-60496¥60

9017905025

main90179-05025¥80

9017906129

main90179-06129¥90

9018906013

main90189-06013¥70

9018906028

main90189-06028¥110

9018906066

main90189-06066¥80

9046707166

main90467-07166¥90

9046708011

main90467-08011¥100

9046708044

main90467-08044¥170

9046708124

main90467-08124¥260

9046709087

main90467-09087¥110

9054115015

main90541-15015¥220

9095001392

main90950-01392¥100

9095006064

main90950-06064¥110

9095006073

main90950-06073¥190

91641C0614

main91641-C0614¥70

43 parts on this diagram · 1 diagram in section
