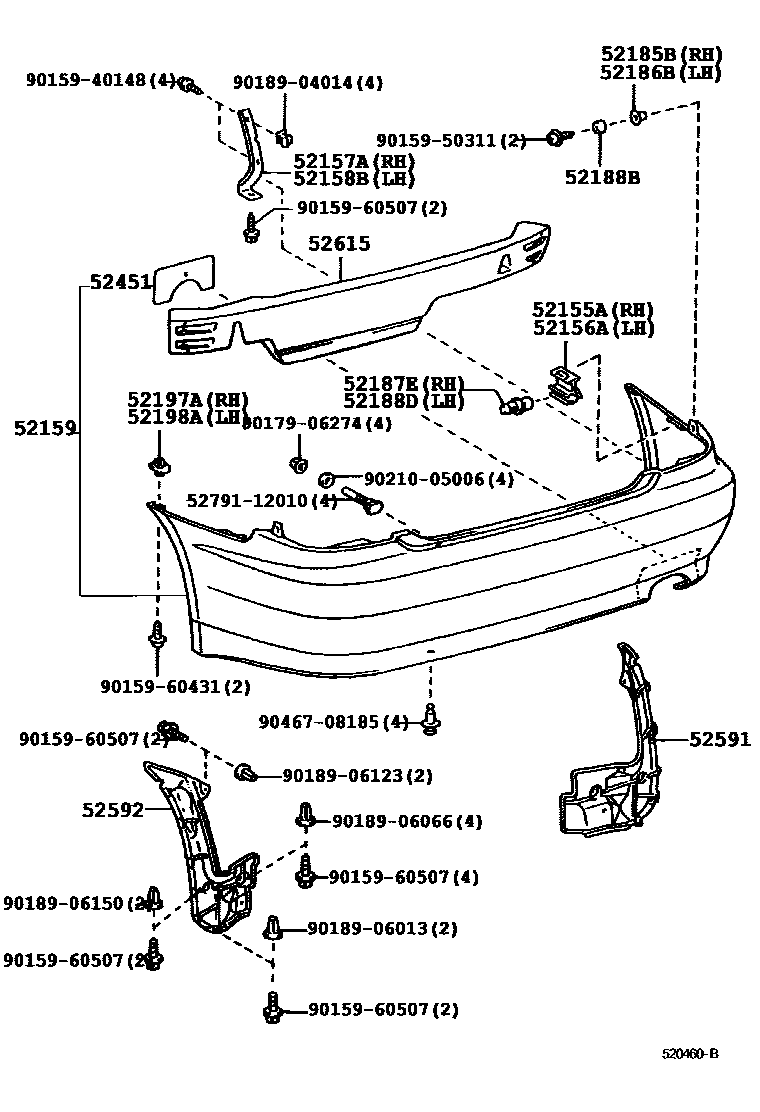

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
KOREA SPEC
52156ASUPPORT, REAR BUMPER SIDE, LH
KOREA SPEC
52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH
52158BSTAY, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
KOREA SPEC
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52187EGUIDE, REAR BUMPER LOCATION, RH
52188BSPACER, REAR BUMPER MOUNTING
52188DGUIDE, REAR BUMPER LOCATION, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52451GUARD, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
KOREA SPEC
5279112010BOLT, BUMPER MOULDING SET, NO.1
main52791-12010
9015940148
main90159-40148
9015950311
main90159-50311
9015960431
main90159-60431
9015960507
main90159-60507
9017906274
main90179-06274
9018904014
main90189-04014
9018906013
main90189-06013
9018906066
main90189-06066
9018906123
main90189-06123
9018906150
main90189-06150
9021005006
main90210-05006
9046708185
main90467-08185
29 parts on this diagram · 3 diagrams in section
